RS PRO LIR1025 Button Battery, 3.7V, 10mm Diameter, Single
- RS Stock No.:
- 183-4283
- Brand:
- RS PRO
Subtotal (1 unit)*
£2.65
(exc. VAT)
£3.18
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 92 unit(s) ready to ship
- Plus 71 unit(s) ready to ship from another location
- Plus 999,999,907 unit(s) shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £2.65 |
*price indicative
- RS Stock No.:
- 183-4283
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Size | LIR1025 | |
Chemistry | Lithium | |
Nominal Voltage | 3.7V | |
Capacity | 6mAh | |
Terminal Type | Standard | |
Diameter | 10mm | |
Dimensions | 10 x 2.5mm | |
Number of Batteries Supplied | 1 | |
Series | LIR | |
IEC Name | LIR1025 | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Size LIR1025 | ||
Chemistry Lithium | ||
Nominal Voltage 3.7V | ||
Capacity 6mAh | ||
Terminal Type Standard | ||
Diameter 10mm | ||
Dimensions 10 x 2.5mm | ||
Number of Batteries Supplied 1 | ||
Series LIR | ||
IEC Name LIR1025 | ||
- COO (Country of Origin):
- CN

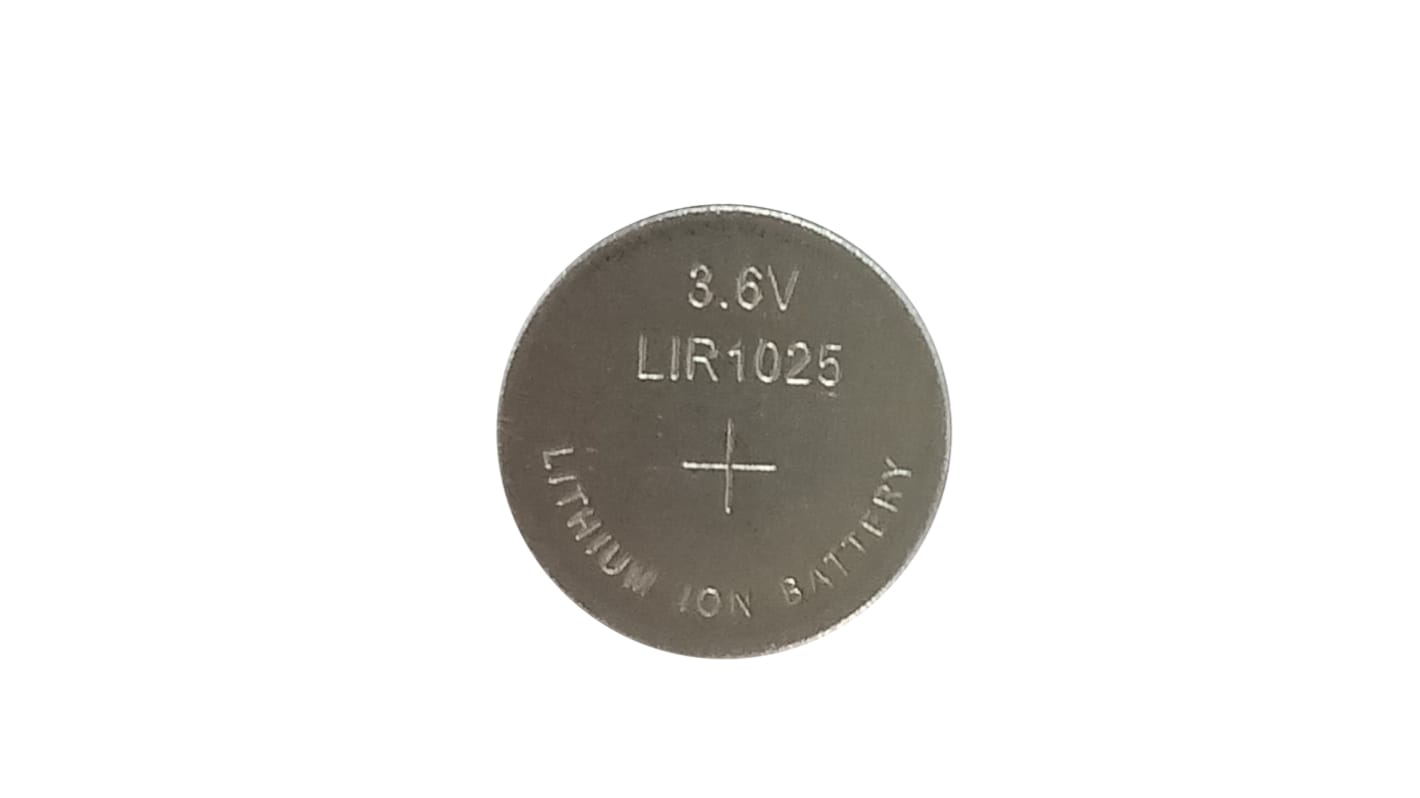

RS PRO Button Battery
The RS PRO 6mAh button battery has a size of LIR1025 and a nominal voltage of 3.7V. It has a chemical composition of Lithium-ion and a diameter of 10mm. It has a full charging voltage of 4.2V and cut -off of 2.75V.
Features and Benefits
• Cycle life is 500 cycles
• Maximum charge current of 6mA
• Maximum discharge current of 6mA
• Operating temperature ranges between 0°C and 45°C
• Maximum charge current of 6mA
• Maximum discharge current of 6mA
• Operating temperature ranges between 0°C and 45°C
Applications
• Flashlight
• Badge
• Industrial control equipment power
• LED lamp
• RTC (Real time clock modules)
• Badge
• Industrial control equipment power
• LED lamp
• RTC (Real time clock modules)
