RS PRO Button Battery, 3.7 V, 16 mm Diameter

View all Button Batteries

Subtotal (1 unit)*

£9.75

(exc. VAT)

£11.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 152 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£9.75

*price indicative

RS Stock No.:
183-4288
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Button Battery

Chemistry

Lithium

Nominal Voltage

3.7V

Battery Capacity

90mAh

Diameter

16 mm

Number of Batteries

1

Termination Type

Standard

Standards/Approvals

No

Weight

2.8g

IEC Code

Lir1654H

Series

LIR

COO (Country of Origin):
CN

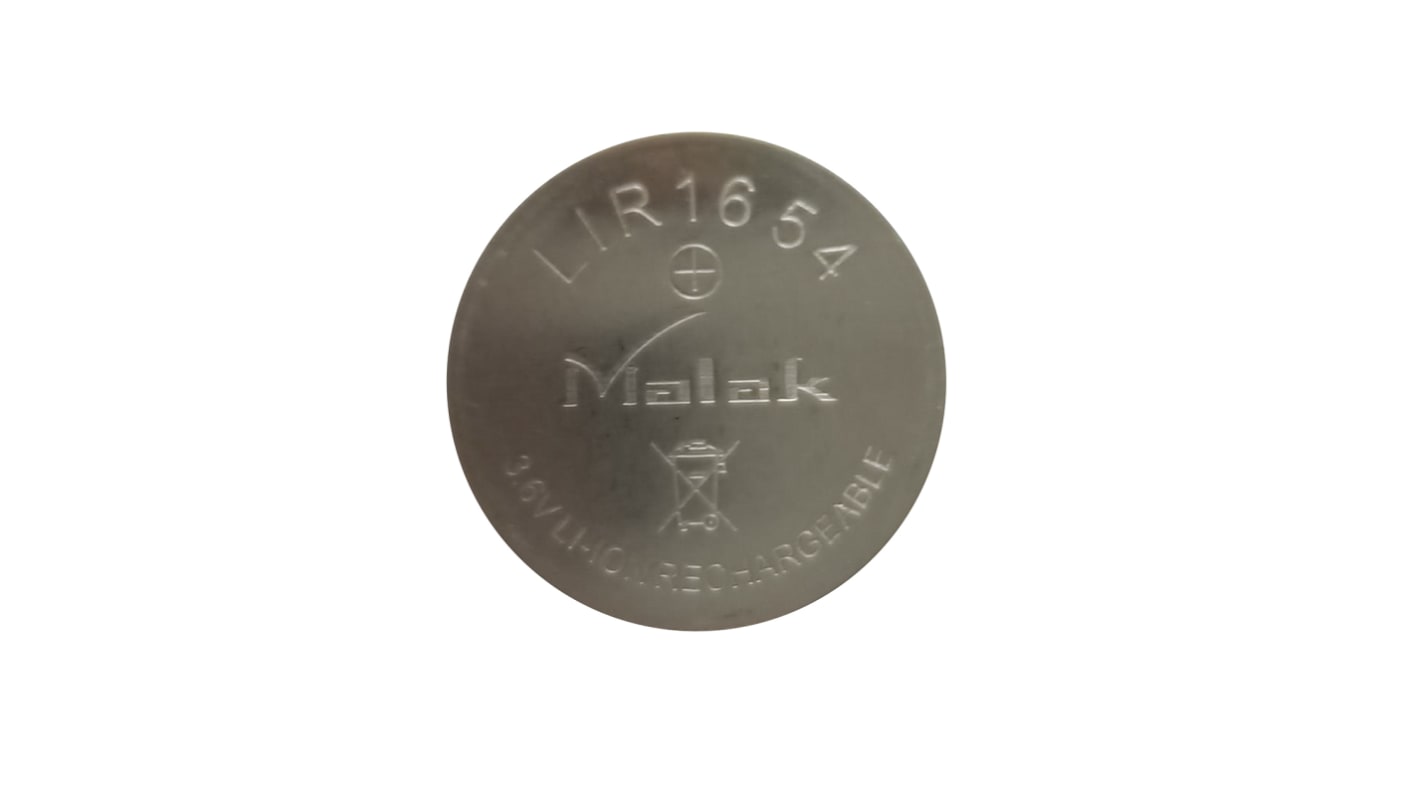

RS PRO Button Battery


The RS PRO 90mAh button battery has a size of LIR1654H and a nominal voltage of 3.7V. It has a chemical composition of Lithium-ion and a diameter of 16mm. It has a full charging voltage of 4.2V and cut -off of 2.75V.

Features and Benefits


• Cycle life is 500 cycles

• Maximum charge current of 90mA

• Maximum discharge current of 90mA

• Operating temperature ranges between 0°C and 45°C

Applications


• Flashlight

• Badge

• Industrial control equipment power

• LED lamp

• RTC (Real time clock modules)
