TE Connectivity, 170020 Uninsulated Crimp Bullet Connector, 20 AWG to 14 AWG, 4 mm Bullet diameter Male
- RS Stock No.:
- 174-3147
- Distrelec Article No.:
- 304-63-103
- Mfr. Part No.:
- 170020-3
- Brand:
- TE Connectivity
Subtotal (1 bag of 1000 units)*
£84.80
(exc. VAT)
£101.76
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 23 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £84.80 | £0.085 |
*price indicative
- RS Stock No.:
- 174-3147
- Distrelec Article No.:
- 304-63-103
- Mfr. Part No.:
- 170020-3
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Crimp Bullet Connector | |
| Series | 170020 | |
| Insulation | Uninsulated | |
| Overall Length | 18mm | |
| Gender | Male | |
| Minimum Wire Size AWG | 20AWG | |
| Minimum Wire Size mm² | 0.5mm² | |
| Maximum Wire Size AWG | 14AWG | |
| Maximum Wire Size mm² | 2.27mm² | |
| Bullet Diameter | 4mm | |
| Contact Material | Brass Copper Alloy | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Crimp Bullet Connector | ||
Series 170020 | ||
Insulation Uninsulated | ||
Overall Length 18mm | ||
Gender Male | ||
Minimum Wire Size AWG 20AWG | ||
Minimum Wire Size mm² 0.5mm² | ||
Maximum Wire Size AWG 14AWG | ||
Maximum Wire Size mm² 2.27mm² | ||
Bullet Diameter 4mm | ||
Contact Material Brass Copper Alloy | ||
Standards/Approvals RoHS | ||

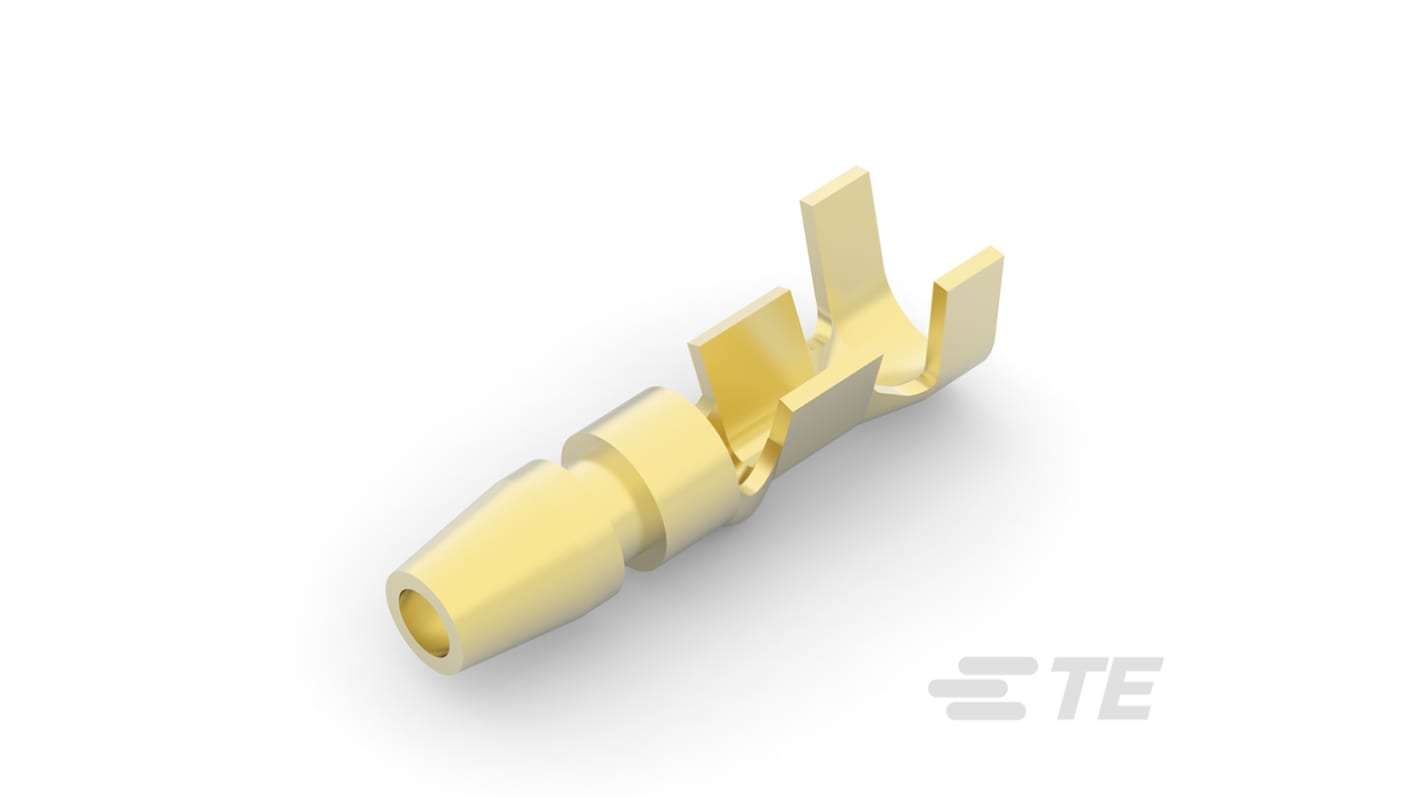

The TE Connectivity shur plug uninsulated male crimp bullet connector has 4mm pin diameter with brass and copper alloy contact material.
Shur-plug crimp wire pin, tab & ferrule terminal
Open barrel
Unplated terminal plating material
straight terminal orientation
wire insulation support
uninsulated insulation requirement
