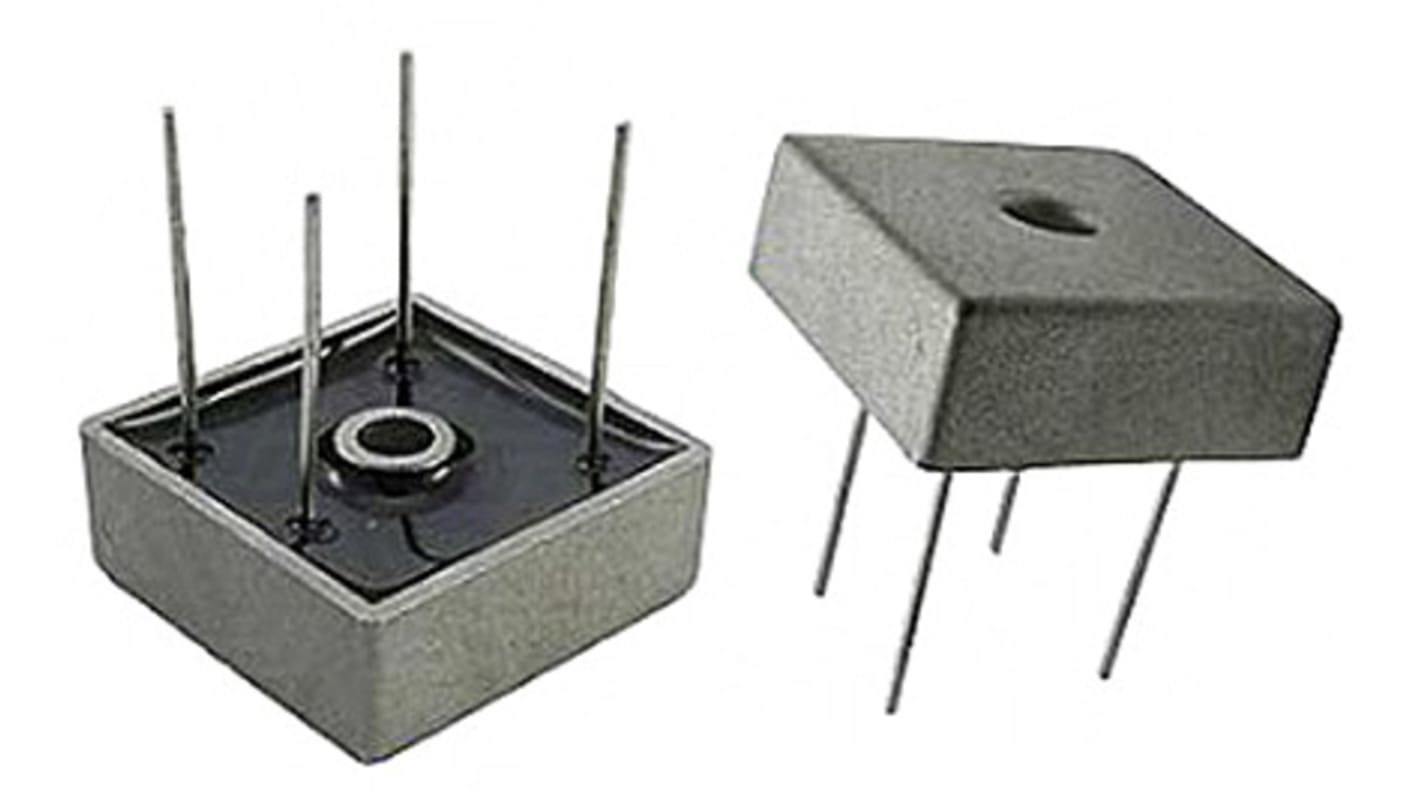

HY Electronic Corp Bridge Rectifier, 50A, 600V, 4-Pin
- RS Stock No.:
- 917-8985
- Mfr. Part No.:
- KBPC5006W
- Brand:
- HY Electronic Corp
140 In stock - FREE next working day delivery available
30 available from Europe for delivery within 2 working day(s).
Price Each (In a Pack of 10)
£3.336
(exc. VAT)
£4.003
(inc. VAT)
Units | Per unit | Per Pack* |
---|---|---|
10 - 20 | £3.336 | £33.36 |
30 - 50 | £3.246 | £32.46 |
60 - 110 | £3.163 | £31.63 |
120 - 230 | £3.079 | £30.79 |
240 + | £3.002 | £30.02 |
*price indicative
- RS Stock No.:
- 917-8985
- Mfr. Part No.:
- KBPC5006W
- Brand:
- HY Electronic Corp
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Bridge Rectifier - KBPC Series
The KBPC family of silicon bridge rectifiers has a reverse voltage of 600 V or 1000 V. The rectifiers offer different forward currents ranging from 15A to 50 A. There are two types available, the KBPC W and the KBPC series which comes with 0.25 in solder FAST ON terminals. They are used in AC to DC conversion and in printed circuit applications.
Surge overload: -240 A to 500 A peaks
Electrically isolated base -2000 V
Low forward voltage drop
Material: U/L recognition
Solder 0.25 FAST ON terminals (KBPC only)
Electrically isolated base -2000 V
Low forward voltage drop
Material: U/L recognition
Solder 0.25 FAST ON terminals (KBPC only)
Bridge Rectifiers - HY Electronic (Cayman) Limited
Specifications
Attribute | Value |
---|---|
Peak Average Forward Current | 50A |
Bridge Type | Single Phase |
Peak Reverse Repetitive Voltage | 600V |
Mounting Type | Through Hole |
Package Type | KBPC W |
Pin Count | 4 |
Diode Technology | Silicon Junction |
Diode Type | Silicon Junction |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 500A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1.1V |
Peak Reverse Current | 10µA |
Length | 28.8mm |
Dimensions | 28.8 x 28.8 x 11.23mm |
Height | 11.23mm |
Width | 28.8mm |
