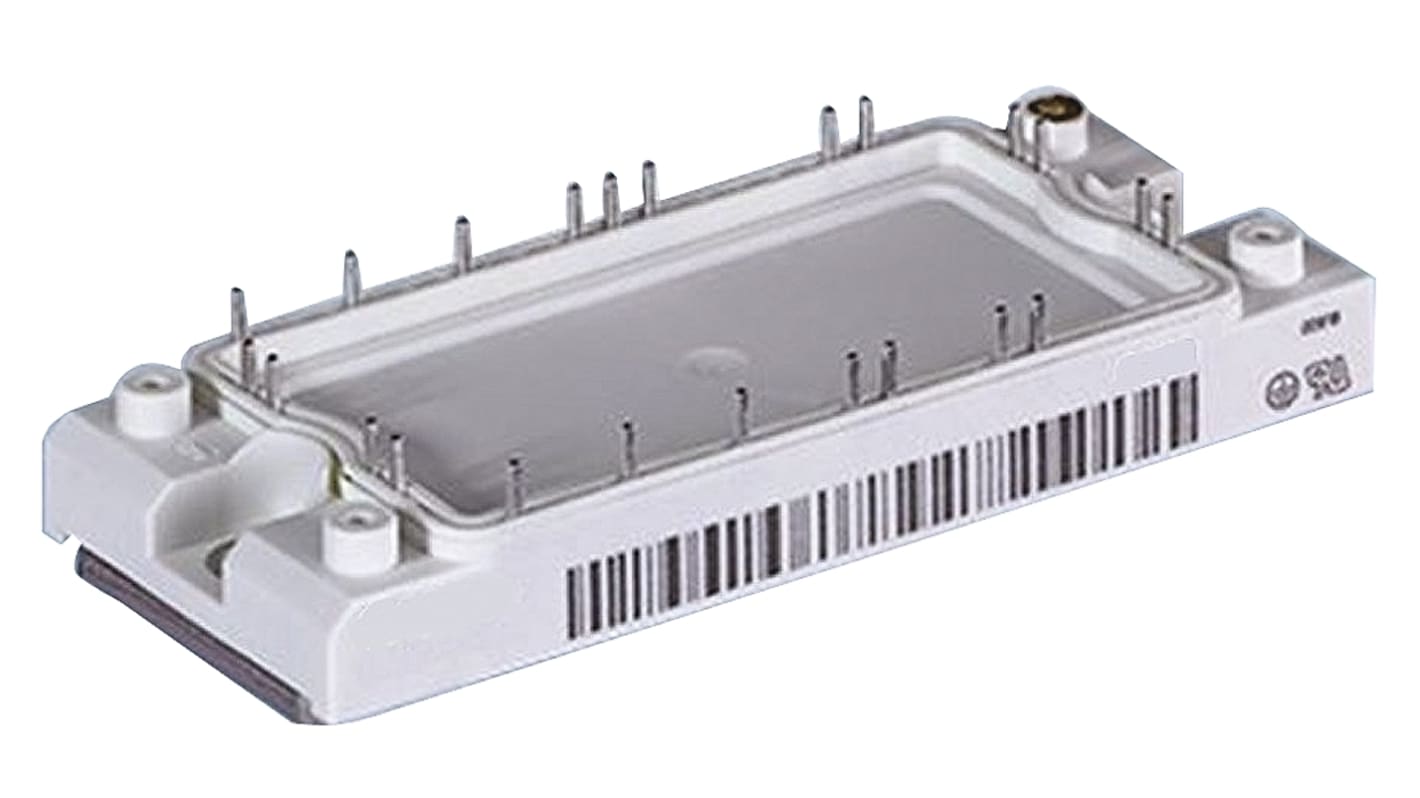

Infineon Bridge Rectifier Module, 1600 V 650 A, 17-Pin Single Plus IGBT

View all Bridge Rectifiers
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
839-1105
Mfr. Part No.:
DDB6U100N16RRBOSA1
Brand:
Infineon
Find similar products by selecting one or more attributes.
Select all

Brand

Infineon

Product Type

Bridge Rectifier Module

Peak Reverse Repetitive Voltage Vrrm

1600V

Mount Type

Surface

Number of Phases

3

Pin Count

17

Configuration

Single Plus IGBT

Maximum Operating Temperature

150°C

Peak Non-Repetitive Forward Surge Current Ifsm

650A

Minimum Operating Temperature

-40°C

Forward Current If

100A

Peak Forward Voltage Vf

1.55V

Peak Reverse Current Ir

5mA

Length

107.5mm

Standards/Approvals

No

Series

DDB6U100N16RR

Height

17mm

Width

45 mm

Automotive Standard

No

3-Phase Bridge Rectifier Module, DDB6U Series, Infineon


The Infineon Three Phase Bridge Rectifiers Eupec™ EconoBRIDGE™ and EasyBRIDGE have a solder pin assembly and the eupec™ IsoPACK™ series has screw load terminals. The rectifier module range supports Diode Bridges and bridges with Brake Chopper as well as brake chopper and NTC resistor versions. This compact converter will cover 25A to 205A at 1600 volts.

Diode Bridge modules:

EconoBRIDGE™

IsoPACK™

EasyBRIDGE 1

EasyBRIDGE 750

IsoPACK™ Module with screwable power terminals

Bridge Rectifiers - Infineon


A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
