- RS Stock No.:
- 395-4281
- Mfr. Part No.:
- VS-GBPC2508W
- Brand:
- Vishay
42 In stock - FREE next working day delivery available
2 available from Europe for delivery within 1 working day(s).
Added
Price Each
£5.77
(exc. VAT)
£6.92
(inc. VAT)
Units | Per unit |
1 - 9 | £5.77 |
10 - 24 | £5.60 |
25 - 49 | £5.48 |
50 - 99 | £5.25 |
100 + | £4.96 |
- RS Stock No.:
- 395-4281
- Mfr. Part No.:
- VS-GBPC2508W
- Brand:
- Vishay
Legislation and Compliance
Product Details

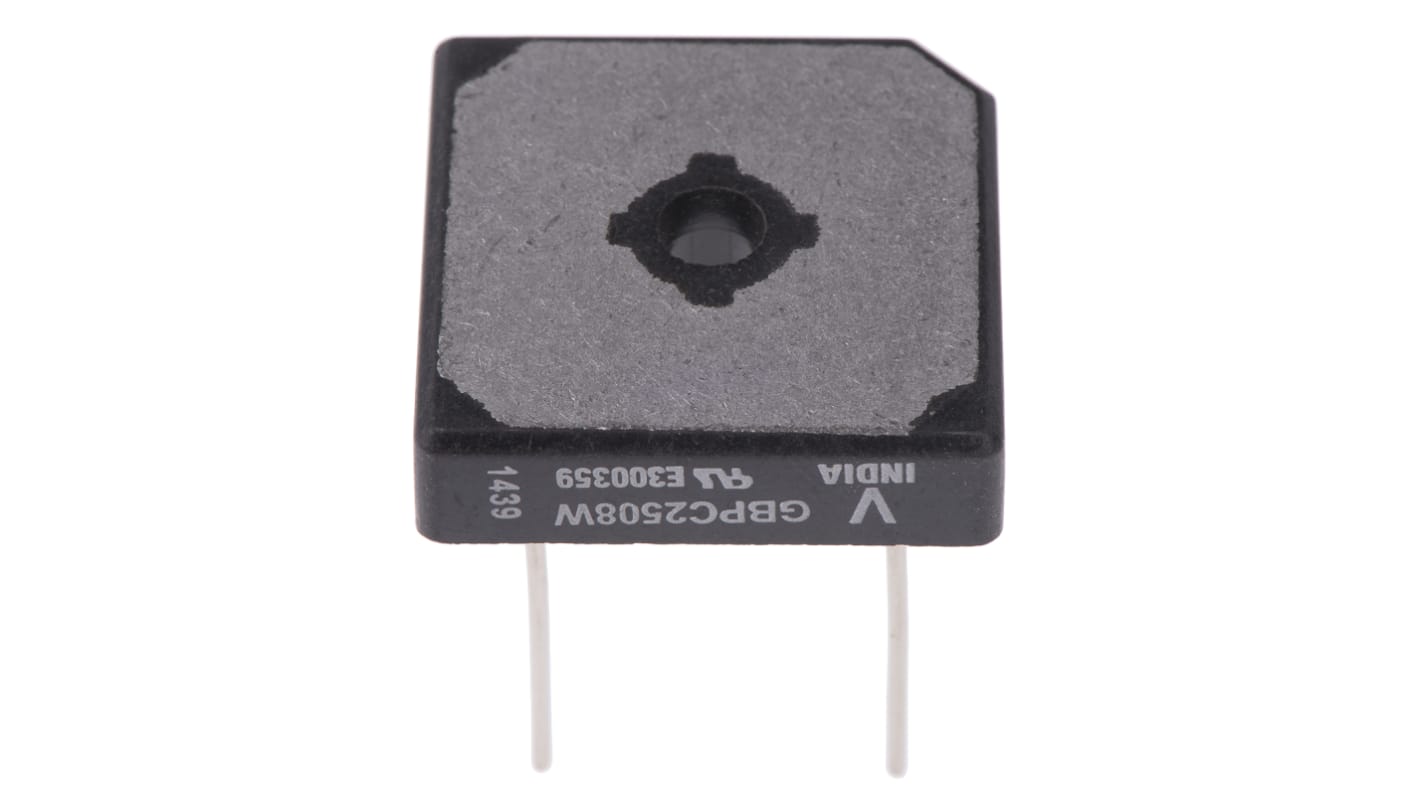

Bridge Rectifiers for PCB Mounting, VS-GBPC25xxW Series, Vishay Semiconductor
Suitable for Printed Circuit Board (PCB) or chassis mounting
Compact construction with center hole fixing
Low thermal resistance
Wire lead structure
Compact construction with center hole fixing
Low thermal resistance
Wire lead structure
Approvals
UL E54214
Bridge Rectifiers - Vishay Semiconductor
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.
Specifications
Attribute | Value |
---|---|
Bridge Type | Single Phase |
Peak Average Forward Current | 25A |
Peak Reverse Repetitive Voltage | 800V |
Mounting Type | Through Hole |
Package Type | GBPC-W |
Pin Count | 4 |
Configuration | Single |
Peak Non-Repetitive Forward Surge Current | 300A |
Maximum Operating Temperature | +150 °C |
Minimum Operating Temperature | -55 °C |
Peak Forward Voltage | 1.1V |
Peak Reverse Current | 5µA |
Length | 28.8mm |
Dimensions | 28.8 x 28.8 x 7.62mm |
Width | 28.8mm |
Height | 7.62mm |
