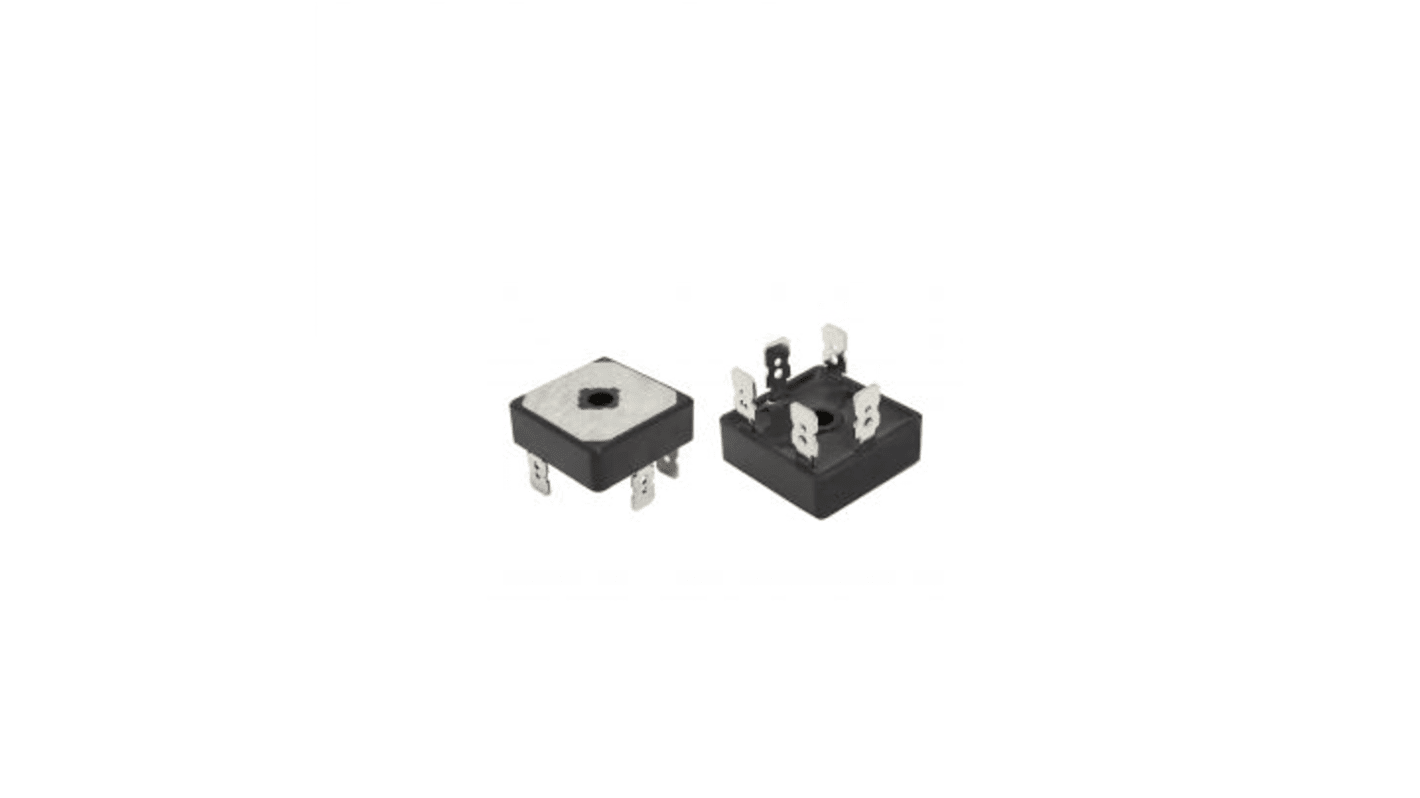

Vishay Bridge Rectifier, 800 V 500 A, 5-Pin Single
- RS Stock No.:
- 178-0778
- Mfr. Part No.:
- VS-36MT80
- Brand:
- Vishay
Bulk discount available
View bulk pricing optionsSubtotal (1 box of 20 units)*
£182.80
(exc. VAT)
£219.40
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 20 unit(s) shipping from 06 August 2026
- Plus 20 unit(s) shipping from 04 December 2026
- Plus 80 unit(s) shipping from 18 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 20 - 20 | £9.14 | £182.80 |
| 40 + | £8.683 | £173.66 |
*price indicative
- RS Stock No.:
- 178-0778
- Mfr. Part No.:
- VS-36MT80
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Bridge Rectifier | |
| Peak Reverse Repetitive Voltage Vrrm | 800V | |
| Mount Type | Through Hole | |
| Package Type | D-63 | |
| Number of Phases | 3 | |
| Pin Count | 5 | |
| Configuration | Single | |
| Maximum Operating Temperature | 150°C | |
| Forward Current If | 35A | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 500A | |
| Minimum Operating Temperature | -55°C | |
| Peak Forward Voltage Vf | 1.19V | |
| Height | 10mm | |
| Length | 28.5mm | |
| Peak Reverse Current Ir | 200μA | |
| Series | VS-36MT | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Bridge Rectifier | ||
Peak Reverse Repetitive Voltage Vrrm 800V | ||
Mount Type Through Hole | ||
Package Type D-63 | ||
Number of Phases 3 | ||
Pin Count 5 | ||
Configuration Single | ||
Maximum Operating Temperature 150°C | ||
Forward Current If 35A | ||
Peak Non-Repetitive Forward Surge Current Ifsm 500A | ||
Minimum Operating Temperature -55°C | ||
Peak Forward Voltage Vf 1.19V | ||
Height 10mm | ||
Length 28.5mm | ||
Peak Reverse Current Ir 200μA | ||
Series VS-36MT | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Vishay single phase bridge is extremely compact, encapsulated single phase bridge rectifiers offering efficient and reliable operation. They are intended for use in general purpose and instrumentation applications.
Centre hole fixing
Excellent power/volume ratio
Temperature range - 55 to 150°C
