IXYS Bridge Rectifier Module, 40A, 1200V, 4-Pin

View all Bridge Rectifiers

Subtotal (1 box of 10 units)*

£197.94

(exc. VAT)

£237.53

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 180 unit(s) ready to ship
  • Plus 40 unit(s) shipping from 26 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
10 +£19.794£197.94

*price indicative

RS Stock No.:
168-4454
Mfr. Part No.:
VBO40-12NO6
Brand:
IXYS
Find similar products by selecting one or more attributes.
Select all

Brand

IXYS

Peak Average Forward Current

40A

Bridge Type

Single Phase

Peak Reverse Repetitive Voltage

1200V

Mounting Type

Panel Mount

Package Type

SOT-227B

Pin Count

4

Diode Technology

Silicon Junction

Configuration

Single

Peak Non-Repetitive Forward Surge Current

320A

Maximum Operating Temperature

+150 °C

Minimum Operating Temperature

-40 °C

Peak Forward Voltage

1.15V

Peak Reverse Current

300µA

Length

38.3mm

Dimensions

38.3 x 25.07 x 9.6mm

Width

25.07mm

Height

9.6mm

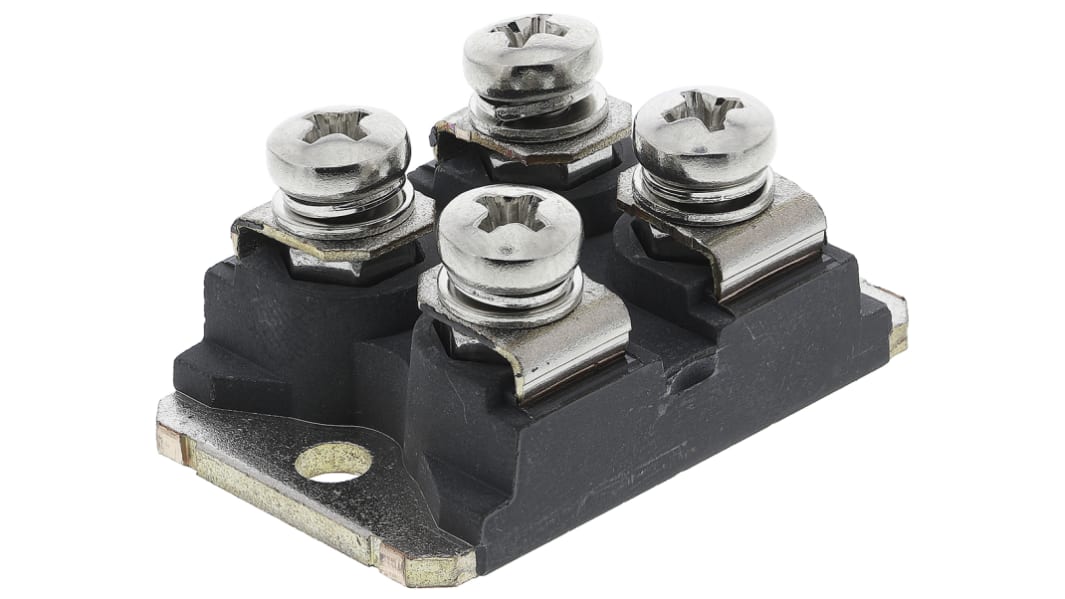

Bridge Rectifier Module with Screw Terminals, VBO40 Series, IXYS


Package with Direct Copper Bonding (DCB) isolated
Very low leakage current
Very low forward voltage drop
Improved thermal behaviour

Approvals

UL E72873


Bridge Rectifiers - IXYS


A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
