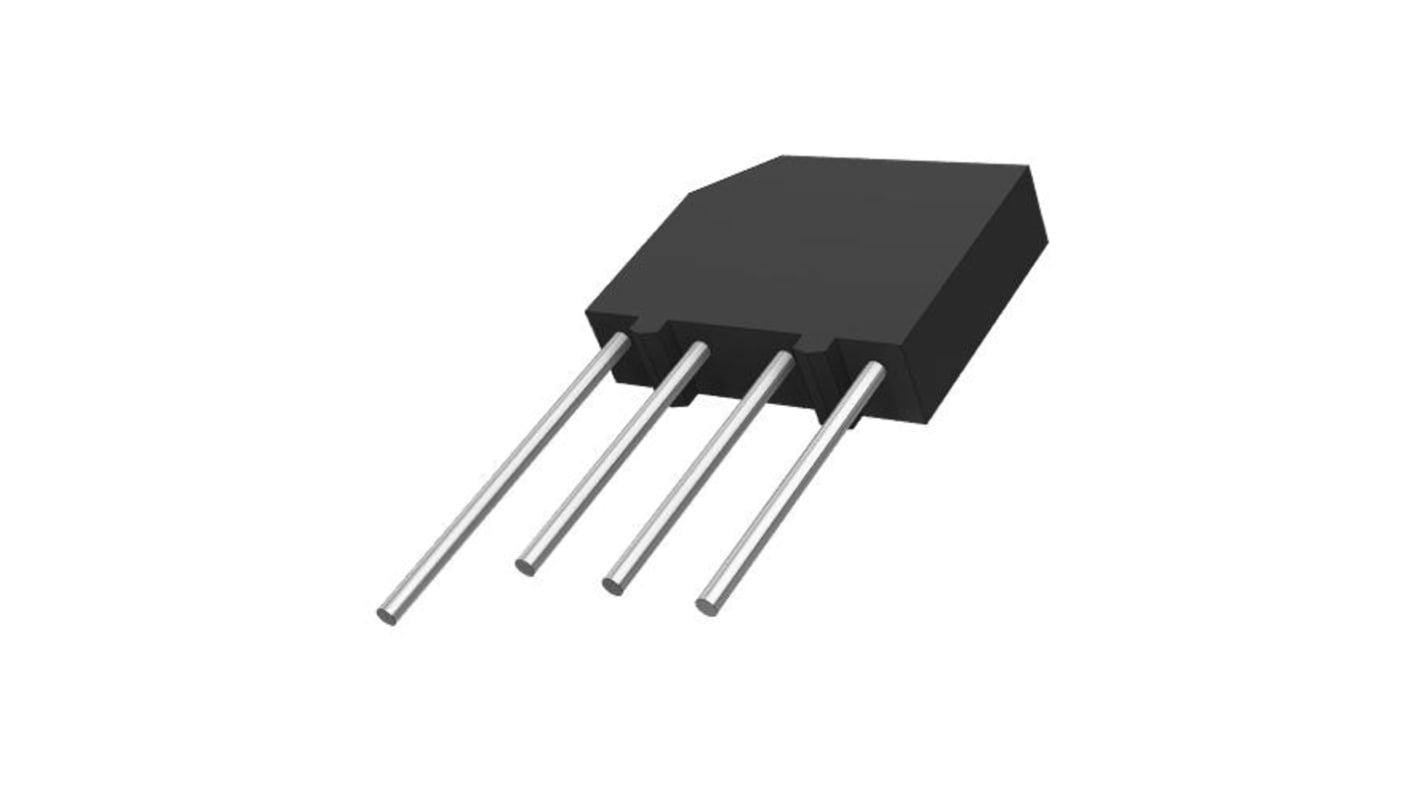

HY Electronic Corp TBP210G, Bridge Rectifier, 2A 1000V, 4-Pin TBP


700 In stock - FREE next working day delivery available
Add to Basket

Price Each (In a Box of 700)

£0.089

(exc. VAT)

£0.107

(inc. VAT)

Units

Added

RS Stock No.:
146-2212
Mfr. Part No.:
TBP210G
Brand:
HY Electronic Corp
COO (Country of Origin):
CN
UnitsPer unitPer Box*
700 +£0.089£62.30
*price indicative

Bridge Rectifier - TBP Series


The TBP series of bridge rectifiers are glass passivated version with 2 A forward current and 600 V or 1000 VRRM. The HY Electronic (Cayman) Limited rectifier has a surge overload of -60 A and the plastic material has a UL Classification. It can be mounted on the PCB in any position and it transforms alternating current (AC) into direct current (DC).


Flammability classification UL94V-0


Bridge Rectifiers - HY Electronic (Cayman) Limited

AttributeValue
Peak Average Forward Current2A
Bridge TypeSingle Phase
Peak Reverse Repetitive Voltage1000V
Mounting TypeThrough Hole
Package TypeTBP
Pin Count4
Diode TypeSilicon Junction
Diode TechnologySilicon Junction
ConfigurationSingle
Peak Non-Repetitive Forward Surge Current60A
Maximum Operating Temperature+150 °C
Minimum Operating Temperature-55 °C
Peak Forward Voltage1.1V
Peak Reverse Current10µA
Length15.24mm
Width3.9mm
Height11.68mm
Dimensions15.24 x 3.9 x 11.68mm
