Bulk discount available
Subtotal (1 unit)*
£5.65
(exc. VAT)
£6.78
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 200 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £5.65 |
| 10 - 49 | £3.50 |
| 50 - 99 | £2.01 |
| 100 + | £1.96 |
*price indicative
- RS Stock No.:
- 557-135
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Type | Prototype Board | |
| Length | 210mm | |
| Width | 150mm | |
| Height | 1.6mm | |
| Dimensions | 210 x 150 x 1.6mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Type Prototype Board | ||
Length 210mm | ||
Width 150mm | ||
Height 1.6mm | ||
Dimensions 210 x 150 x 1.6mm | ||
- COO (Country of Origin):
- CN

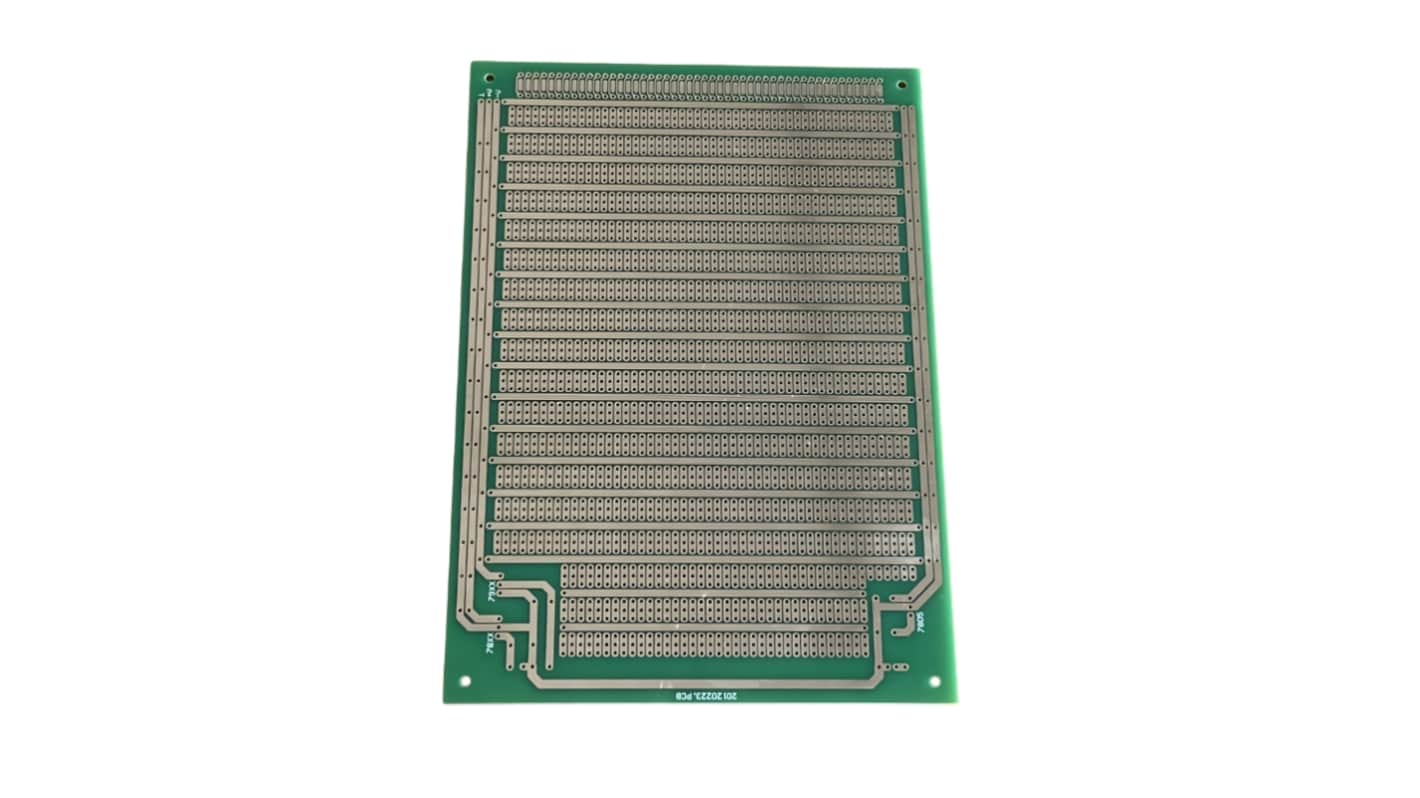

RS PRO Prototype Board, 210mm x 150mm, FR4 Laminate
The RS PRO Prototype Board is designed for creating and testing electronic circuits efficiently. With its high-quality FR4 laminate and reliable construction, this board is ideal for engineers and hobbyists looking to prototype their designs quickly and effectively.
Features and Benefits
Pitch: 2.54mm: Standard pitch for easy component placement and compatibility with common electronic components.
Length: 210mm: Provides ample space for complex circuit designs and multiple components.
Width: 150mm: Offers a compact yet spacious area for prototyping various electronic circuits.
Thickness: 1.6mm: Ensures durability and stability during circuit assembly and testing.
Layer base copper: 1OZ: Provides excellent conductivity and reliability for electronic connections.
Laminate: FR4: High-quality material known for its strength and resistance to heat and moisture.
Solder Mask Colour: Green: Protects the copper traces and enhances the board's durability.
Legend Colour: White: Offers clear visibility of component placement and circuit paths.
High-Quality PCB and Reliable: Ensures long-lasting performance and dependable prototyping results.
Length: 210mm: Provides ample space for complex circuit designs and multiple components.
Width: 150mm: Offers a compact yet spacious area for prototyping various electronic circuits.
Thickness: 1.6mm: Ensures durability and stability during circuit assembly and testing.
Layer base copper: 1OZ: Provides excellent conductivity and reliability for electronic connections.
Laminate: FR4: High-quality material known for its strength and resistance to heat and moisture.
Solder Mask Colour: Green: Protects the copper traces and enhances the board's durability.
Legend Colour: White: Offers clear visibility of component placement and circuit paths.
High-Quality PCB and Reliable: Ensures long-lasting performance and dependable prototyping results.
Applications
Electronics prototyping
Circuit design and testing
Educational projects
Hobbyist electronics
Circuit design and testing
Educational projects
Hobbyist electronics
Additional Information
Reaction to fire EN 13501-6
FR4 Laminate
RoHS and REACH compliant
FR4 Laminate
RoHS and REACH compliant
Laminate Material: FR4 is widely used in the electronics industry for its excellent mechanical and electrical properties.
