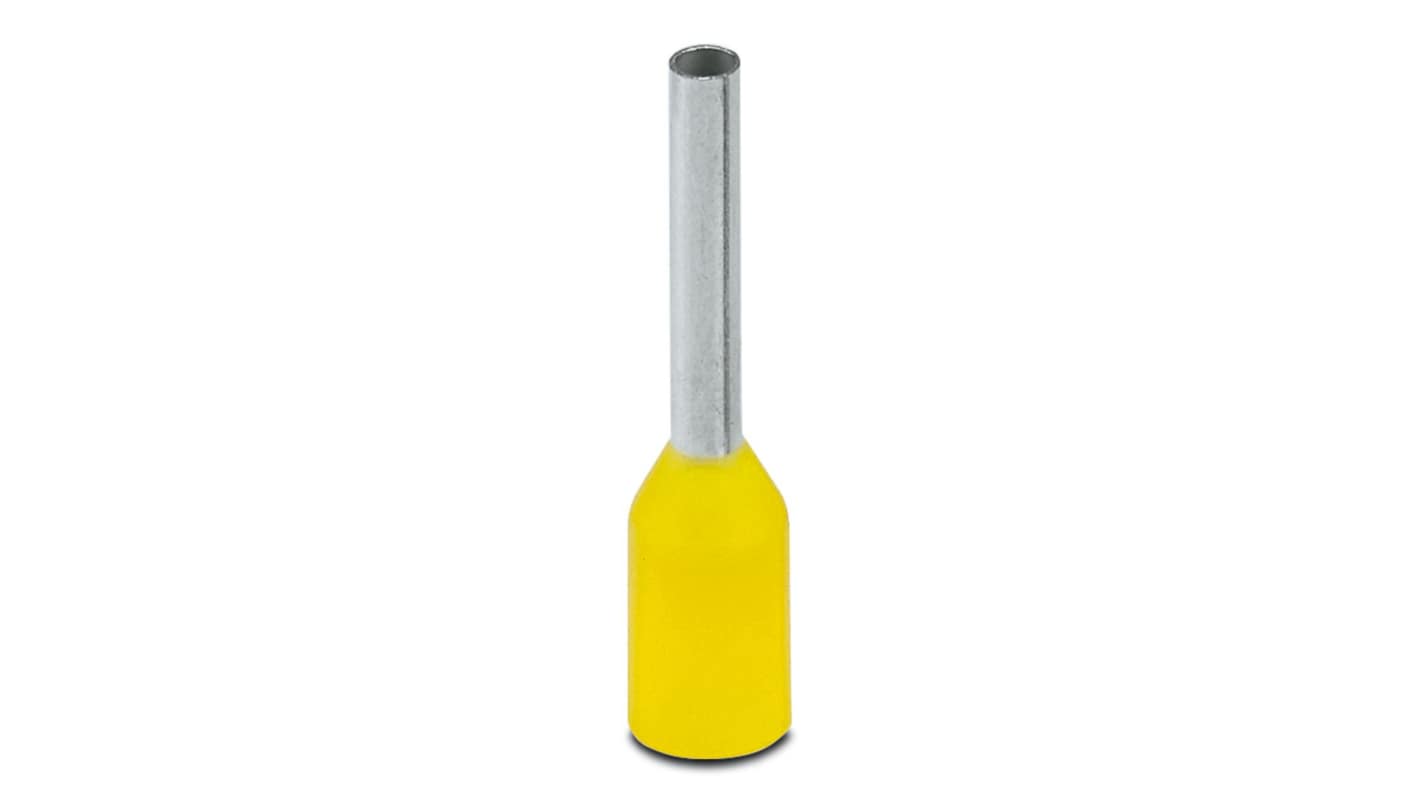

Phoenix Contact, AI0.25- 6 YE Insulated Ferrule, 6mm Pin Length, 0.8mm Pin Diameter, 0.25mm² Wire Size, Yellow

RS Stock No.:: 804-6934
Mfr. Part No.:: 3203024
Brand:: Phoenix Contact

Phoenix Contact, AI0.25- 6 YE Insulated Ferrule, 6mm Pin Length, 0.8mm Pin Diameter, 0.25mm² Wire Size, Yellow

Bulk discount available

Price Each (In a Pack of 100)**

£0.039

(exc. VAT)

£0.047

(inc. VAT)

3700 In stock - FREE next working day delivery available*

12000 available from Europe for delivery within 2 working day(s).

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit	Per Pack**
100 - 400	£0.039	£3.90
500 - 2400	£0.036	£3.60
2500 - 4900	£0.035	£3.50
5000 - 9900	£0.034	£3.40
10000 +	£0.033	£3.30

**price indicative

RS Stock No.:: 804-6934
Mfr. Part No.:: 3203024
Brand:: Phoenix Contact

Ferrule - AI 0,25- 6 YE

Insulated Bootlace Ferrules AI Series - Phoenix Contact

Phoenix contact provides you with a range of great insulated ferrules that can be crimped onto the end of a cable or wire to give your connection more stability and prevention from fraying. These bootlace crimp ferrules are made from a soft tin-plated electrolytic copper and have a soft plastic cover to further enhance the connection and prevention of fraying. Designed with safety in mind, they're free from any silicone and halogen.

Features and benefits:

Insulatedrevent splicing of wires to ensure a stable connection over the long term

No need for soldering, a crimping tool is all that is required to fit the ferrules (see below for tools)

Reliability of close connections is massively increased

Maximum operating temperature of 105°C so can be used in harsh conditions

How to crimp a bootlace ferrule?

Ferrules are simple and easy to install. Firstly, they're mounted to the end of a stripped cable and are simply compressed onto the cable (typically with a tool) to form a tight and sturdy fit onto a cable. Once they're crimped onto the cable, give a gentle tug to ensure it is tight. Once you're sure it is tight, you can then proceed to mate your wire with connector.

What are bootlace ferrules used for?

Bootlace ferrules are used to help prevent the cable splicing or fraying when a connection is made. Typically the terminal blocks use a screw-connection, so if you have a bootlace ferrule mounted on your wire, this allows the screw to make a better bond rather than a few strands of metal cable. Not to mention, installing a bootlace ferrule ensures your connection is easier to install and remove.

Compatible hand tools:

Plier Crimper - 0.25mm² to 6mm²: 803-4405

Plier Crimper - 0.5mm² to 6mm²: 803-4427

Plier Crimper - 0.25mm² to 6mm²: 803-4411

Plier Crimper - 0.14mm² to 10mm²: 803-4420

Phoenix Contact AI0.25- 6 YE Series Ferrule, Plastic Insulation, 10.5mm Overall Length - 3203024

This ferrule is essential for ensuring dependable electrical connections. It is designed for easy wire termination and plays a critical role in various electrical and automation applications. With its insulated design and high-quality materials, the ferrule improves safety and performance in intricate wiring tasks.

Features & Benefits

• Insulated design enhances safety during operation
• Tin plating offers corrosion resistance for durability
• Compatible with 24 AWG wire for diverse Applications
• Single entry point simplifies installation and wiring
• Bright yellow colour allows for easy identification

Applications

• Securing connections in automation systems
• Ideal for use in control panels and electrical cabinets
• Suitable for connecting wiring in mechanical devices
• Employed in various electrical components needing secure terminations

What is the maximum wire size that can be accommodated?

It can accommodate wires up to 0.25mm², ensuring secure terminations.

What type of wire can be used with this connector?

It is compatible with 24 AWG wires, suitable for various applications.

How does the colour aid in usage?

The bright yellow colour allows for quick identification within wiring systems.
