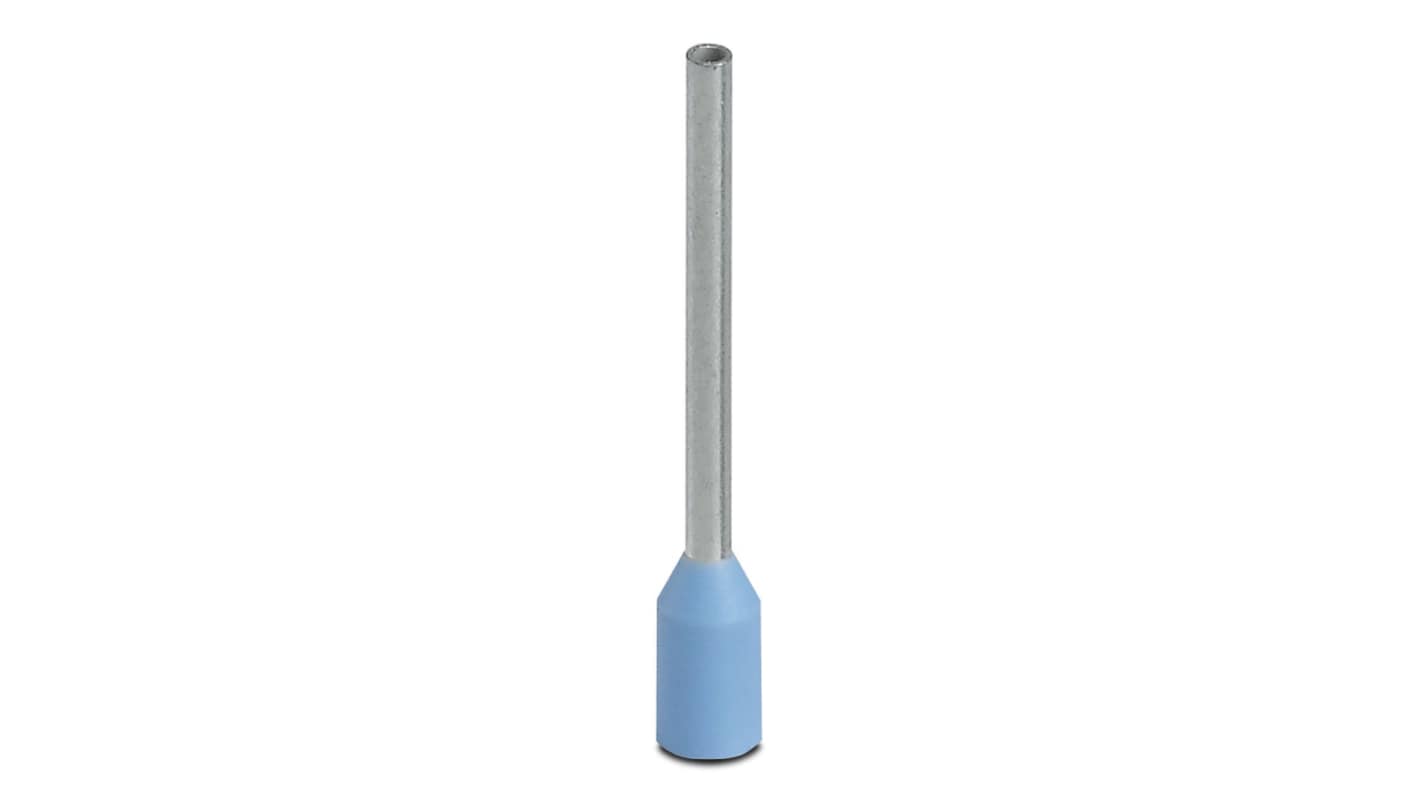

Phoenix Contact, AI0.25-12 BU Insulated Crimp Bootlace Ferrule, 12mm Pin Length, 0.8mm Pin Diameter, 0.25mm² Wire Size,

View all Bootlace Ferrules
Bulk discount available

Subtotal (1 pack of 100 units)*

£56.70

(exc. VAT)

£68.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5,200 unit(s) ready to ship
  • Plus 1,900 unit(s) ready to ship from another location
  • Plus 999,994,700 unit(s) shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
100 - 400£0.567£56.70
500 - 2400£0.482£48.20
2500 - 4900£0.40£40.00
5000 - 9900£0.388£38.80
10000 +£0.377£37.70

*price indicative

RS Stock No.:
804-6805
Distrelec Article No.:
304-08-954
Mfr. Part No.:
3200632
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Maximum Wire Size mm²

0.25mm²

Pin Diameter

0.8mm

Number of Entries

1

Insulation Material

Plastic

Colour

Blue

Pin Length

12mm

Insulation

Insulated

Maximum Wire Size AWG

23AWG

Overall Length

16.5mm

Series

AI0.25-12 BU

COO (Country of Origin):
DE

Phoenix Contact AI0.25-12 BU Series Crimp Bootlace Ferrule, 0.25mm² Maximum Wire size (mm²), 16.5mm Overall Length - 3200632


This Phoenix Contact AI 0.25-12 BU Ferrule is an insulated ferrule designed for reliable wire terminations. With a 12mm sleeve length and 16.5mm overall length, it accommodates wires with a pin diameter of 0.8mm and supports sizes up to 0.25mm² or 23AWG.

Features & Benefits


• Blue colour for easy identification
• Accepts flexible conductors up to 0.25mm²
• Complies with DIN 46228-4 standards
• Tin-plated coating for enhanced conductivity and corrosion resistance
• Insulating collar for safety against accidental contact
• Lightweight design reduces impact on assembly

Applications


• Connecting flexible wires in control panels
• Terminating conductors in automation systems
• Suitable for electrical and mechanical applications
• Wiring harnesses for compact components

Can it handle different conductor sizes?


Yes, it can also process 0.14mm² conductors.

Is it suitable for high temperature environments?


It withstands permanent temperatures up to 105°C.
