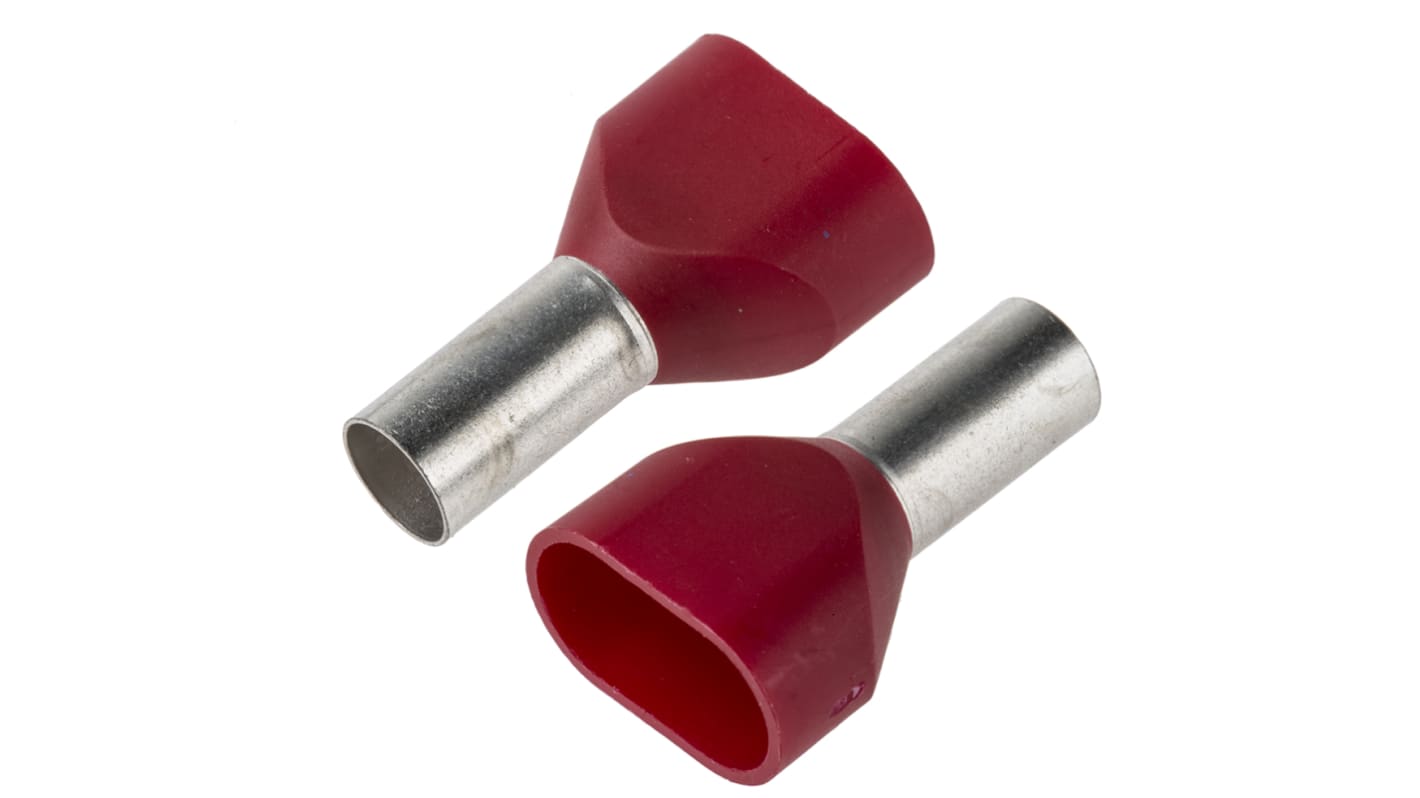

JST, TWE Insulated Crimp Bootlace Ferrule, 12mm Pin Length, 5.8mm Pin Diameter, 2 x 10mm² Wire Size, Red
- RS Stock No.:
- 190-3498
- Mfr. Part No.:
- TWE10-12
- Brand:
- JST
Subtotal (1 bag of 500 units)*
£217.00
(exc. VAT)
£260.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
500 + | £0.434 | £217.00 |
*price indicative
- RS Stock No.:
- 190-3498
- Mfr. Part No.:
- TWE10-12
- Brand:
- JST
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | JST | |
Maximum Wire Size mm² | 2 x 10mm² | |
Pin Diameter | 5.8mm | |
Insulation Material | PP | |
Number of Entries | 2 | |
Colour | Red | |
Pin Length | 12mm | |
Insulation | Insulated | |
Maximum Wire Size AWG | 2 x 8AWG | |
Overall Length | 24mm | |
Series | TWE | |
Select all | ||
---|---|---|
Brand JST | ||
Maximum Wire Size mm² 2 x 10mm² | ||
Pin Diameter 5.8mm | ||
Insulation Material PP | ||
Number of Entries 2 | ||
Colour Red | ||
Pin Length 12mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 2 x 8AWG | ||
Overall Length 24mm | ||
Series TWE | ||
JST Twin Entry Insulated Bootlace Ferrule Crimp Terminals
A range of industrial standard insulated bootlace ferrule crimp terminals with a twin cable entry. These insulated bootlace ferrule crimp terminals are made from oxygen free copper which is both robust and highly conductive with excellent mechanical and electrical characteristics. The terminals are then electroplated with tin and treated by a special process developed by JST. This method ensures that there is maximum adhesion of the electroplating, reduces electrical resistance and increases resistance to corrosion. The insulation of these bootlace crimp ferrules is made from polypropylene with excellent flame resistance and insulation properties. These insulated bootlace crimp ferrules are available in various wire sizes.
JST Bootlace Ferrules
