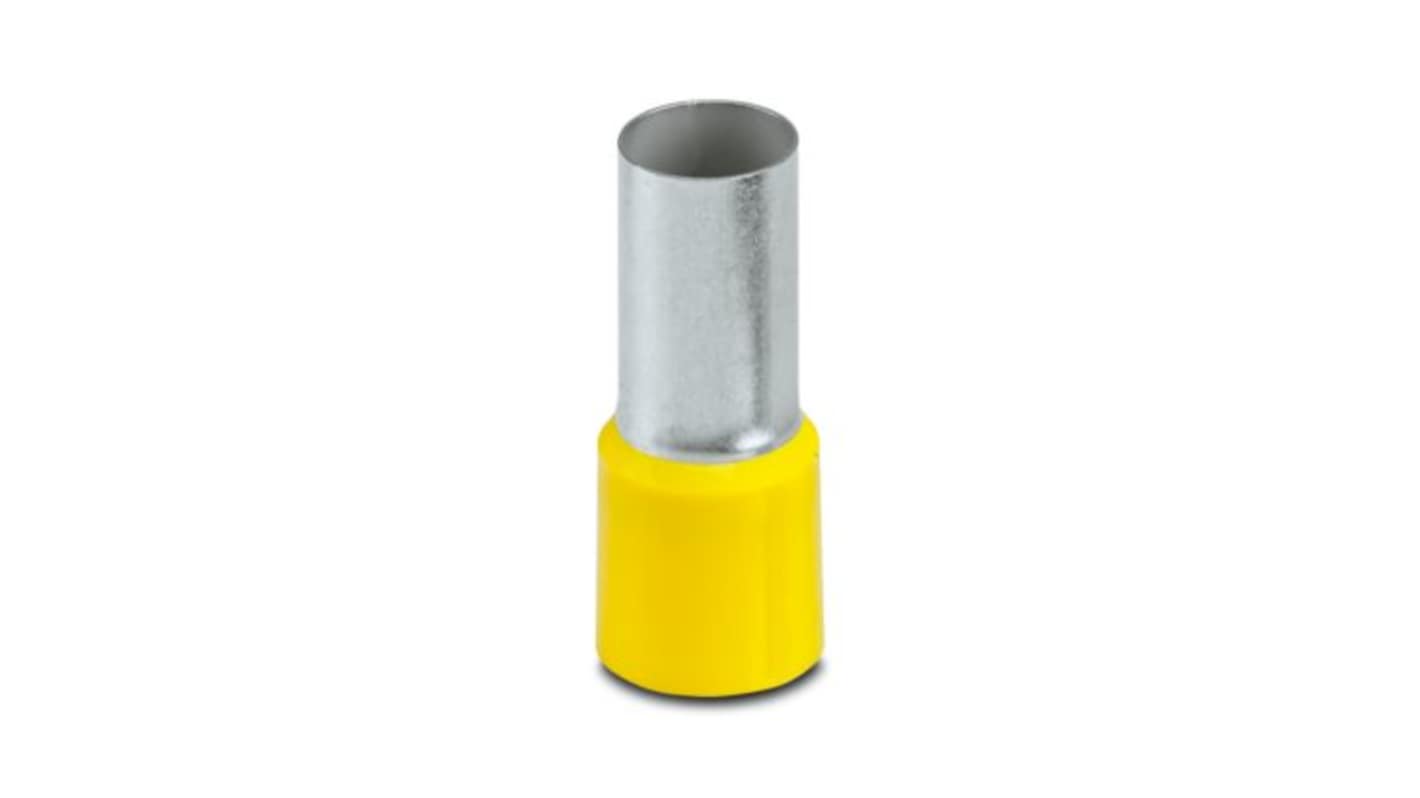

Phoenix Contact, AI70 -20 YE Insulated Ferrule, 20 mm Pin Length, 12.7 mm Pin Diameter, Yellow to 2 AWG Wire Size
- RS Stock No.:
- 535-431
- Mfr. Part No.:
- 3201848
- Brand:
- Phoenix Contact
Subtotal (1 pack of 25 units)*
£50.97
(exc. VAT)
£61.16
(inc. VAT)
Stock information currently inaccessible - Please check back later
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £50.97 | £2.039 |
*price indicative
- RS Stock No.:
- 535-431
- Mfr. Part No.:
- 3201848
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Ferrule | |
| Pin Diameter | 12.7mm | |
| Insulation Material | Polypropylene | |
| Colour | Yellow | |
| Pin Length | 20mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 2AWG | |
| Overall Length | 37mm | |
| Series | AI70 -20 YE | |
| Terminal Plating | Tin Plated | |
| Standards/Approvals | EU RoHS, EU REACH SVHC, CHINA RoHS | |
| Terminal Material | Electrolytic Tinned Copper | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Ferrule | ||
Pin Diameter 12.7mm | ||
Insulation Material Polypropylene | ||
Colour Yellow | ||
Pin Length 20mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 2AWG | ||
Overall Length 37mm | ||
Series AI70 -20 YE | ||
Terminal Plating Tin Plated | ||
Standards/Approvals EU RoHS, EU REACH SVHC, CHINA RoHS | ||
Terminal Material Electrolytic Tinned Copper | ||
- COO (Country of Origin):
- DE
The Phoenix Contact Ferrule represents a superior solution for ensuring secure and reliable electrical connections. Manufactured from soft tin-plated electrolytic copper, it guarantees enhanced insulation reliability, preventing splicing of wires. Designed for versatility, the product features a plastic sleeve and meets stringent international compliance standards, making it suitable for a broad range of applications.
Compatible with a wide range of conductor sizes up to 70 mm²
Designed to facilitate easy and precise stripping for installation
Free from silicone ensuring compatibility with various applications
