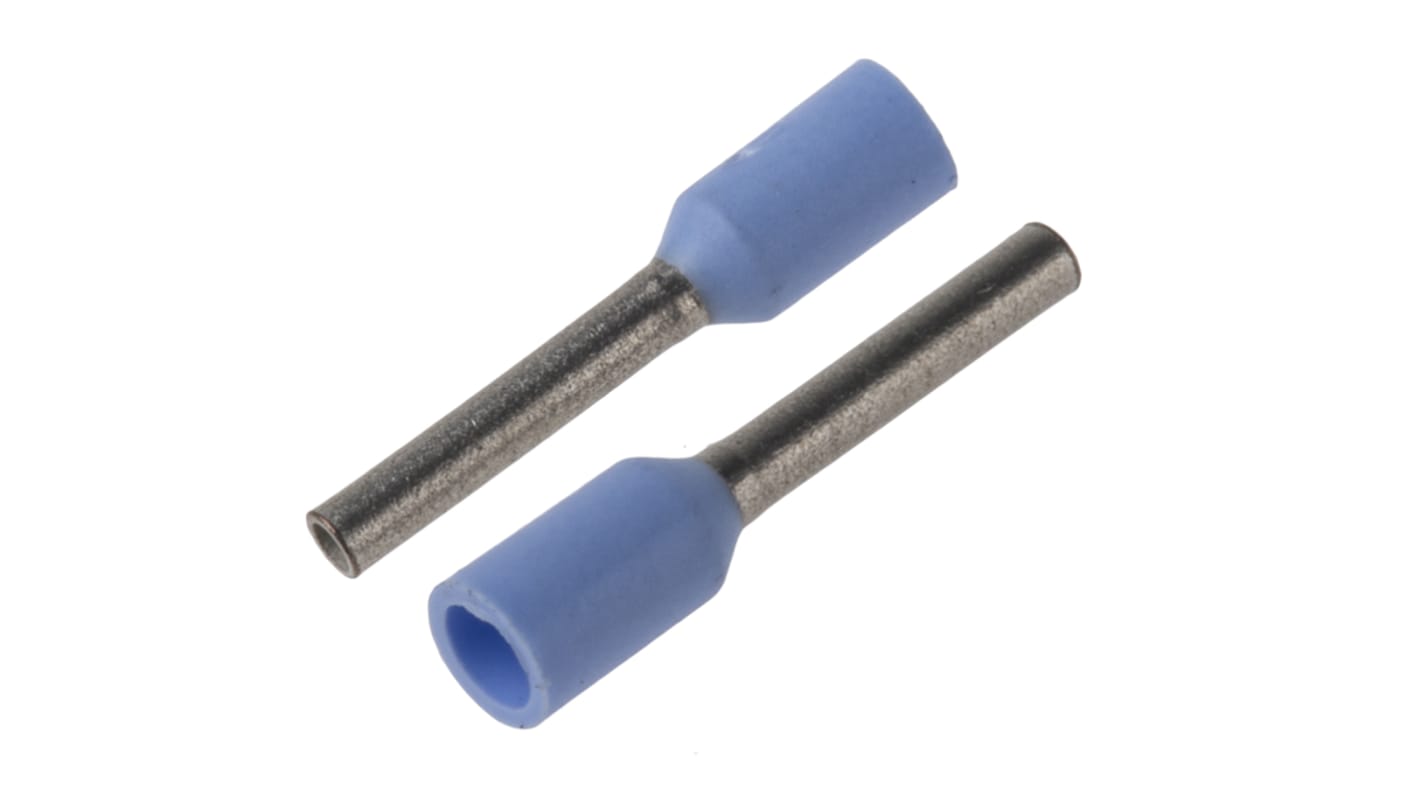

JST, GWE Insulated Crimp Bootlace Ferrule, 6 mm Pin Length, 0.8 mm Pin Diameter, Light Blue to 24 AWG Wire Size
- RS Stock No.:
- 122-5202
- Mfr. Part No.:
- GWE0.25-6
- Brand:
- JST
Bulk discount available
Subtotal (1 bag of 100 units)*
£12.20
(exc. VAT)
£14.60
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Bag* |
|---|---|---|
| 100 - 100 | £0.122 | £12.20 |
| 200 - 200 | £0.118 | £11.80 |
| 300 + | £0.113 | £11.30 |
*price indicative
- RS Stock No.:
- 122-5202
- Mfr. Part No.:
- GWE0.25-6
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Product Type | Crimp Bootlace Ferrule | |
| Pin Diameter | 0.8mm | |
| Insulation Material | Polypropylene | |
| Colour | Light Blue | |
| Pin Length | 6mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 24 AWG | |
| Overall Length | 11mm | |
| Series | GWE | |
| Standards/Approvals | RoHS | |
| Terminal Material | Copper | |
| Select all | ||
|---|---|---|
Brand JST | ||
Product Type Crimp Bootlace Ferrule | ||
Pin Diameter 0.8mm | ||
Insulation Material Polypropylene | ||
Colour Light Blue | ||
Pin Length 6mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 24 AWG | ||
Overall Length 11mm | ||
Series GWE | ||
Standards/Approvals RoHS | ||
Terminal Material Copper | ||
JST German Colour-Coded Insulated Bootlace Ferrule Crimp Terminals
A range of industrial standard German colour coded insulated bootlace ferrule crimp terminals. These insulated bootlace ferrule crimp terminals are MADE from oxygen free copper which is both robust and highly conductive with excellent mechanical and electrical characteristics. The terminals are then electroplated with tin and treated by a special process developed by JST. This method ensures that there is maximum adhesion of the electroplating, reduces electrical resistance and increases resistance to corrosion. The insulation of these bootlace crimp ferrules is MADE from polypropylene which has excellent flame resistance and insulation properties. These insulated bootlace crimp ferrules are available in various wire sizes.
