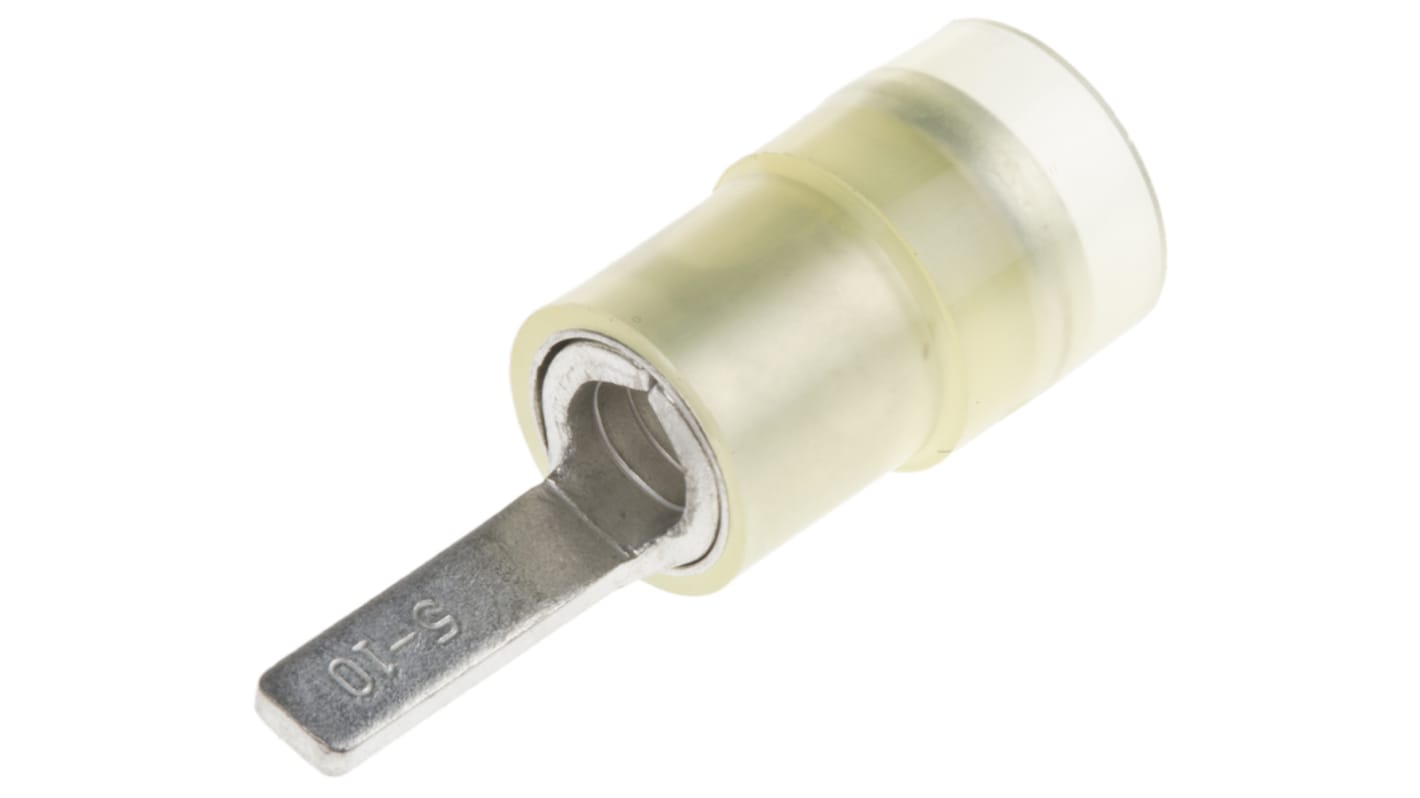

RS PRO Insulated Crimp Blade Terminal 10mm Blade Length, 4mm² to 6mm², 12AWG to 10AWG, Yellow
- RS Stock No.:
- 267-4524
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 100 units)*
£17.50
(exc. VAT)
£21.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,500 unit(s) ready to ship
- Plus 6,000 unit(s) shipping from 20 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | £0.175 | £17.50 |
| 500 - 2400 | £0.149 | £14.90 |
| 2500 - 4900 | £0.115 | £11.50 |
| 5000 - 9900 | £0.106 | £10.60 |
| 10000 + | £0.099 | £9.90 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 100)
£0.21
(exc. VAT)
£0.25
(inc. VAT)
- RS Stock No.:
- 267-4524
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Gender | Male | |
| Insulation | Insulated | |
| Insulation Material | Nylon | |
| Minimum Wire Size mm² | 4mm² | |
| Shrouded/Unshrouded | Unshrouded | |
| Maximum Wire Size mm² | 6mm² | |
| Minimum Wire Size AWG | 12AWG | |
| Maximum Wire Size AWG | 10AWG | |
| Overall Length | 23mm | |
| Blade Length | 10mm | |
| Inner Diameter | 7mm | |
| Blade Width | 2.8mm | |
| Blade Thickness | 1mm | |
| Hooked | No | |
| Colour | Yellow | |
| Contact Plating | Tin | |
| Contact Material | Copper | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Gender Male | ||
Insulation Insulated | ||
Insulation Material Nylon | ||
Minimum Wire Size mm² 4mm² | ||
Shrouded/Unshrouded Unshrouded | ||
Maximum Wire Size mm² 6mm² | ||
Minimum Wire Size AWG 12AWG | ||
Maximum Wire Size AWG 10AWG | ||
Overall Length 23mm | ||
Blade Length 10mm | ||
Inner Diameter 7mm | ||
Blade Width 2.8mm | ||
Blade Thickness 1mm | ||
Hooked No | ||
Colour Yellow | ||
Contact Plating Tin | ||
Contact Material Copper | ||
