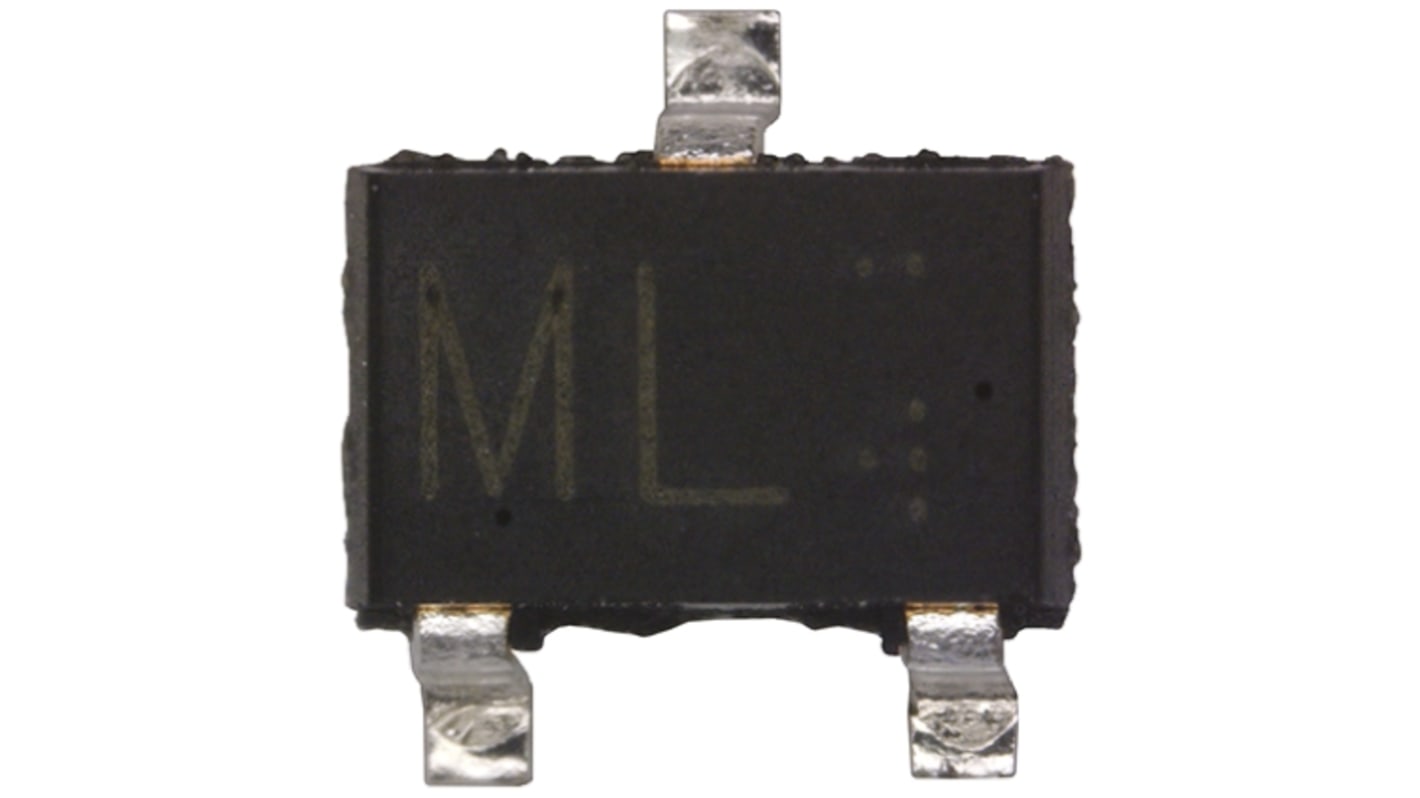

ROHM 2SA1579T106R/S Transistor, -50 mA PNP, -120 V, 3-Pin SOT-323
- RS Stock No.:
- 320-7787
- Mfr. Part No.:
- 2SA1579T106R/S
- Brand:
- ROHM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 320-7787
- Mfr. Part No.:
- 2SA1579T106R/S
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | -50mA | |
| Maximum Collector Emitter Voltage Vceo | -120V | |
| Package Type | SOT-323 | |
| Mount Type | Surface Mount | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage VCBO | -120V | |
| Maximum Power Dissipation Pd | 200mW | |
| Transistor Polarity | PNP | |
| Maximum Emitter Base Voltage VEBO | -5V | |
| Maximum Transition Frequency ft | 140MHz | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Width | 1.25 mm | |
| Series | 2SA1579 | |
| Height | 0.9mm | |
| Length | 2mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc -50mA | ||
Maximum Collector Emitter Voltage Vceo -120V | ||
Package Type SOT-323 | ||
Mount Type Surface Mount | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage VCBO -120V | ||
Maximum Power Dissipation Pd 200mW | ||
Transistor Polarity PNP | ||
Maximum Emitter Base Voltage VEBO -5V | ||
Maximum Transition Frequency ft 140MHz | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Width 1.25 mm | ||
Series 2SA1579 | ||
Height 0.9mm | ||
Length 2mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- JP
PNP Small-Signal Transistor, Rohm
Bipolar Transistors, ROHM Semiconductor
