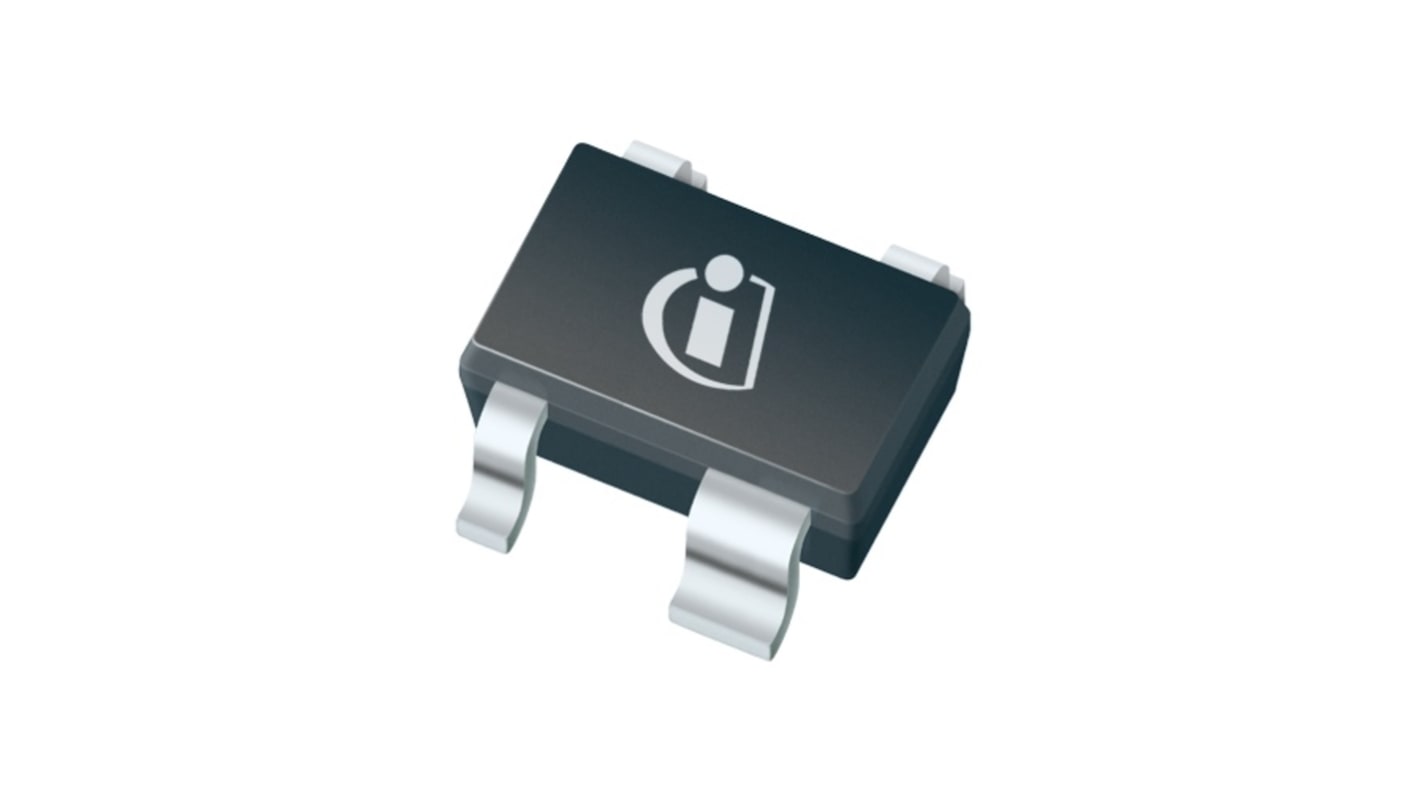

Infineon RF Bipolar Transistor, 50 mA NPN, 4.1 V, 4-Pin SOT-343
- RS Stock No.:
- 259-1440
- Mfr. Part No.:
- BFP640H6327XTSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 reel of 3000 units)*
£450.00
(exc. VAT)
£540.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 3000 | £0.15 | £450.00 |
| 6000 - 6000 | £0.146 | £438.00 |
| 9000 + | £0.142 | £426.00 |
*price indicative
- RS Stock No.:
- 259-1440
- Mfr. Part No.:
- BFP640H6327XTSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | RF Bipolar Transistor | |
| Maximum DC Collector Current Idc | 50mA | |
| Maximum Collector Emitter Voltage Vceo | 4.1V | |
| Package Type | SOT-343 | |
| Mount Type | Surface | |
| Transistor Configuration | NPN | |
| Maximum Collector Base Voltage VCBO | 13V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Transition Frequency ft | 42GHz | |
| Maximum Power Dissipation Pd | 200mW | |
| Maximum Emitter Base Voltage VEBO | 1.2V | |
| Transistor Polarity | NPN | |
| Minimum DC Current Gain hFE | 110 | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 4 | |
| Standards/Approvals | RoHS | |
| Series | BFP | |
| Length | 2mm | |
| Height | 0.9mm | |
| Width | 2.1 mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type RF Bipolar Transistor | ||
Maximum DC Collector Current Idc 50mA | ||
Maximum Collector Emitter Voltage Vceo 4.1V | ||
Package Type SOT-343 | ||
Mount Type Surface | ||
Transistor Configuration NPN | ||
Maximum Collector Base Voltage VCBO 13V | ||
Minimum Operating Temperature -55°C | ||
Maximum Transition Frequency ft 42GHz | ||
Maximum Power Dissipation Pd 200mW | ||
Maximum Emitter Base Voltage VEBO 1.2V | ||
Transistor Polarity NPN | ||
Minimum DC Current Gain hFE 110 | ||
Maximum Operating Temperature 150°C | ||
Pin Count 4 | ||
Standards/Approvals RoHS | ||
Series BFP | ||
Length 2mm | ||
Height 0.9mm | ||
Width 2.1 mm | ||
Automotive Standard AEC-Q101 | ||
The Infineon silicon germanium carbon (SiGe:C) NPN heterojunction wideband bipolar RF transistor (HBT) in a plastic dual emitter standard package with visible leads. The device is fitted with internal protection circuits, which enhance robustness against ESD and high RF input power strongly. The device combines robustness with very high RF gain and lowest noise figure at low operation current for use in a wide range of wireless applications. The BFP640ESD is especially well-suited for portable battery-powered applications in which reduced power consumption is a key requirement. Device design supports collector voltages up to 4.1 V.
Robust high performance low noise amplifier based on Infineon's reliable
2 kV ESD robustness (HBM) due to integrated protection circuits
High maximum RF input power of 21 dBm
