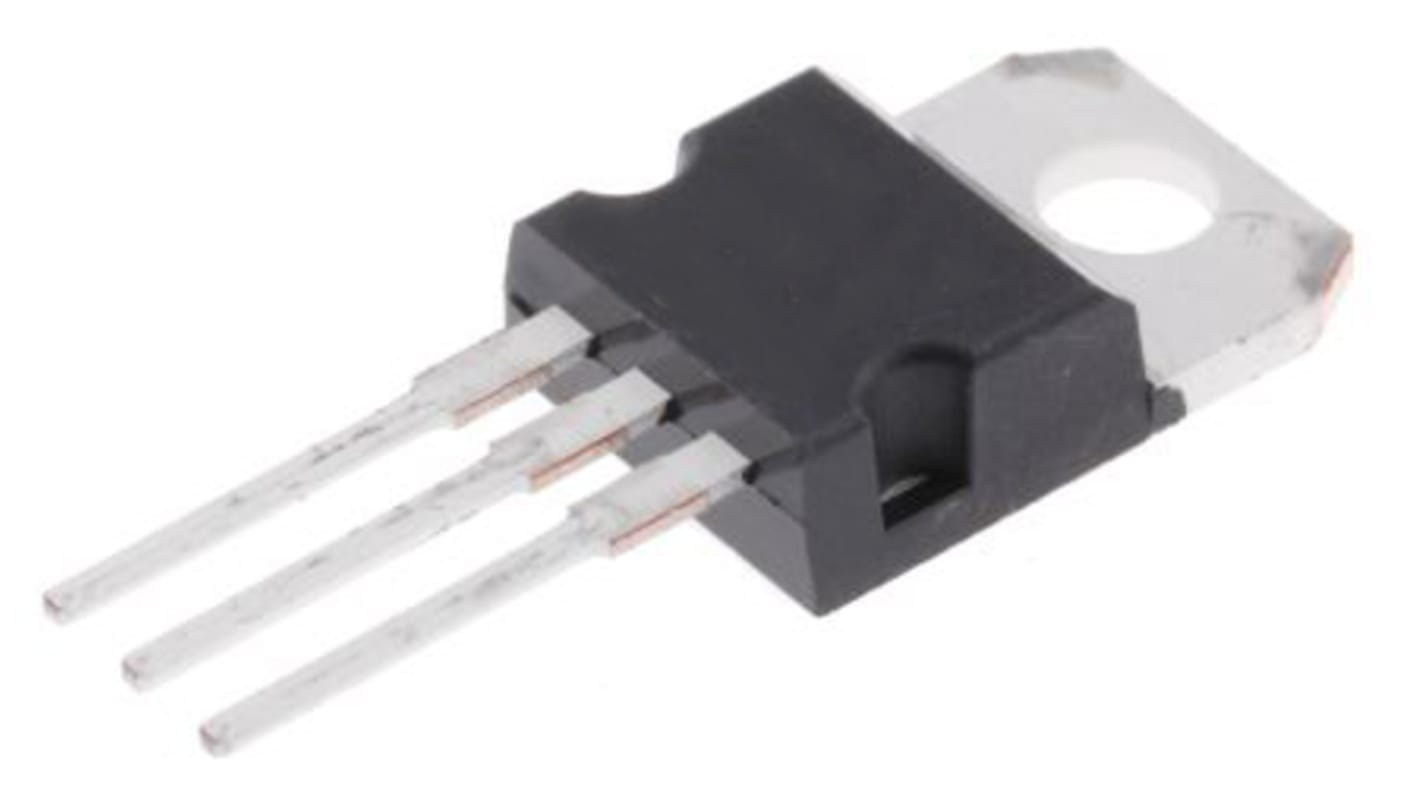

onsemi MJF45H11G PNP Transistor, -10 A, -80 V, 3-Pin TO-220
- RS Stock No.:
- 184-0971
- Mfr. Part No.:
- MJF45H11G
- Brand:
- onsemi
Available to back order for despatch 04/09/2024
Added
Price Each (In a Tube of 50)
£0.453
(exc. VAT)
£0.544
(inc. VAT)
| Units | Per unit | Per Tube* |
| 50 + | £0.453 | £22.65 |
| *price indicative | ||
- RS Stock No.:
- 184-0971
- Mfr. Part No.:
- MJF45H11G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- KR
Product Details
The Bipolar Power Transistor is designed for general purpose power amplification and switching such as output or driver stages in applications such as switching regulators, converters and power amplifiers.
Low Collector-Emitter Saturation Voltage--VCE(sat) = 1.0 V (Max) @ 8.0 A
Fast Switching Speeds
Complementary Pairs Simplifies Designs
Fast Switching Speeds
Complementary Pairs Simplifies Designs
Specifications
Attribute | Value |
|---|---|
| Transistor Type | PNP |
| Maximum DC Collector Current | -10 A |
| Maximum Collector Emitter Voltage | -80 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 36 W |
| Minimum DC Current Gain | 60 |
| Transistor Configuration | Isolated |
| Maximum Emitter Base Voltage | 5 V |
| Maximum Operating Frequency | 20 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Dimensions | 10.63 x 4.9 x 16.12mm |
| Maximum Operating Temperature | +150 °C |
