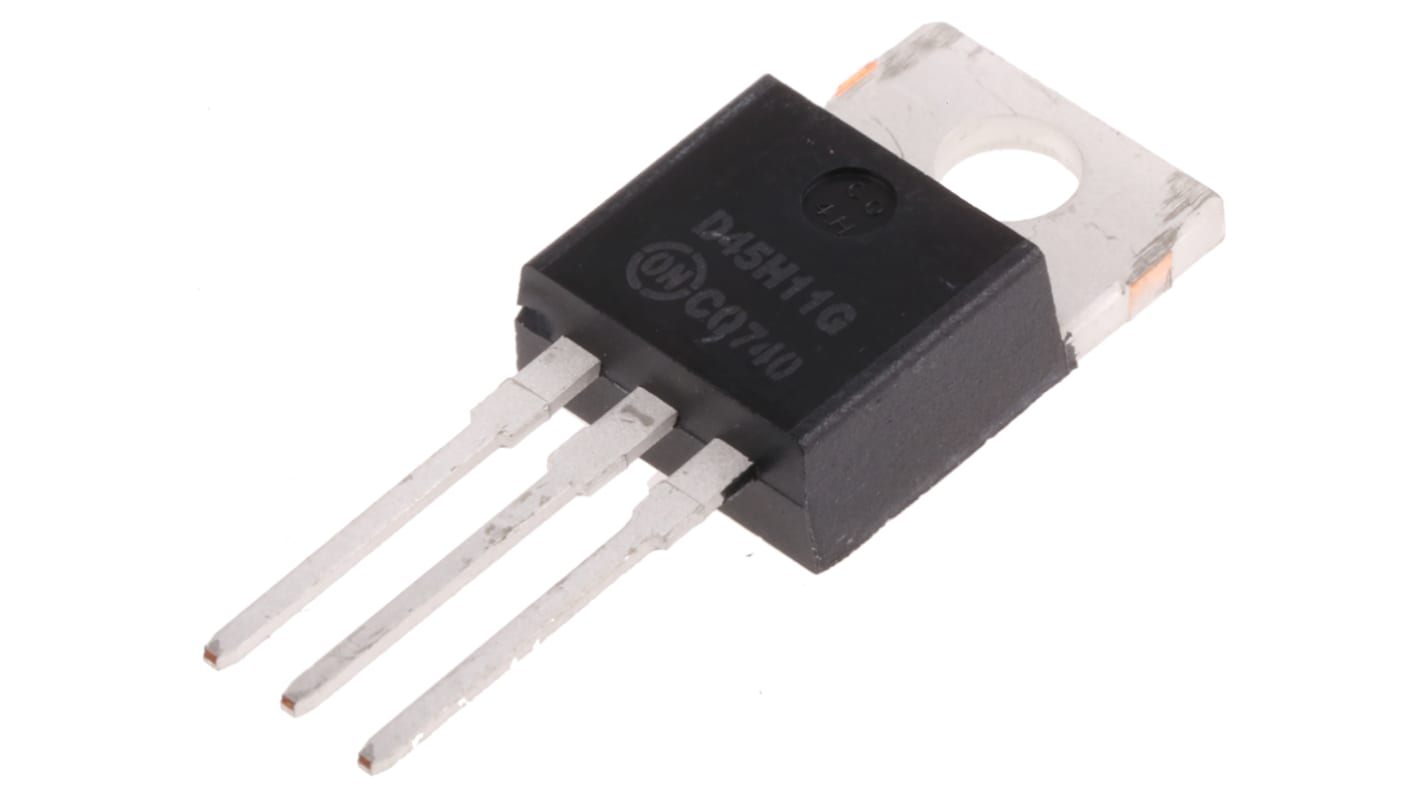

onsemi D45H11G PNP Transistor, -10 A, -80 V, 3-Pin TO-220AB
- RS Stock No.:
- 545-0179
- Mfr. Part No.:
- D45H11G
- Brand:
- onsemi
Bulk discount available
Subtotal (1 unit)*
£0.83
(exc. VAT)
£1.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 52 unit(s) ready to ship
- Plus 102 unit(s) ready to ship from another location
- Plus 150 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £0.83 |
| 10 + | £0.72 |
*price indicative
- RS Stock No.:
- 545-0179
- Mfr. Part No.:
- D45H11G
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Transistor Type | PNP | |
| Maximum DC Collector Current | -10 A | |
| Maximum Collector Emitter Voltage | -80 V | |
| Package Type | TO-220AB | |
| Mounting Type | Through Hole | |
| Maximum Power Dissipation | 2 W | |
| Minimum DC Current Gain | 40 | |
| Transistor Configuration | Single | |
| Maximum Emitter Base Voltage | 5 V | |
| Maximum Operating Frequency | 40 MHz | |
| Pin Count | 3 | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Temperature | +150 °C | |
| Dimensions | 9.28 x 10.28 x 4.82mm | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Transistor Type PNP | ||
Maximum DC Collector Current -10 A | ||
Maximum Collector Emitter Voltage -80 V | ||
Package Type TO-220AB | ||
Mounting Type Through Hole | ||
Maximum Power Dissipation 2 W | ||
Minimum DC Current Gain 40 | ||
Transistor Configuration Single | ||
Maximum Emitter Base Voltage 5 V | ||
Maximum Operating Frequency 40 MHz | ||
Pin Count 3 | ||
Number of Elements per Chip 1 | ||
Maximum Operating Temperature +150 °C | ||
Dimensions 9.28 x 10.28 x 4.82mm | ||
PNP Power Transistors, ON Semiconductor
Standards
Manufacturer Part Nos with NSV prefix are automotive qualified to AEC-Q101 standard.
