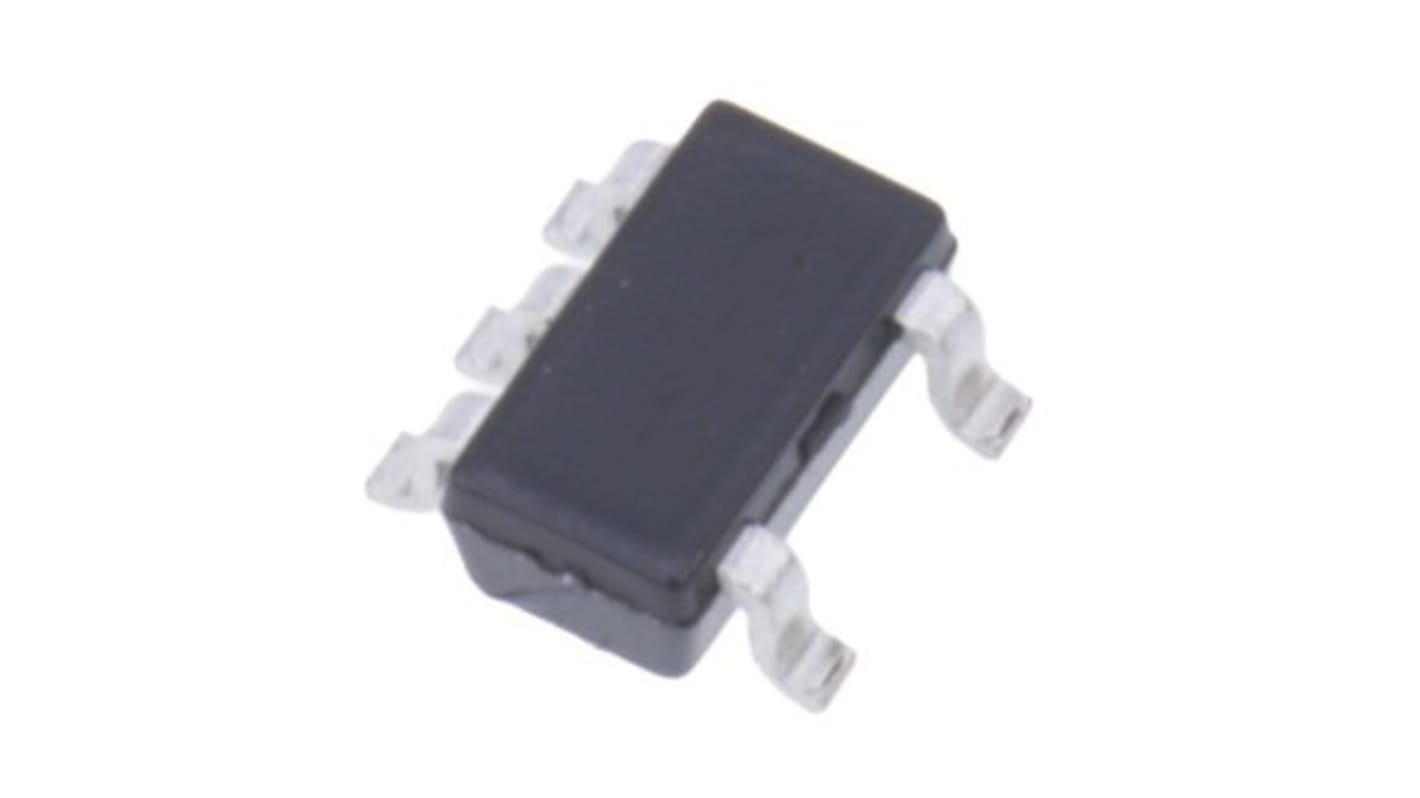

ROHM FMY1AT148 Transistor, 150 mA NPN + PNP, 50 V, 5-Pin SOT-25
- RS Stock No.:
- 178-5910
- Mfr. Part No.:
- FMY1AT148
- Brand:
- ROHM
Bulk discount available
Subtotal (1 pack of 100 units)*
£16.60
(exc. VAT)
£19.90
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 31 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 100 | £0.166 | £16.60 |
| 200 - 200 | £0.15 | £15.00 |
| 300 - 400 | £0.136 | £13.60 |
| 500 - 900 | £0.125 | £12.50 |
| 1000 + | £0.115 | £11.50 |
*price indicative
- RS Stock No.:
- 178-5910
- Mfr. Part No.:
- FMY1AT148
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 150mA | |
| Maximum Collector Emitter Voltage Vceo | 50V | |
| Package Type | SOT-25 | |
| Mount Type | Surface | |
| Transistor Configuration | Common Emitter | |
| Maximum Collector Base Voltage VCBO | 60V | |
| Minimum DC Current Gain hFE | 120 | |
| Transistor Polarity | NPN + PNP | |
| Maximum Power Dissipation Pd | 300mW | |
| Maximum Emitter Base Voltage VEBO | 7V | |
| Maximum Transition Frequency ft | 100MHz | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 5 | |
| Length | 3mm | |
| Height | 3mm | |
| Standards/Approvals | No | |
| Series | FMY1A | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 150mA | ||
Maximum Collector Emitter Voltage Vceo 50V | ||
Package Type SOT-25 | ||
Mount Type Surface | ||
Transistor Configuration Common Emitter | ||
Maximum Collector Base Voltage VCBO 60V | ||
Minimum DC Current Gain hFE 120 | ||
Transistor Polarity NPN + PNP | ||
Maximum Power Dissipation Pd 300mW | ||
Maximum Emitter Base Voltage VEBO 7V | ||
Maximum Transition Frequency ft 100MHz | ||
Maximum Operating Temperature 150°C | ||
Pin Count 5 | ||
Length 3mm | ||
Height 3mm | ||
Standards/Approvals No | ||
Series FMY1A | ||
Automotive Standard No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- TH
Devices integrating two transistors are available in ultra-compact packages, suitable for various applications such as pre-amplifier differential amplification circuits, high-frequency oscillators, driver ICs and so forth.
Ultra-compact complex bipolar transistor
General Purpose
Small Surface Mount Package
Pb Free
