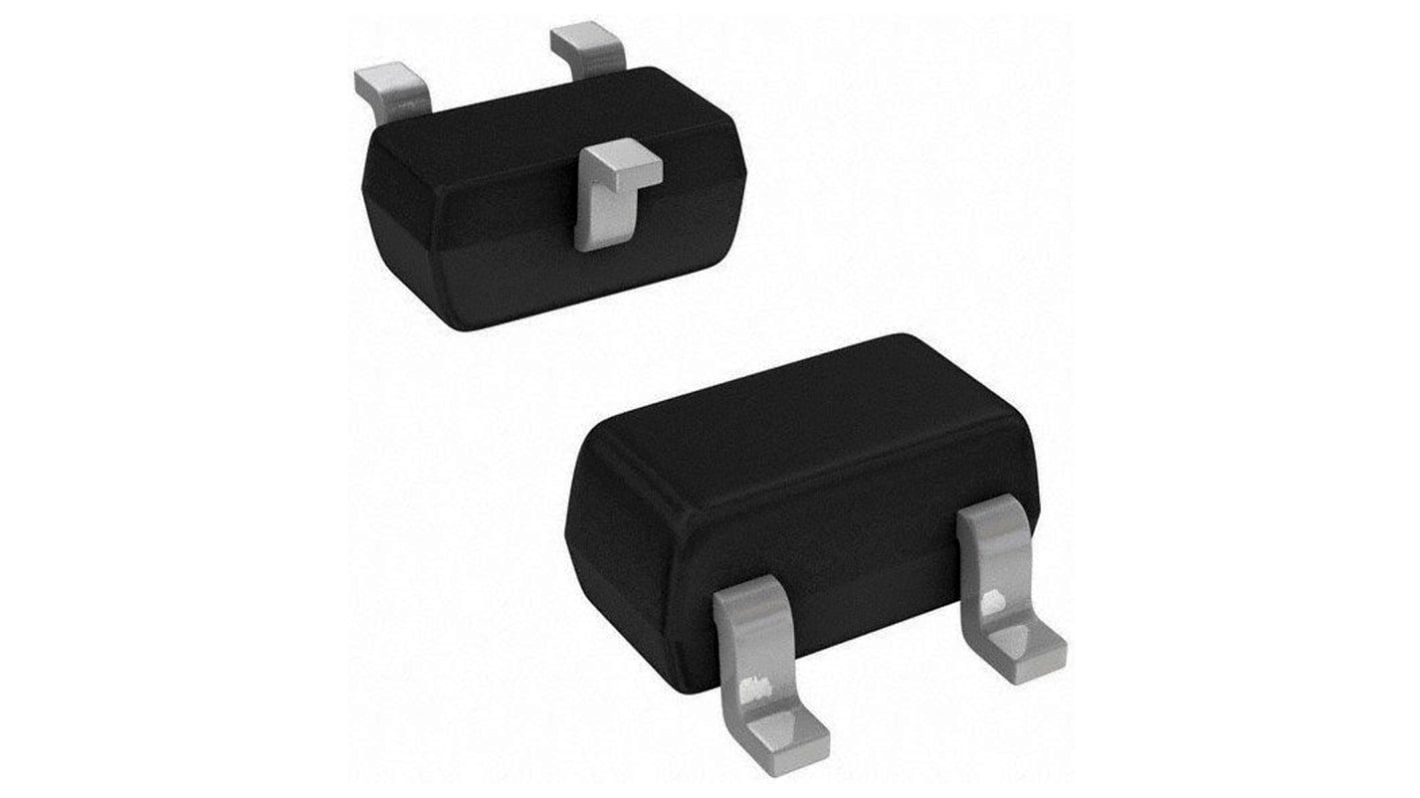

Diodes Inc 2DC4617R-7-F NPN Transistor, 150 mA, 50 V, 3-Pin SOT-523
- RS Stock No.:
- 165-8663
- Mfr. Part No.:
- 2DC4617R-7-F
- Brand:
- DiodesZetex
Available to back order for despatch 28/01/2025
Price Each (On a Reel of 3000)
£0.044
(exc. VAT)
£0.053
(inc. VAT)
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.044 | £132.00 |
*price indicative
- RS Stock No.:
- 165-8663
- Mfr. Part No.:
- 2DC4617R-7-F
- Brand:
- DiodesZetex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Small Signal NPN Transistors, Diodes Inc
Transistors, Diodes Inc
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum DC Collector Current | 150 mA |
| Maximum Collector Emitter Voltage | 50 V |
| Package Type | SOT-523 (SC-89) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 150 mW |
| Minimum DC Current Gain | 180 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 60 V |
| Maximum Emitter Base Voltage | 7 V |
| Maximum Operating Frequency | 100 MHz |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Dimensions | 1.7 x 0.85 x 0.8mm |
| Maximum Operating Temperature | +150 °C |
