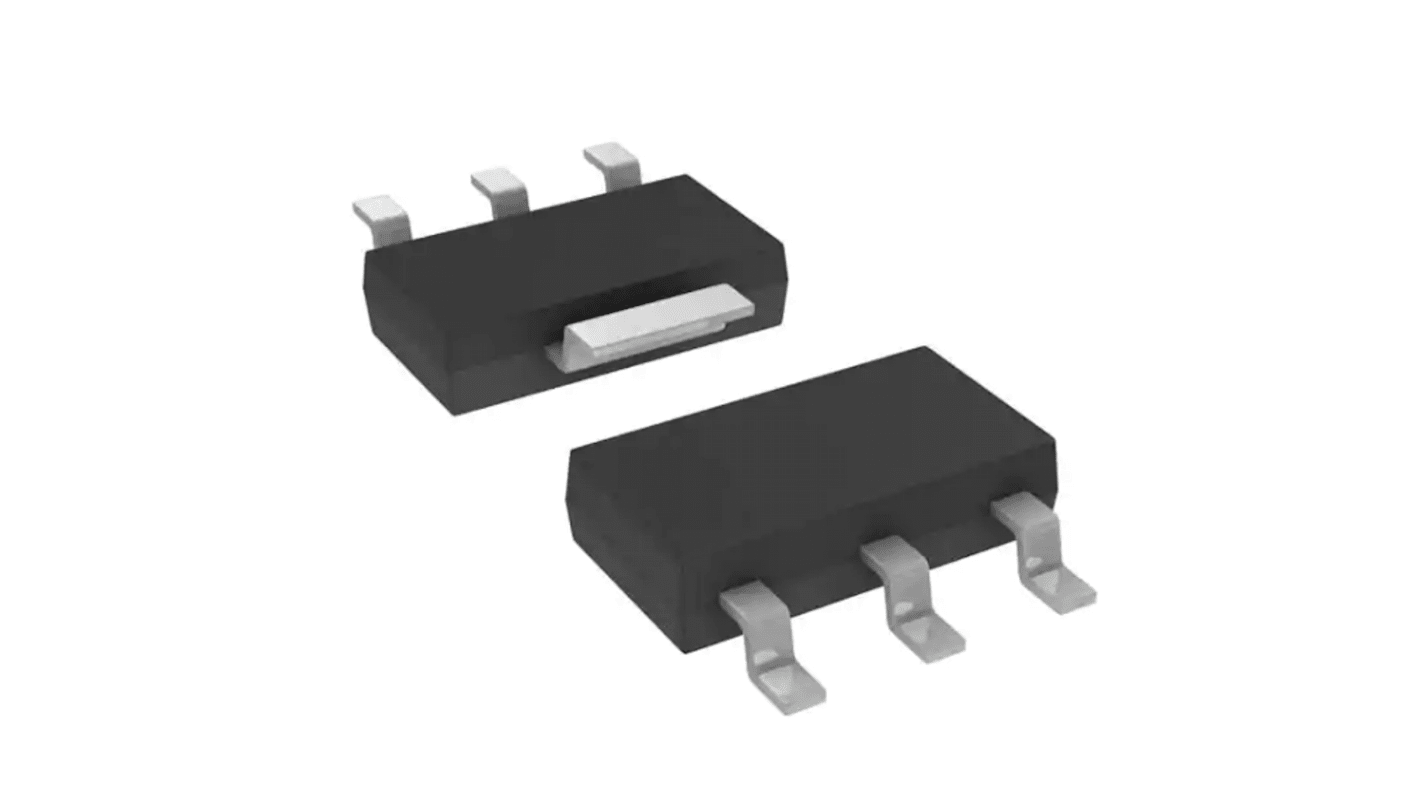

STMicroelectronics 2STN2540 PNP Transistor, -5 A, -40 V, 3-Pin SOT-223
- RS Stock No.:
- 178-5048
- Mfr. Part No.:
- 2STN2540
- Brand:
- STMicroelectronics
Available to back order for despatch 08/05/2024
Added
Price Each (On a Reel of 1000)
£0.178
(exc. VAT)
£0.214
(inc. VAT)
| Units | Per unit | Per Reel* |
| 1000 - 1000 | £0.178 | £178.00 |
| 2000 + | £0.152 | £152.00 |
| *price indicative | ||
- RS Stock No.:
- 178-5048
- Mfr. Part No.:
- 2STN2540
- Brand:
- STMicroelectronics
Technical Reference
Legislation and Compliance
Product Details
General Purpose PNP Transistors, STMicroelectronics
The STMicroelectronics low voltage fast-switching PNP power transistor new using new “PB-HCD” (Power Bipolar High Current Density) technology. The resulting transistor shows exceptional high gain performances coupled with very low saturation voltage.
Very low collector-emitter saturation voltage
High current gain characteristic
Fast-switching speed
High current gain characteristic
Fast-switching speed
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
Specifications
Attribute | Value |
|---|---|
| Transistor Type | PNP |
| Maximum DC Collector Current | -5 A |
| Maximum Collector Emitter Voltage | -40 V |
| Package Type | SOT-223 (SC-73) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 1.6 W |
| Minimum DC Current Gain | 50 |
| Transistor Configuration | Single |
| Maximum Collector Base Voltage | 40 V |
| Maximum Emitter Base Voltage | 6 V |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Dimensions | 1.8 x 6.3 x 3.3mm |
| Maximum Operating Temperature | +150 °C |
- RS Stock No.:
- 178-5048
- Mfr. Part No.:
- 2STN2540
- Brand:
- STMicroelectronics
