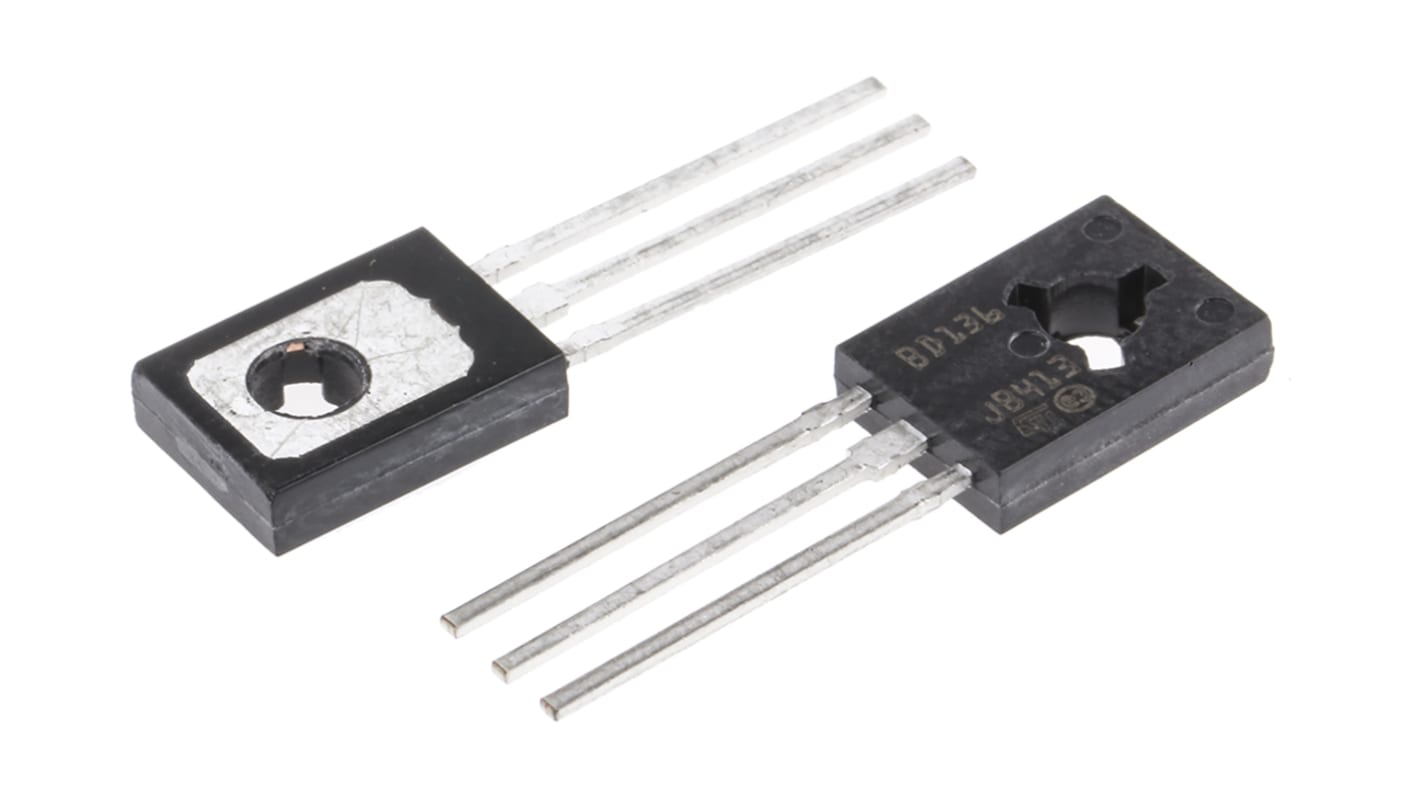

STMicroelectronics BD136 PNP Transistor, -3 A, -45 V, 3-Pin SOT-32
- RS Stock No.:
- 168-6783
- Mfr. Part No.:
- BD136
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 tube of 50 units)*
£12.10
(exc. VAT)
£14.50
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 50 unit(s) ready to ship
- Plus 150 unit(s) shipping from 21 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 200 | £0.242 | £12.10 |
| 250 - 450 | £0.23 | £11.50 |
| 500 - 1200 | £0.207 | £10.35 |
| 1250 - 2450 | £0.186 | £9.30 |
| 2500 + | £0.177 | £8.85 |
*price indicative
- RS Stock No.:
- 168-6783
- Mfr. Part No.:
- BD136
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Transistor Type | PNP | |
| Maximum DC Collector Current | -3 A | |
| Maximum Collector Emitter Voltage | -45 V | |
| Package Type | SOT-32 | |
| Mounting Type | Through Hole | |
| Maximum Power Dissipation | 1.25 W | |
| Minimum DC Current Gain | 100, 40 | |
| Transistor Configuration | Single | |
| Maximum Collector Base Voltage | 45 V | |
| Maximum Emitter Base Voltage | 5 V | |
| Pin Count | 3 | |
| Number of Elements per Chip | 1 | |
| Maximum Operating Temperature | +150 °C | |
| Dimensions | 10.8 x 7.8 x 2.7mm | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Transistor Type PNP | ||
Maximum DC Collector Current -3 A | ||
Maximum Collector Emitter Voltage -45 V | ||
Package Type SOT-32 | ||
Mounting Type Through Hole | ||
Maximum Power Dissipation 1.25 W | ||
Minimum DC Current Gain 100, 40 | ||
Transistor Configuration Single | ||
Maximum Collector Base Voltage 45 V | ||
Maximum Emitter Base Voltage 5 V | ||
Pin Count 3 | ||
Number of Elements per Chip 1 | ||
Maximum Operating Temperature +150 °C | ||
Dimensions 10.8 x 7.8 x 2.7mm | ||
- COO (Country of Origin):
- MY
General Purpose PNP Transistors, STMicroelectronics
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
