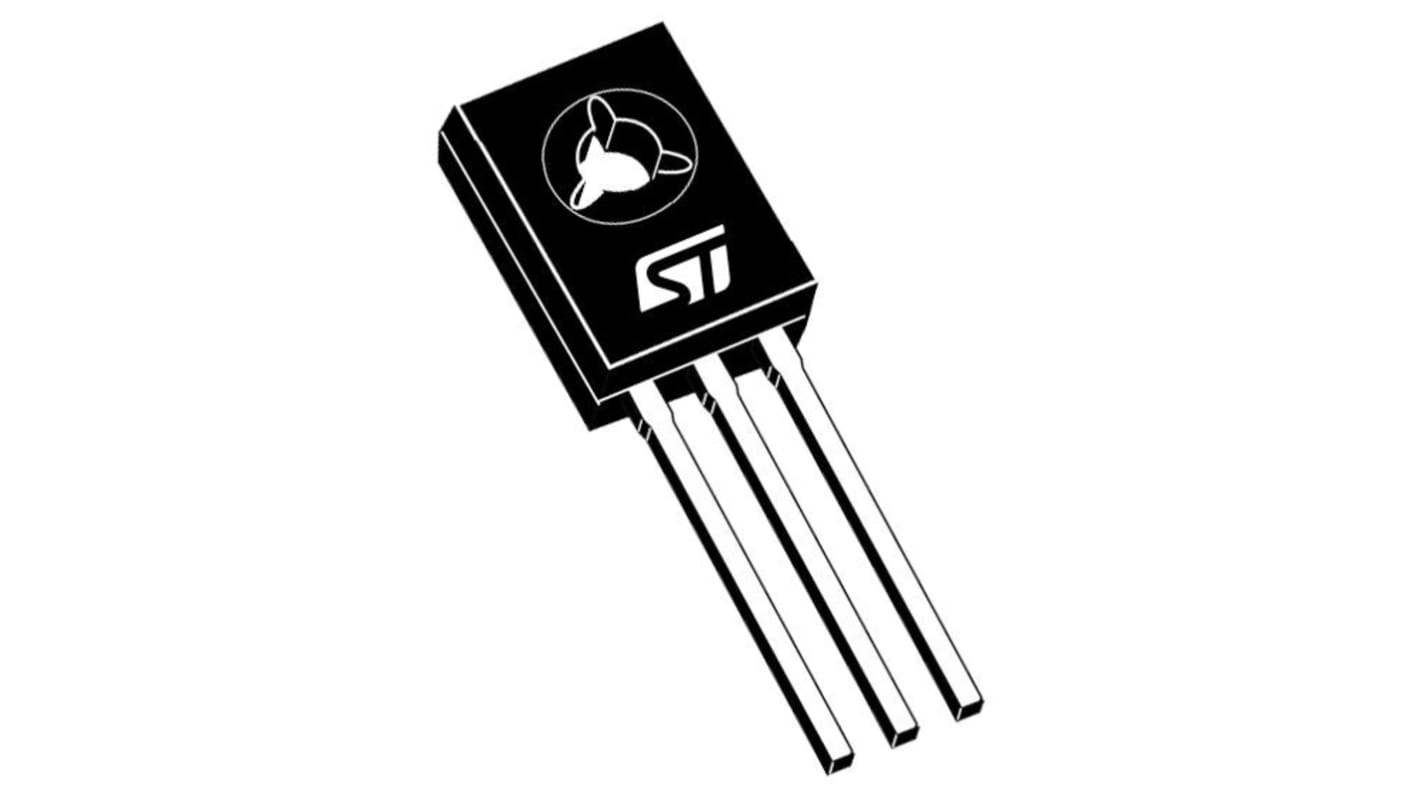

STMicroelectronics BD135-16 Transistor, 1.5 A NPN, 45 V, 3-Pin SOT-32
- RS Stock No.:
- 151-467
- Mfr. Part No.:
- BD135-16
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal (1 tube of 50 units)*
£13.70
(exc. VAT)
£16.45
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 400 unit(s), ready to ship
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 450 | £0.274 | £13.70 |
| 500 - 950 | £0.26 | £13.00 |
| 1000 - 2450 | £0.241 | £12.05 |
| 2500 - 4950 | £0.222 | £11.10 |
| 5000 + | £0.213 | £10.65 |
*price indicative
- RS Stock No.:
- 151-467
- Mfr. Part No.:
- BD135-16
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | Transistor | |
| Maximum DC Collector Current Idc | 1.5A | |
| Maximum Collector Emitter Voltage Vceo | 45V | |
| Package Type | SOT-32 | |
| Mount Type | Through Hole | |
| Maximum Collector Base Voltage VCBO | 45V | |
| Maximum Emitter Base Voltage VEBO | 5V | |
| Transistor Polarity | NPN | |
| Minimum Operating Temperature | 65°C | |
| Maximum Power Dissipation Pd | 12.5W | |
| Minimum DC Current Gain hFE | 25 | |
| Maximum Operating Temperature | 150°C | |
| Pin Count | 3 | |
| Standards/Approvals | JEDEC Standard JESD97 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type Transistor | ||
Maximum DC Collector Current Idc 1.5A | ||
Maximum Collector Emitter Voltage Vceo 45V | ||
Package Type SOT-32 | ||
Mount Type Through Hole | ||
Maximum Collector Base Voltage VCBO 45V | ||
Maximum Emitter Base Voltage VEBO 5V | ||
Transistor Polarity NPN | ||
Minimum Operating Temperature 65°C | ||
Maximum Power Dissipation Pd 12.5W | ||
Minimum DC Current Gain hFE 25 | ||
Maximum Operating Temperature 150°C | ||
Pin Count 3 | ||
Standards/Approvals JEDEC Standard JESD97 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- IN
The STMicroelectronics Transistor is mounted in the SOT 32 plastic package. It is designed for audio amplifiers and drivers utilizing complementary or quasi complementary circuits.
It is pre selected in DC current gain
