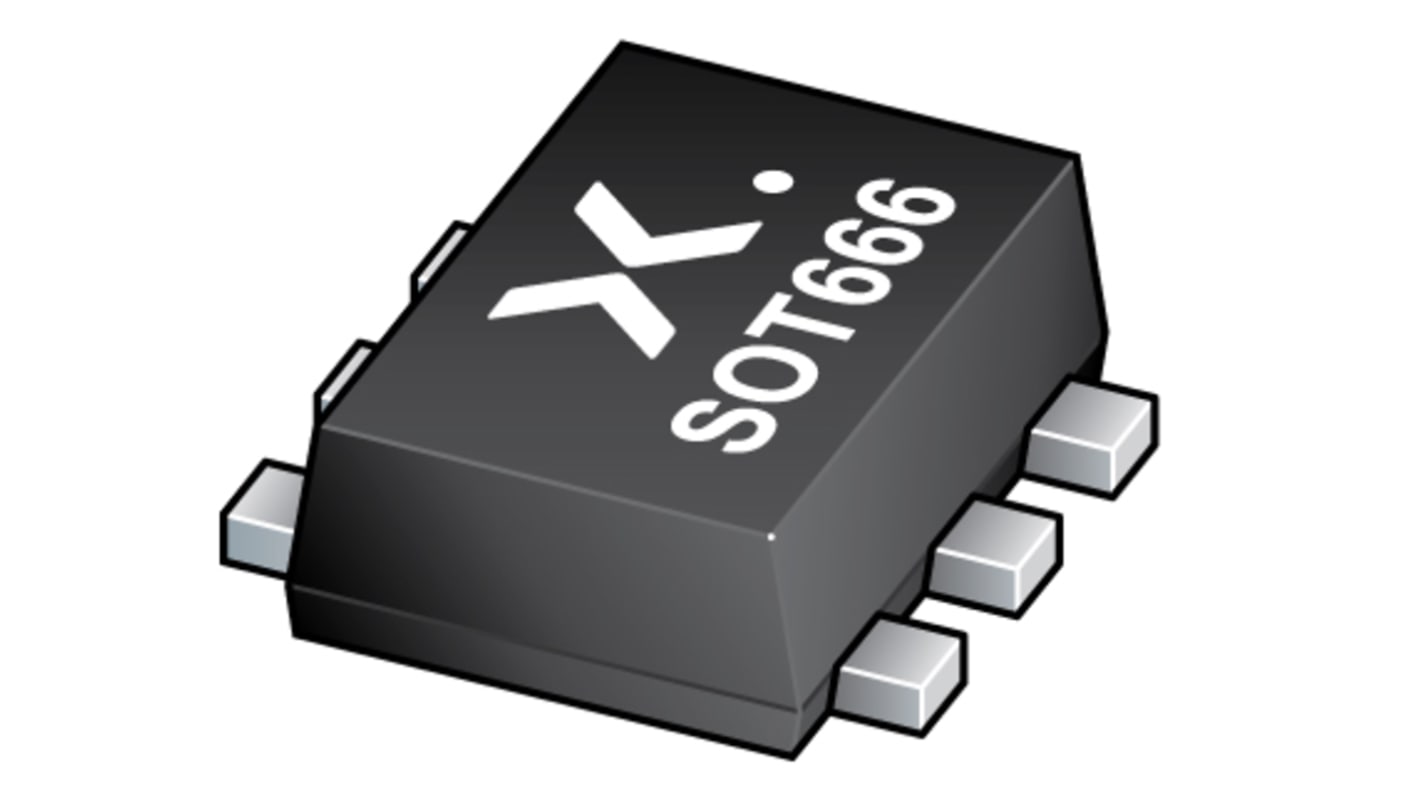

Nexperia PEMD12,115 Dual NPN/PNP Digital Transistor, 100 mA, 50 V, 6-Pin SOT-666

View all Bipolar Transistors
Bulk discount available

Subtotal (1 pack of 100 units)*

£11.40

(exc. VAT)

£13.70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 700 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
100 - 200£0.114£11.40
300 - 400£0.109£10.90
500 - 900£0.103£10.30
1000 - 2400£0.076£7.60
2500 +£0.073£7.30

*price indicative

Packaging Options:
RS Stock No.:
153-2903
Mfr. Part No.:
PEMD12,115
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Transistor Type

NPN/PNP

Maximum DC Collector Current

100 mA

Maximum Collector Emitter Voltage

50 V

Package Type

SOT-666

Mounting Type

Surface Mount

Maximum Power Dissipation

200 mW

Transistor Configuration

Dual

Maximum Emitter Base Voltage

10 V

Pin Count

6

Number of Elements per Chip

2

Maximum Operating Temperature

+150 °C

Dimensions

1.7 x 1.3 x 0.6mm

Base-Emitter Resistor

47kΩ

Typical Resistor Ratio

1

Typical Input Resistor

47 kΩ

NPN/PNP resistor-equipped transistors, R1 = 47 kΩ, R2 = 47 kΩ, NPN/PNP double Resistor-Equipped Transistors (RET) in Surface-Mounted Device (SMD) plastic packages.

100 mA output current capability
Built-in bias resistors
Simplified circuit design
Reduces component count
Reduces pick and place costs
AEC-Q101 qualified
Low current peripheral driver
Control of IC inputs
Replaces general-purpose transistors in digital applications
