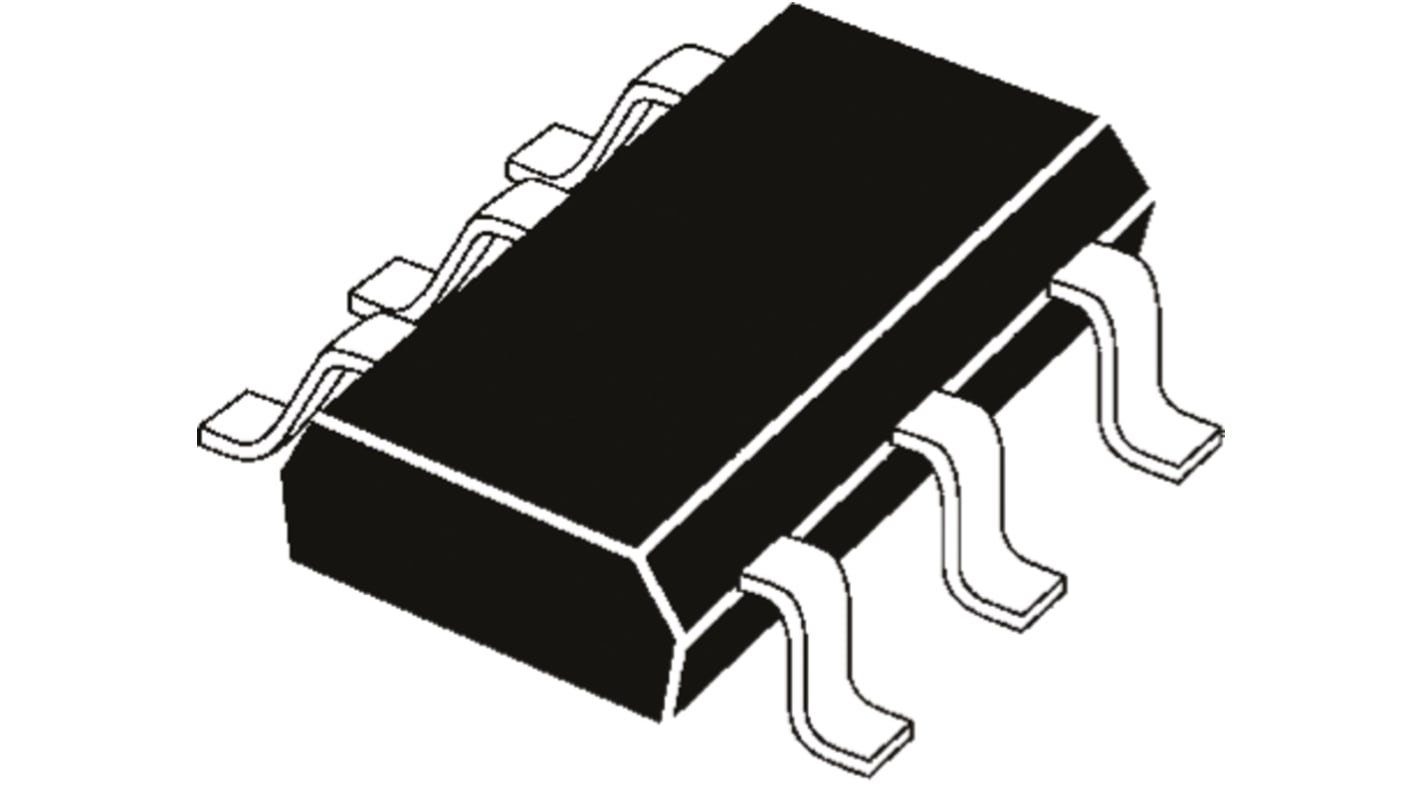

ROHM UMD22NTR Dual NPN/PNP Digital Transistor, 100 mA, 50 V, 6-Pin SOT-363

View all Bipolar Transistors

Subtotal (1 pack of 75 units)*

£9.075

(exc. VAT)

£10.875

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 225 unit(s), ready to ship
Units
Per unit
Per Pack*
75 +£0.121£9.08

*price indicative

RS Stock No.:
826-8576
Mfr. Part No.:
UMD22NTR
Brand:
ROHM
Find similar products by selecting one or more attributes.
Select all

Brand

ROHM

Transistor Type

NPN/PNP

Maximum DC Collector Current

100 mA

Maximum Collector Emitter Voltage

50 V

Package Type

SOT-363 (SC-88)

Mounting Type

Surface Mount

Maximum Power Dissipation

150 mW

Transistor Configuration

Isolated

Maximum Emitter Base Voltage

5 V

Pin Count

6

Number of Elements per Chip

2

Base-Emitter Resistor

47kΩ

Typical Input Resistor

4.7 kΩ

Dimensions

2.1 x 1.35 x 0.9mm

Typical Resistor Ratio

0.1

Maximum Operating Temperature

+150 °C

COO (Country of Origin):
TH

Dual Resistor Dual Digital NPN+PNP Transistors, ROHM



Digital Transistors, ROHM Semiconductor


Resistor-equipped bipolar transistors, also known as “Digital Transistors” or “Bias Resistor Transistors”, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.
