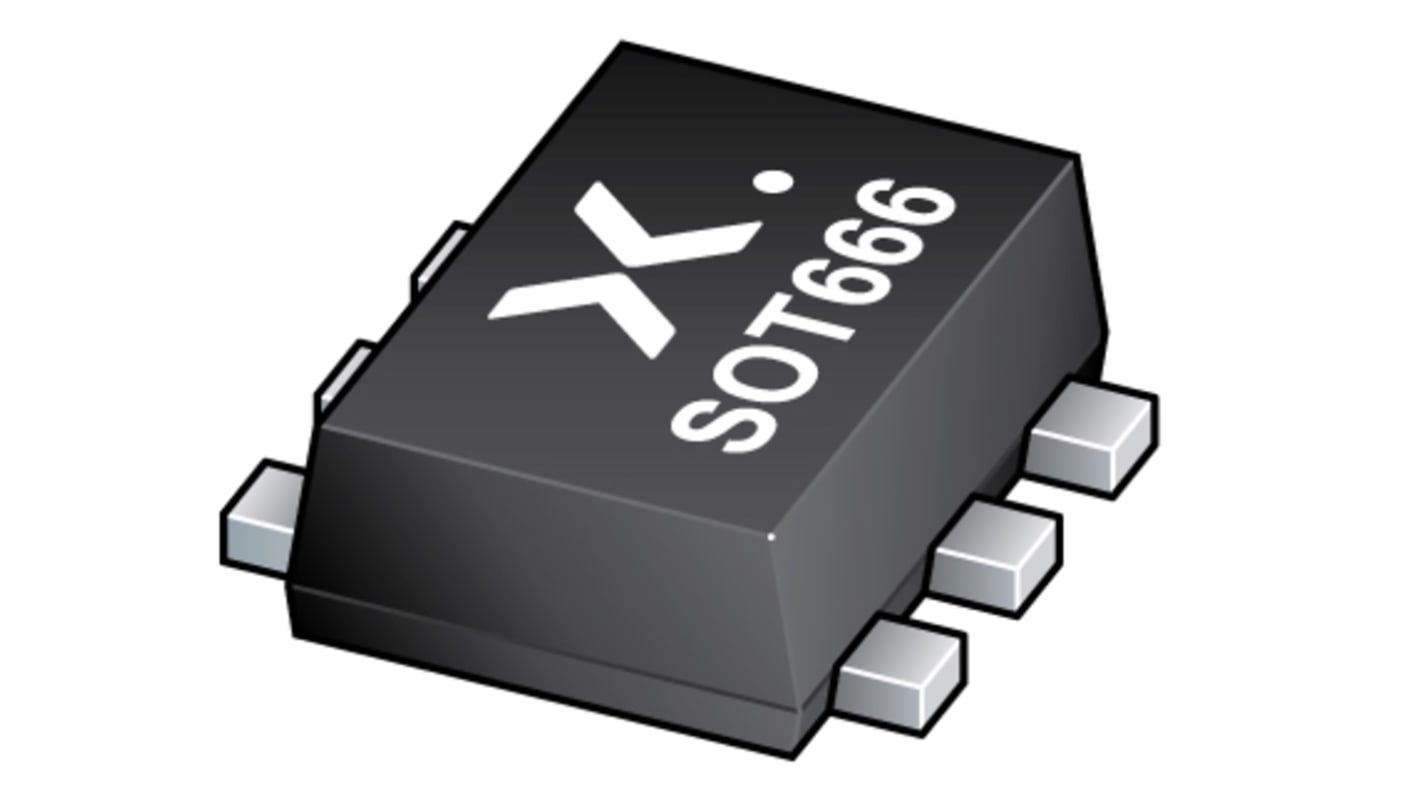

Nexperia PEMD48,115 Dual NPN/PNP Digital Transistor, 100 mA, 50 V, 6-Pin SOT-666

View all Bipolar Transistors
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
153-1980
Mfr. Part No.:
PEMD48,115
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Transistor Type

NPN/PNP

Maximum DC Collector Current

100 mA

Maximum Collector Emitter Voltage

50 V

Package Type

SOT-666

Mounting Type

Surface Mount

Maximum Power Dissipation

200 mW

Transistor Configuration

Dual

Maximum Emitter Base Voltage

10 V

Pin Count

6

Number of Elements per Chip

2

Dimensions

1.7 x 1.3 x 0.6mm

Typical Resistor Ratio

1

Maximum Operating Temperature

+150 °C

Typical Input Resistor

2.2 (PNP) kΩ, 47 (NPN) kΩ

NPN/PNP resistor-equipped transistors, R1 = 47 kΩ, R2 = 47 kΩ and R1 = 2.2 kΩ, R2 = 47 kΩ, NPN/PNP double Resistor-Equipped Transist ors (RET) in small Surface-Mounted Device (SMD) plastic packages.

100 mA output current capability
Built-in bias resistors
Simplifies circuit design
Low package height of 0.37 mm
Reduces component count
Reduces pick and place costs
AEC-Q101 qualified
Low current peripheral driver
Control of IC inputs
Replaces general-purpose transistors in digital applications
Mobile applications
