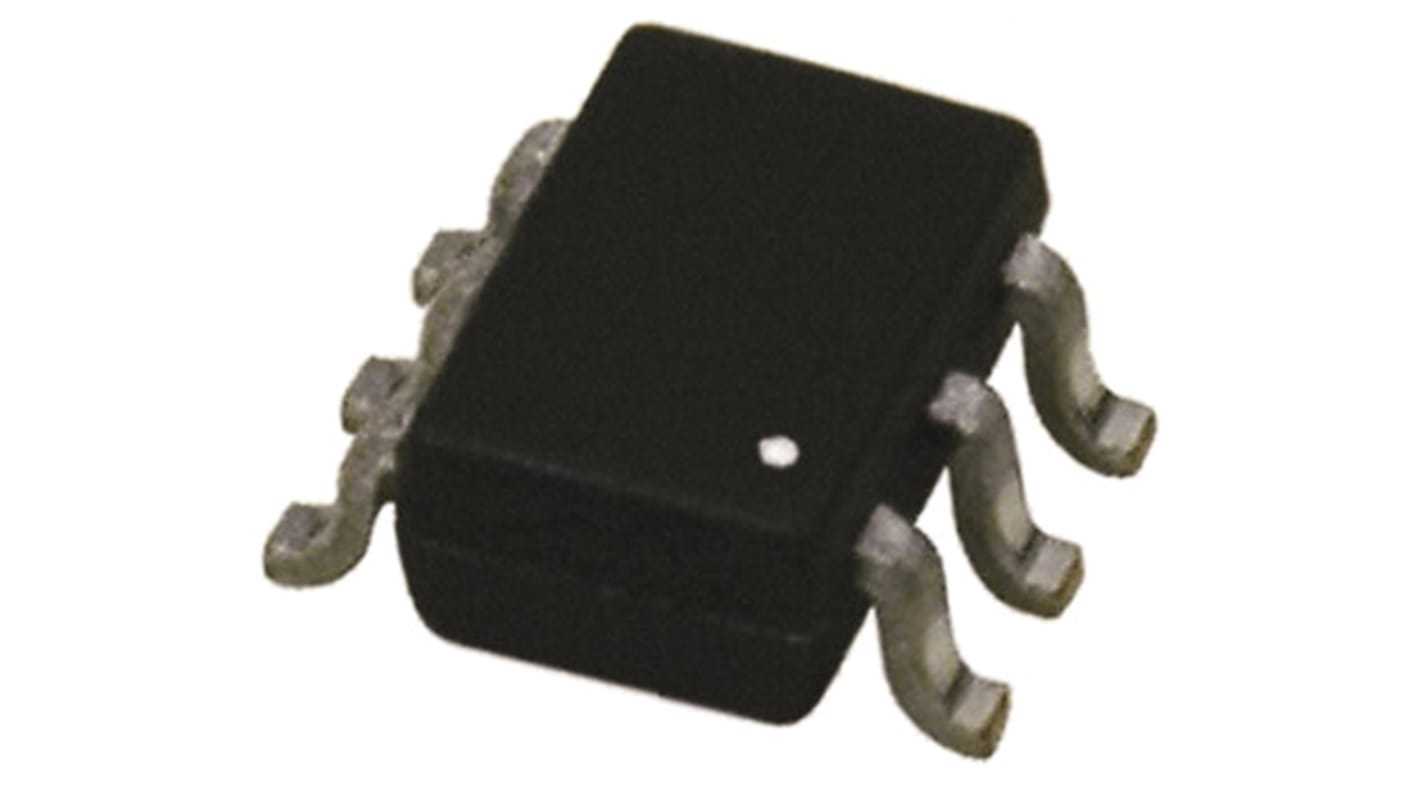

Infineon BCR10PNH6727XTSA1 Dual NPN + PNP Digital Transistor, 50 V, 6-Pin SOT-363
- RS Stock No.:
- 857-8249
- Mfr. Part No.:
- BCR10PNH6727XTSA1
- Brand:
- Infineon
Available to back order for despatch when stock is available
Added
Price Each (On a Reel of 3000)
£0.041
(exc. VAT)
£0.049
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 - 27000 | £0.041 | £123.00 |
| 30000 - 72000 | £0.039 | £117.00 |
| 75000 + | £0.031 | £93.00 |
| *price indicative | ||
- RS Stock No.:
- 857-8249
- Mfr. Part No.:
- BCR10PNH6727XTSA1
- Brand:
- Infineon
Technical Reference
Legislation and Compliance
Product Details
Dual Resistor Dual Digital Transistors, Infineon
Digital Transistors, Infineon
Resistor-equipped bipolar transistors, also known as “Digital Transistors” or “Bias Resistor Transistors”, incorporating one or two integrated resistors. A single series input resistor, or a potential divider of two resistors, allows these devices to be directly driven from digital sources. Both single and dual transistor versions are available.
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN + PNP |
| Maximum Collector Emitter Voltage | 50 V |
| Package Type | SOT-363 (SC-88) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 250 mW |
| Transistor Configuration | Isolated |
| Maximum Emitter Base Voltage | 10 V |
| Pin Count | 6 |
| Number of Elements per Chip | 2 |
| Maximum Operating Temperature | +150 °C |
| Typical Resistor Ratio | 1 |
| Typical Input Resistor | 10 kΩ |
| Dimensions | 2 x 1.25 x 0.8mm |
