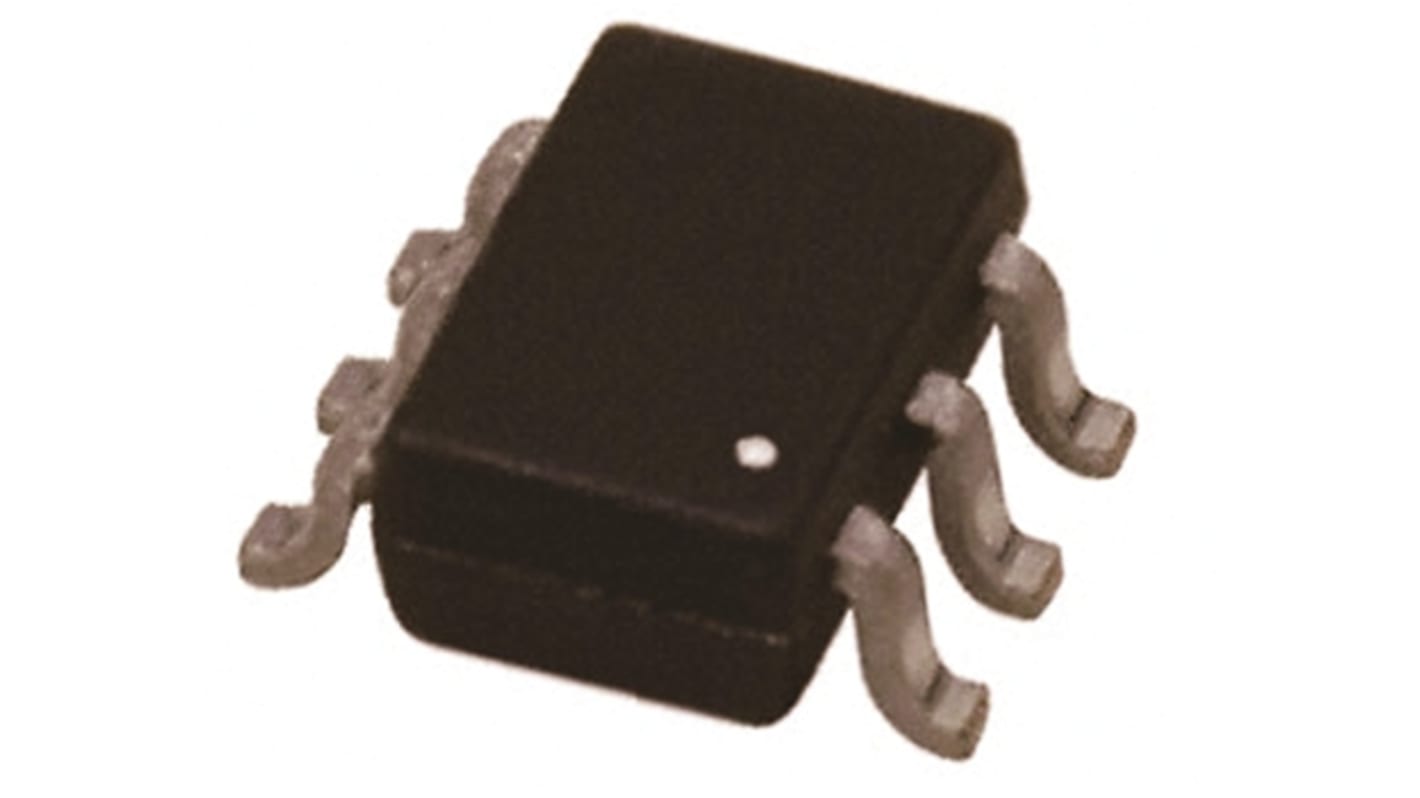

Nexperia PBLS2001D,115 Dual NPN + PNP Transistor, 1 A, 20 V, 6-Pin SOT-457 (SC-74)

View all Bipolar Transistors
Discontinued
RS Stock No.:
146-0884
Mfr. Part No.:
PBLS2001D,115
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Transistor Type

NPN + PNP

Maximum DC Collector Current

1 A

Maximum Collector Emitter Voltage

20 V

Package Type

SOT-457 (SC-74)

Mounting Type

Surface Mount

Maximum Power Dissipation

600 mW

Transistor Configuration

N+P Loadswitch

Maximum Collector Base Voltage

-20 V

Maximum Emitter Base Voltage

-5 V

Maximum Operating Frequency

100 MHz

Pin Count

6

Number of Elements per Chip

2

Maximum Operating Temperature

+150 °C

Dimensions

3.1 x 1.7 x 1.1mm

COO (Country of Origin):
MY

PBLS Series BISS Loadswitch, Nexperia


Low VCEsat (BISS) transistor and resistor-equipped transistor in one package
Low ’threshold’ voltage (<1V) compared to MOSFET
Low drive power required
Space-saving solution
Reduction of component count
SMT packages SOT363 (Y), SOT666 (V)


Bipolar Transistors, Nexperia
