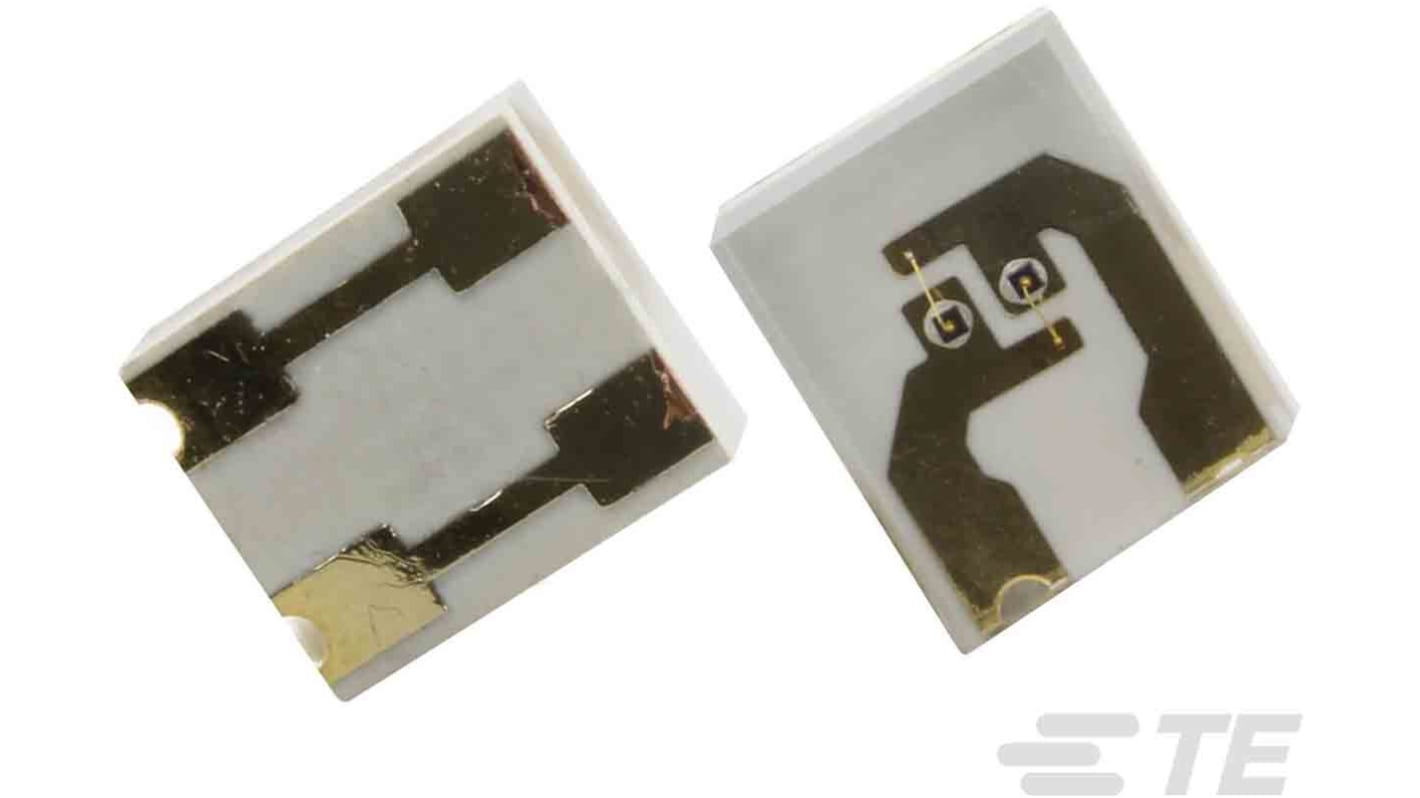

TE Connectivity 10104043-20 Biometric Sensor, 2-Pin
- RS Stock No.:
- 197-5283
- Mfr. Part No.:
- 10104043-20
- Brand:
- TE Connectivity
34 In stock - FREE next working day delivery available
Price Each (On a Tape of 100)
£6.147
(exc. VAT)
£7.376
(inc. VAT)
Units | Per unit | Per Tape* |
|---|---|---|
| 100 + | £6.147 | £614.70 |
*price indicative
- RS Stock No.:
- 197-5283
- Mfr. Part No.:
- 10104043-20
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details
TE Connectivity’s ELM-5001 series SMT optical emitter assembly provides leading accuracy in oxygen level detection. It is specially designed for medical applications where selection of peak wavelength and reflow solderability are key requirements. Emission source material is GaAIAs in conjunction with GaAIP complete with clear epoxy lens.
660nm ±3 nm Peak Wavelength Red LED
890nm IR Wavelength
Dual Drive
890nm IR Wavelength
Dual Drive
Specifications
Attribute | Value |
|---|---|
| Sensor Technology | Optical |
| Output Type | Analogue |
| Series | ELM-5001 |
| Mounting Type | Surface Mount |
| Pin Count | 2 |
| Maximum Operating Supply Voltage | 5 V |
| Minimum Operating Supply Voltage | 1.5 V |
| Maximum Operating Temperature | 80 °C |
| Minimum Operating Temperature | -20 °C |
| Dimensions | 4 x 4.8 x 1.2mm |
