Keysight Technologies Semi Rigid Cable for Use with Analyser Test Port

View this category

Subtotal (1 unit)*

£3,694.06

(exc. VAT)

£4,432.87

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£3,694.06

*price indicative

RS Stock No.:
475-500
Mfr. Part No.:
85133D
Brand:
Keysight Technologies
Find similar products by selecting one or more attributes.
Select all

Brand

Keysight Technologies

Accessory Type

Semi Rigid Cable

For Use With

Analyser Test Port

COO (Country of Origin):
MY

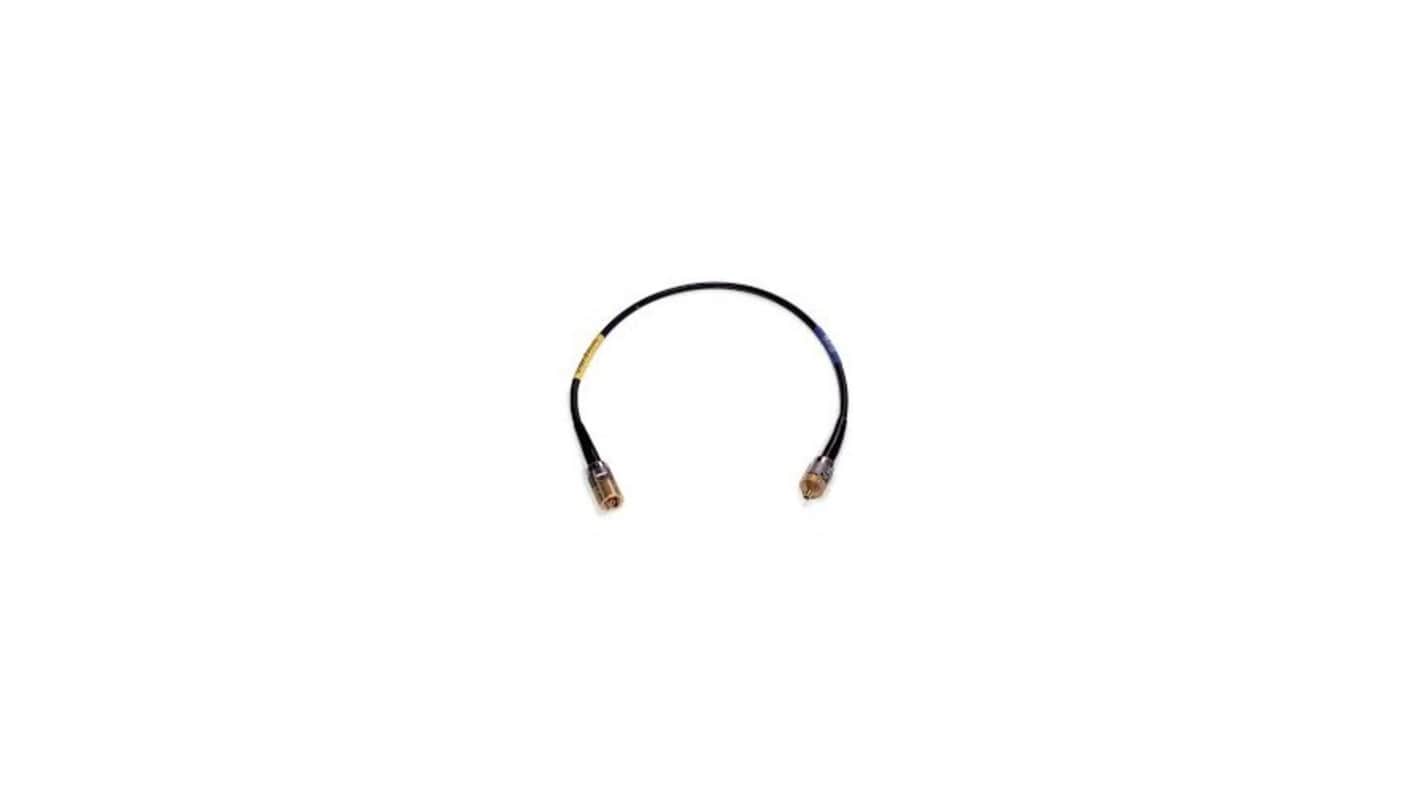

The Keysight Technologies 53 cm (21 in) long semi-rigid cable set composed of a 2.4 mm female to PSC-2.4 mm female connector and a 2.4 mm female2 to 2.4 mm male connector. Cable frequency range is dc to 50 GHz with a return loss of 15 dB or better. Insertion loss is 0.55 x sqrt (f) + 0.2, where f is frequency in GHz, for the test port connector and 3.7 dB at maximum frequency for the device connector. Phase stability of semi-rigid/flexible cables is specified with a 90 degree bend using a 4 to 3 inch radius. Stability of the Keysight is less than 0.06 dB and phase is 0.16 x f, where f is frequency in GHz.

Cable length and stability are supplemental characteristics
Special rugged female connector is designed specifically for connecting to the network analyser test port
