Keysight Technologies Flexible Cable for Use with Analyser Test Port

View this category

Subtotal (1 unit)*

£4,082.97

(exc. VAT)

£4,899.56

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£4,082.97

*price indicative

RS Stock No.:
475-510
Mfr. Part No.:
85135E
Brand:
Keysight Technologies
Find similar products by selecting one or more attributes.
Select all

Brand

Keysight Technologies

Accessory Type

Flexible Cable

For Use With

Analyser Test Port

COO (Country of Origin):
MY

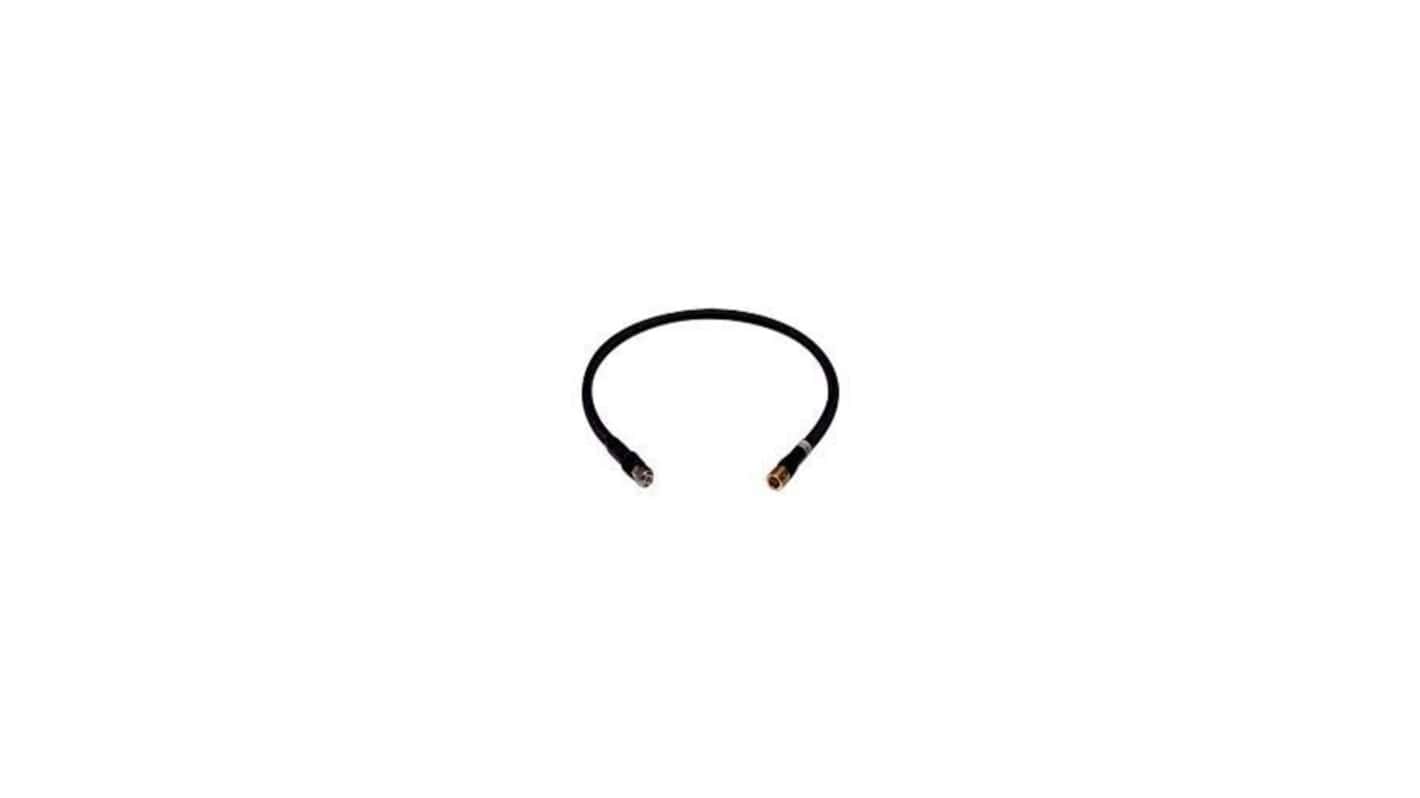

The Keysight Technologies 97.2 cm (38.25 in) long flexible cable with a 2.4 mm female to 7 mm connector. Cable frequency range is dc to 18 GHz with a return loss of 17 dB or better. Insertion loss is 0.46 x sqrt (f) + 0.3, where f is frequency in GHz, for the test port connector and 2.25 dB at maximum frequency for the device connector. Phase stability of semi-rigid/flexible cables is specified with a 90 degree bend using a 4 to 3 inch radius. Stability of the Keysight is less than 0.22 dB and phase is 0.16 x f + 0.8, where f is frequency in GHz.

Cable length and stability are supplemental characteristics
Special rugged female connector is designed specifically for connecting to the network analyser test port
