Keysight Technologies Semi Rigid Cable for Use with Analyser Test Port
- RS Stock No.:
- 475-487
- Mfr. Part No.:
- 85131C
- Brand:
- Keysight Technologies
Subtotal (1 unit)*
£1,869.87
(exc. VAT)
£2,243.84
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,869.87 |
*price indicative
- RS Stock No.:
- 475-487
- Mfr. Part No.:
- 85131C
- Brand:
- Keysight Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Keysight Technologies | |
| Accessory Type | Semi Rigid Cable | |
| For Use With | Analyser Test Port | |
Select all | ||
|---|---|---|
Brand Keysight Technologies | ||
Accessory Type Semi Rigid Cable | ||
For Use With Analyser Test Port | ||
- COO (Country of Origin):
- MY

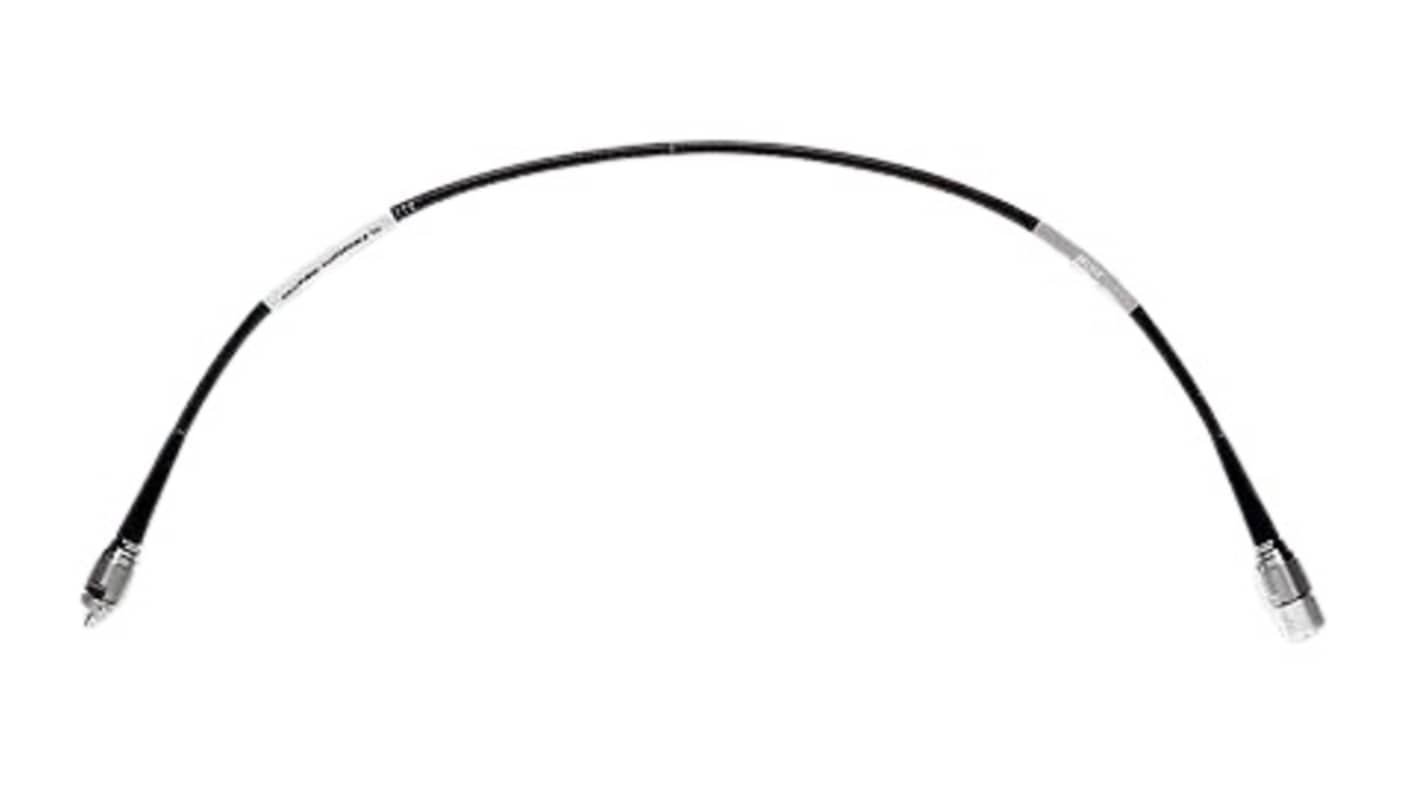

The Keysight Technologies 81 cm (32 in) long semi-rigid cable with a 3.5 mm female-to-PSC-3.5 mm female connector. Cable frequency range is DC to 26.5 GHz with a return loss of 17 dB or better. Insertion loss is 0.43 x sqrt(f) + 0.3, where f is frequency in gigahertz, for the test port connector and 2.5 dB at maximum frequency for the device connector. Phase stability of the semi-rigid and flexible cables is specified with a 90-degree bend using a 4 to 3-inch radius. Stability of the is less than 0.06 dB, and phase is 0.16 x f + 0.5, where f is frequency in gigahertz.
Cable length and stability are supplemental characteristics
Special rugged female connector links to the network analyser test port
Special rugged female connector links to the network analyser test port
