NSK-RHP Bearing Insert 25.4 mm ID 34 mm OD 1125-1
- RS Stock No.:
- 785-4952
- Mfr. Part No.:
- 1125-1
- Brand:
- NSK-RHP

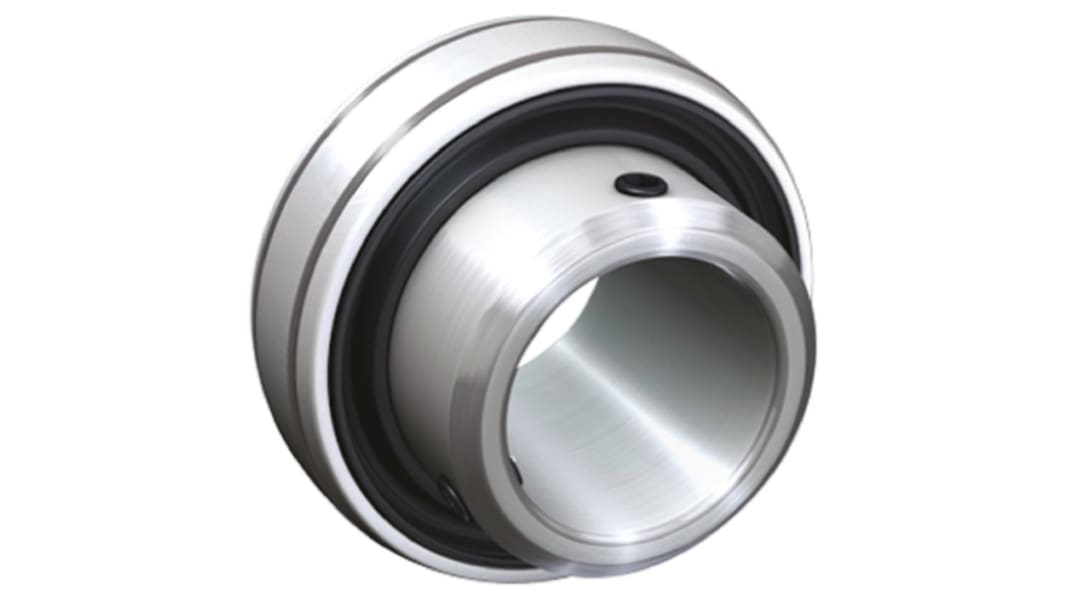

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£21.22
(exc. VAT)
£25.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £21.22 |
| 5 - 9 | £20.38 |
| 10 - 24 | £19.94 |
| 25 + | £19.53 |
*price indicative
- RS Stock No.:
- 785-4952
- Mfr. Part No.:
- 1125-1
- Brand:
- NSK-RHP
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | NSK-RHP | |
| Inside Diameter | 25.4 mm | |
| Product Type | Bearing Insert | |
| Outside Diameter | 34 mm | |
| Material | Cast Iron | |
| Static Load Rating | 7.88kN | |
| Locking Type | Set Screw | |
| Dynamic Load Rating | 14kN | |
| Standards/Approvals | No | |
| Bore Type | Cylindrical | |
| Series | 1100 | |
| Overall Width | 34.1mm | |
| Limiting Speed | 6250rpm | |
| Select all | ||
|---|---|---|
Brand NSK-RHP | ||
Inside Diameter 25.4 mm | ||
Product Type Bearing Insert | ||
Outside Diameter 34 mm | ||
Material Cast Iron | ||
Static Load Rating 7.88kN | ||
Locking Type Set Screw | ||
Dynamic Load Rating 14kN | ||
Standards/Approvals No | ||
Bore Type Cylindrical | ||
Series 1100 | ||
Overall Width 34.1mm | ||
Limiting Speed 6250rpm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Self-Lube Bearing Inserts
For use with self-lube sealed bearing units or with user's own housings. Bearings are secured onto the shaft with a set-screw lock. When the axial load exceeds the limiting value, a shoulder should be provided on the shaft for the bearing inner ring to abut against so that the axial load is not transmitted through the set screws
