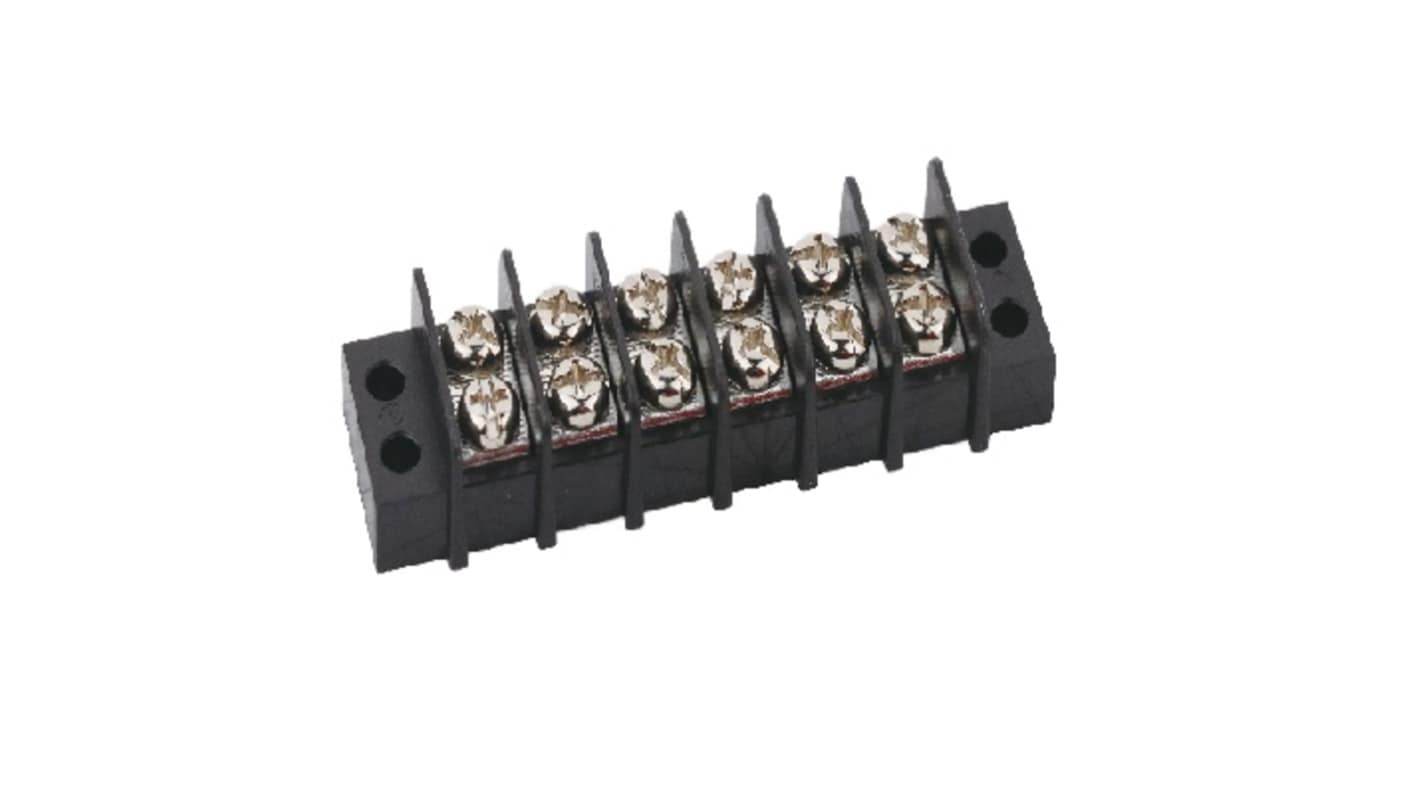

RS PRO Barrier Strip, 6 Contact, 6.35 mm Pitch, 2 Row, 300V, 20A
- RS Stock No.:
- 447-072
- Brand:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£1.30
(exc. VAT)
£1.56
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 151 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £1.30 |
| 10 - 24 | £1.19 |
| 25 + | £1.08 |
*price indicative
- RS Stock No.:
- 447-072
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 6 | |
| Product Type | Barrier Strip | |
| Pitch | 6.35mm | |
| Current | 20A | |
| Orientation | Straight | |
| Contact Material | Tin Plated Brass | |
| Housing Material | Polycarbonate | |
| Contact Plating | Zinc Plated | |
| Number of Rows | 2 | |
| Fixing Centres | 11.2 mm | |
| Screw Size | 4 → 2 mm² | |
| Wire Size | 12AWG, 22AWG | |
| Termination Type - Top | Screw | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Voltage | 300V | |
| Length | 74.2mm | |
| Depth | 38mm | |
| Standards/Approvals | cUL, CE | |
| Series | RS PRO | |
| Width | 21.8mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 6 | ||
Product Type Barrier Strip | ||
Pitch 6.35mm | ||
Current 20A | ||
Orientation Straight | ||
Contact Material Tin Plated Brass | ||
Housing Material Polycarbonate | ||
Contact Plating Zinc Plated | ||
Number of Rows 2 | ||
Fixing Centres 11.2 mm | ||
Screw Size 4 → 2 mm² | ||
Wire Size 12AWG, 22AWG | ||
Termination Type - Top Screw | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Voltage 300V | ||
Length 74.2mm | ||
Depth 38mm | ||
Standards/Approvals cUL, CE | ||
Series RS PRO | ||
Width 21.8mm | ||
- COO (Country of Origin):
- TW
The RS Pro Barrier strips contain stray or frayed wire ends and prevent electrical shorts between positions on the same block, as well as adjacent components. It has an operating temperature of -40 degree C to 105 degree C. It is used by binding head style and wire clamp screws, binding head screws are typically used with hardware such as QC tabs and jumpers.
Insulating Body PC
Tin Plated brass contacts and Zinc plated screws
Black colour
CE compliant
