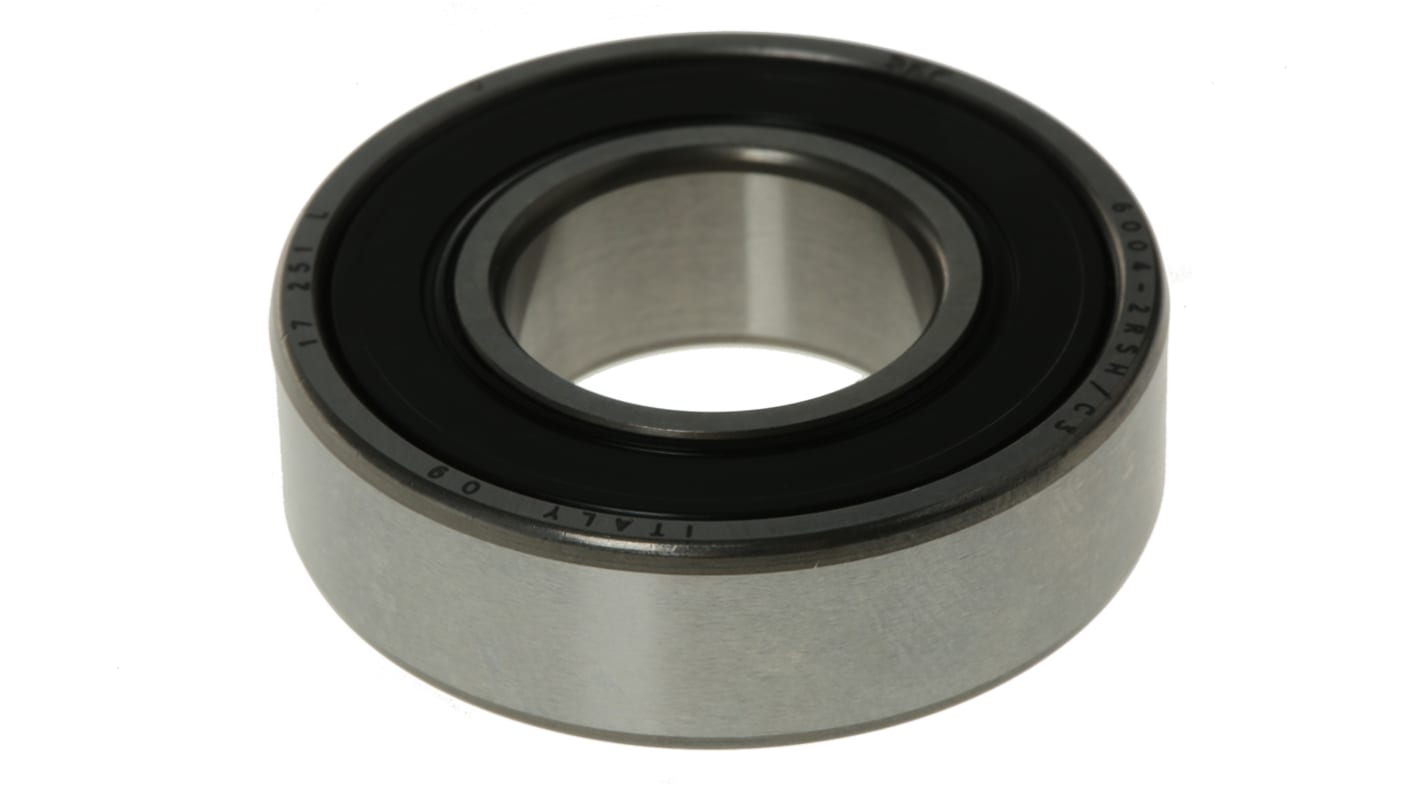

SKF 6004-2RSH/C3 1 Row Ball Bearing - 20 mm ID, 42 mm OD
- RS Stock No.:
- 667-1147
- Mfr. Part No.:
- 6004-2RSH/C3
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£5.86
(exc. VAT)
£7.03
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 256 unit(s) ready to ship
- Plus 79 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.86 |
| 5 - 9 | £5.60 |
| 10 - 24 | £5.51 |
| 25 + | £5.38 |
*price indicative
- RS Stock No.:
- 667-1147
- Mfr. Part No.:
- 6004-2RSH/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Product Type | Ball Bearing | |
| Inside Diameter | 20 mm | |
| Outside Diameter | 42 mm | |
| Race Width | 12mm | |
| Cage Material | Sheet Metal | |
| Ball Material | Steel | |
| End Type | Sealed | |
| Number of Rows | 1 | |
| Internal Clearance | C3 | |
| Static Load Rating | 5kN | |
| Dynamic Load Rating | 9.95kN | |
| Standards/Approvals | No | |
| Series | 6004 | |
| Bore Type | Parallel | |
| Limiting Speed | 11000rpm | |
| Bearing Type | Single Row Deep Groove Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Product Type Ball Bearing | ||
Inside Diameter 20 mm | ||
Outside Diameter 42 mm | ||
Race Width 12mm | ||
Cage Material Sheet Metal | ||
Ball Material Steel | ||
End Type Sealed | ||
Number of Rows 1 | ||
Internal Clearance C3 | ||
Static Load Rating 5kN | ||
Dynamic Load Rating 9.95kN | ||
Standards/Approvals No | ||
Series 6004 | ||
Bore Type Parallel | ||
Limiting Speed 11000rpm | ||
Bearing Type Single Row Deep Groove Ball | ||
Race Type Plain | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
SKF Shielded Deep-Groove Ball Bearing, 20mm ID, 42mm OD - 6004-2RSH/C3
This versatile ball bearing from SKF is well-suited to most rotational equipment. You can use it in radial or axial load applications to achieve high rotational speeds with minimal friction. The bearing forms part of the SKF Explorer range of bearings, which are designed to significantly raise power density while maintaining reliability. Its low heat generation ensures a long service life and improves the efficiency of your equipment. This bearing's compact outer diameter of 42mm and slim race width of 12mm make it well-suited to smaller modern machines.
• Synthetic rubber seals stop lubricant from escaping, making for a maintenance-free component that doesn't need to be re-greased
• Robust steel cage for durability and corrosion resistance in harsh environments
• Wide operating temperature range of -40°C to +120°C for use in demanding environments
Applications
• Medical equipment manufacturing
• Paper and pulp mills
• Automotive assembly lines
What environment is best suited to a sealed bearing?
A sealed bearing is a good choice for dusty or dirty indoor and outdoor work environments. The seals stop debris and other contaminants from entering the bearing, reducing the risk of interference with proper functioning.
