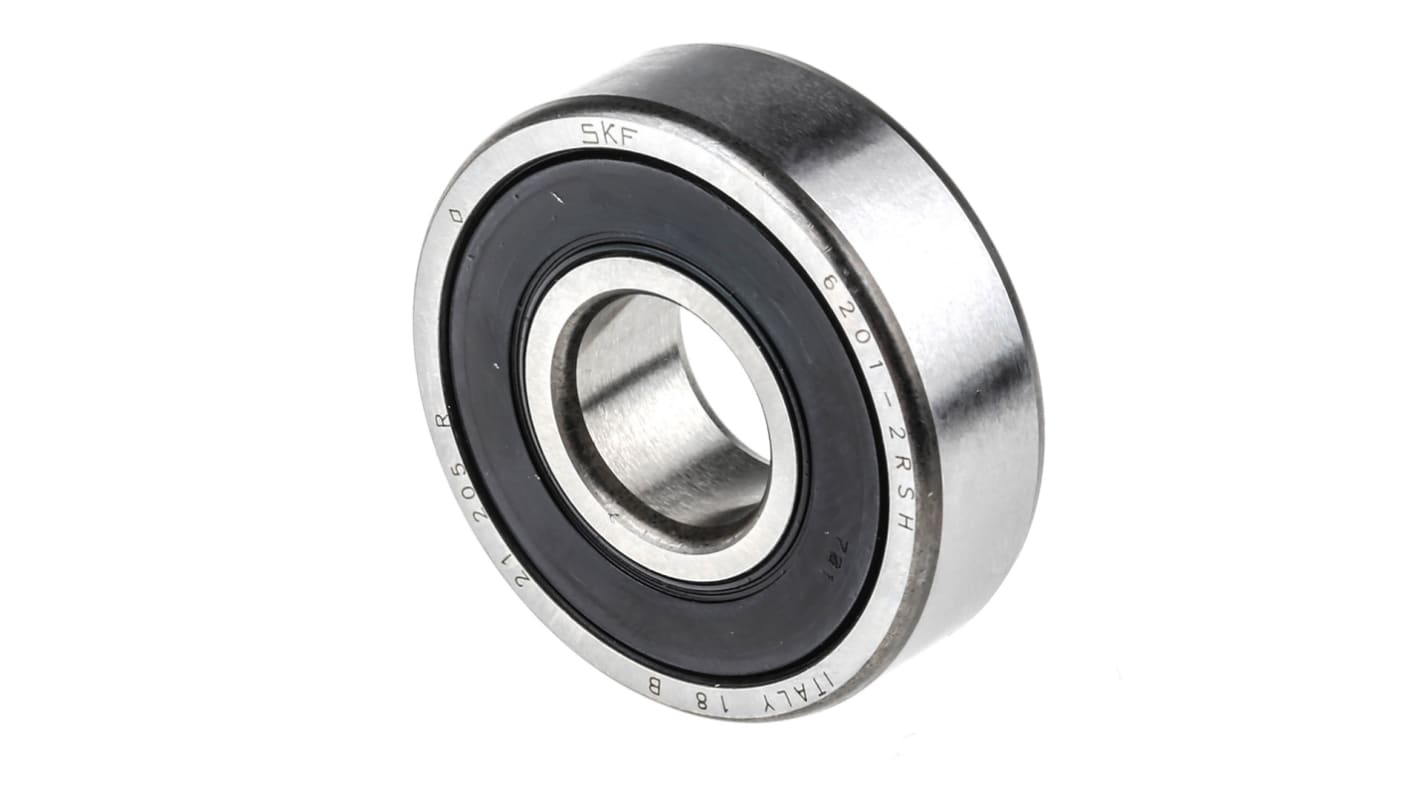

SKF 6201-2RSH Single Row Deep Groove Ball Bearing- Both Sides Sealed 12mm I.D, 32mm O.D
- RS Stock No.:
- 442-0183
- Mfr. Part No.:
- 6201-2RSH
- Brand:
- SKF
Bulk discount available
Subtotal (1 unit)*
£5.17
(exc. VAT)
£6.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 358 unit(s) ready to ship
- Plus 299 unit(s) ready to ship from another location
- Plus 999,999,641 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £5.17 |
5 - 9 | £4.97 |
10 - 24 | £4.86 |
25 + | £4.77 |
*price indicative
- RS Stock No.:
- 442-0183
- Mfr. Part No.:
- 6201-2RSH
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 12mm | |
Outside Diameter | 32mm | |
Race Width | 10mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 3.1kN | |
Dynamic Load Rating | 7.28kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Model Number p | 62012RS | |
Race Type | Plain | |
Partial Bearing Code | 6201 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 12mm | ||
Outside Diameter 32mm | ||
Race Width 10mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 3.1kN | ||
Dynamic Load Rating 7.28kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Model Number p 62012RS | ||
Race Type Plain | ||
Partial Bearing Code 6201 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- IT
SKF Deep-groove Ball Bearing, Plain Race Type, 12 mm ID - 6201-2RSH
This SKF deep-groove ball bearing offers a simple, reliable way to accommodate radial and axial loads in your structures or equipment. Its stainless-steel material is strong and resistant to corrosion, ensuring a long lifespan. It also has a broad operating temperature range of -40°C to +120°C, making it suitable for use in demanding conditions. As the unit comes pre-lubricated, you won't need to regrease it, even with constant use.
• Parallel bore type
• Dynamic load rating of 7.28 kN
• Static load rating of 3.1 kN
• Sealed end type
• Inside diameter of 12 mm
• Outside diameter of 32 mm
• Single row
• Plain race type
• Race width of 10 mm
• Dynamic load rating of 7.28 kN
• Static load rating of 3.1 kN
• Sealed end type
• Inside diameter of 12 mm
• Outside diameter of 32 mm
• Single row
• Plain race type
• Race width of 10 mm
Application Information
• Food production
• Pharmaceutical and medical equipment
• Industrial engineering
• Pharmaceutical and medical equipment
• Industrial engineering
Can the bearing handle high speeds?
The bearing has a deep groove that allows the balls to support very high levels of torque. This lets your equipment function at high speeds with minimal friction.
How does the bearing resist corrosion?
Thanks to the two nitrile butadiene rubber (NBR) seals, the bearing is protected from moisture or small particles. The seals also keep the lubricant inside the bearing for reduced wear.
