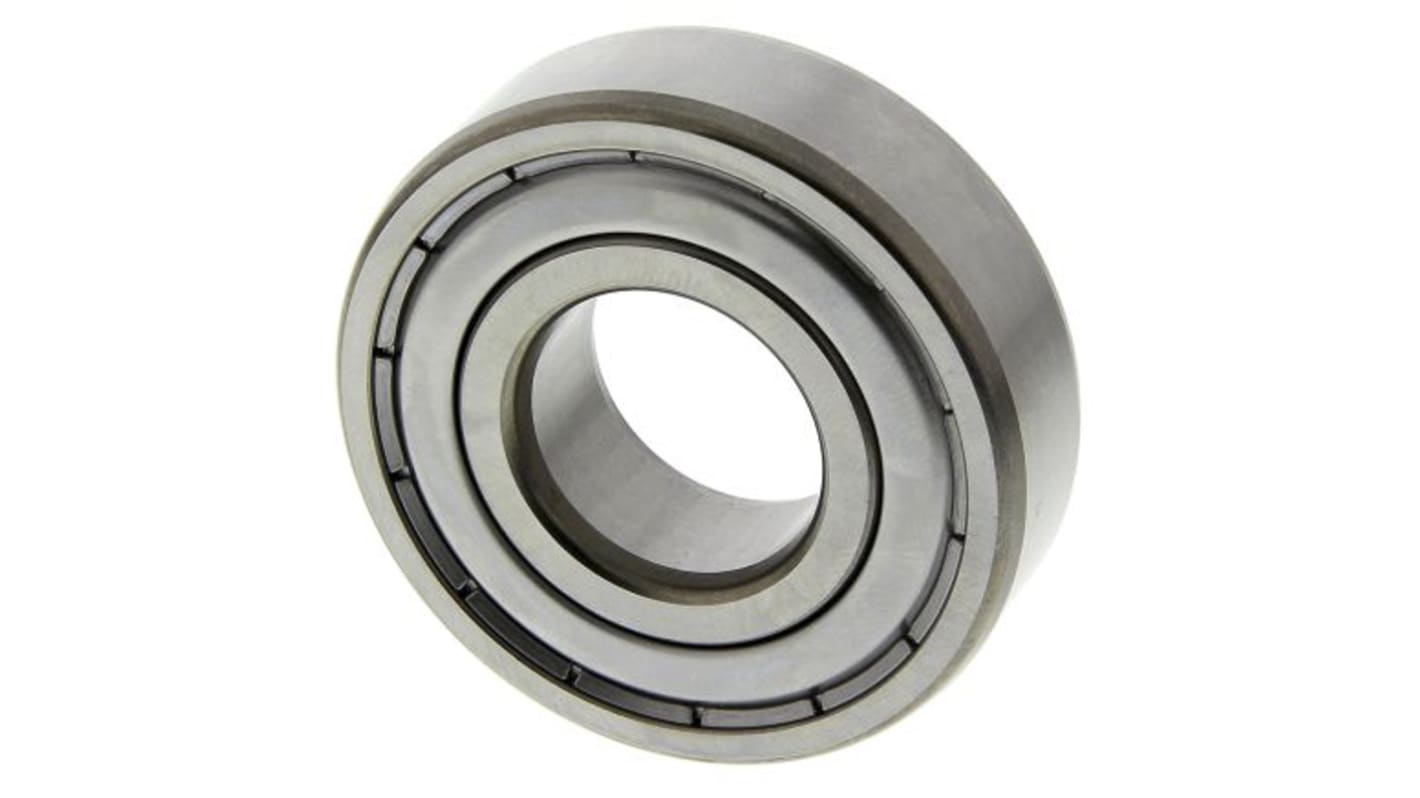

SKF 6304-2Z Single Row Deep Groove Ball Bearing- Both Sides Shielded 20mm I.D, 52mm O.D
- RS Stock No.:
- 286-8246
- Mfr. Part No.:
- 6304-2Z
- Brand:
- SKF
Save 8% when you buy 25 units
Subtotal (1 unit)*
£7.00
(exc. VAT)
£8.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 131 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £7.00 |
5 - 9 | £6.73 |
10 - 24 | £6.61 |
25 + | £6.43 |
*price indicative
- RS Stock No.:
- 286-8246
- Mfr. Part No.:
- 6304-2Z
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 20mm | |
Outside Diameter | 52mm | |
Race Width | 15mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Shielded | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 7.8kN | |
Dynamic Load Rating | 16.8kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Model Number p | 63042Z | |
Partial Bearing Code | 6304 | |
Race Type | Plain | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 20mm | ||
Outside Diameter 52mm | ||
Race Width 15mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Shielded | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 7.8kN | ||
Dynamic Load Rating 16.8kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Model Number p 63042Z | ||
Partial Bearing Code 6304 | ||
Race Type Plain | ||
- COO (Country of Origin):
- BG
SKF Ball Bearing, Deep-Grooove Bearing Type, 1 Row, 20mm ID, 52mm OD - 6304-2Z
Keep your conveyor belt smoothly sliding along with this SKF deep-groove ball bearing. The versatile component is designed to handle axial and radial loads and rotates in both a forward and backward direction. Seals on both ends keep out airborne contaminants, so it's a good match for harsh industrial settings. The seals also ensure lubricant stays locked inside, so there's no need to worry about frequent maintenance. Thanks to the unit's reduced friction, you can count on its minimal power loss, which helps to keep equipment operating efficiently.
Features & Benefits
• Limiting speed of 15,000r/min offers fast rotations without generating excessive heat
• Environmentally friendly, as its enhanced surface finish extends its lubricant life
• Low vibration and noise help to keep equipment running quietly
• Comes pre-lubricated, making it ready for immediate use
• Environmentally friendly, as its enhanced surface finish extends its lubricant life
• Low vibration and noise help to keep equipment running quietly
• Comes pre-lubricated, making it ready for immediate use
Applications
• Cranes and pulleys
• Medical and pharmaceutical industries
• Mining and minerals processing
• Automated assembly lines
• Medical and pharmaceutical industries
• Mining and minerals processing
• Automated assembly lines
What material is this bearing made from?
The component is made from tough bearing steel that withstands abrasion and wear for an extended lifespan. This metal is also corrosion-resistant, so it's a good choice for humid environments.
