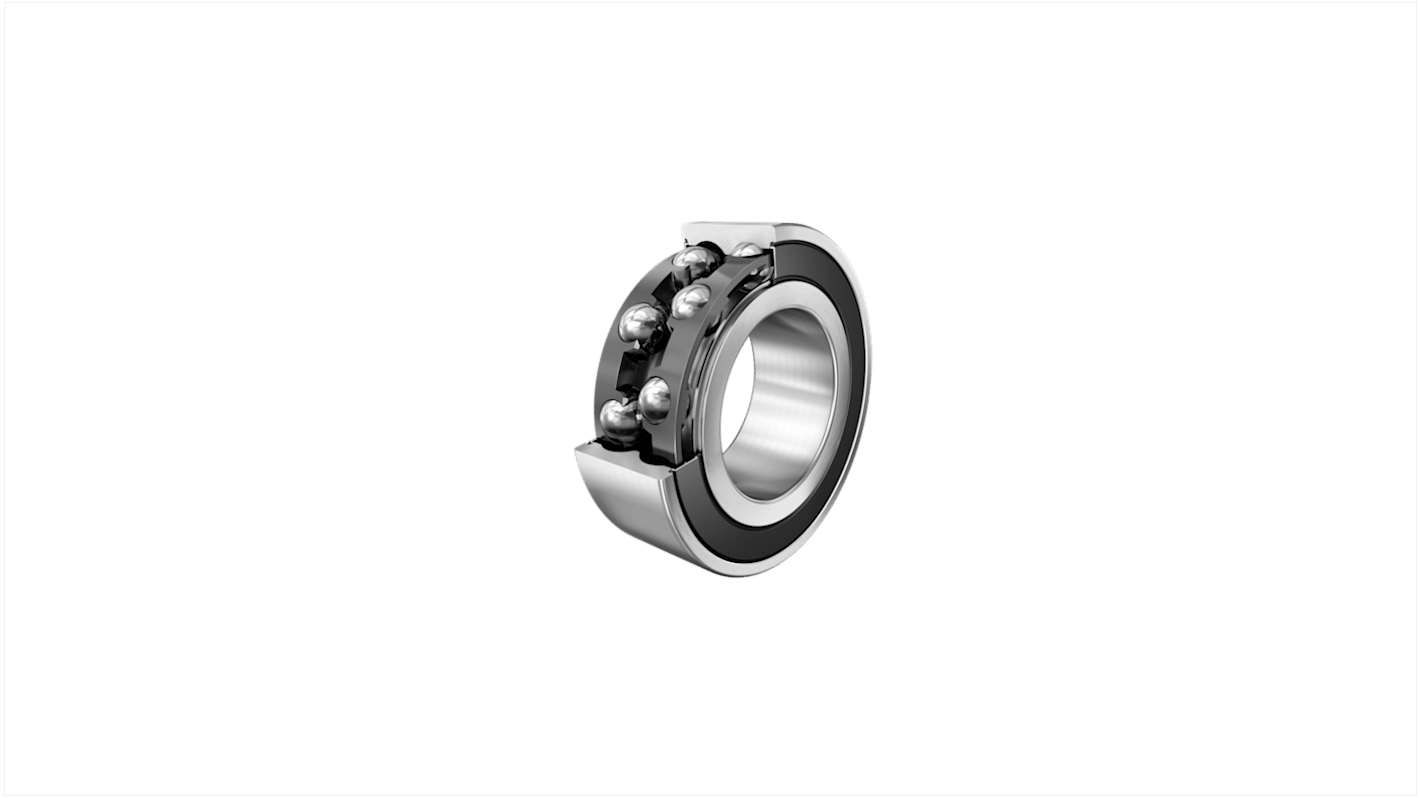

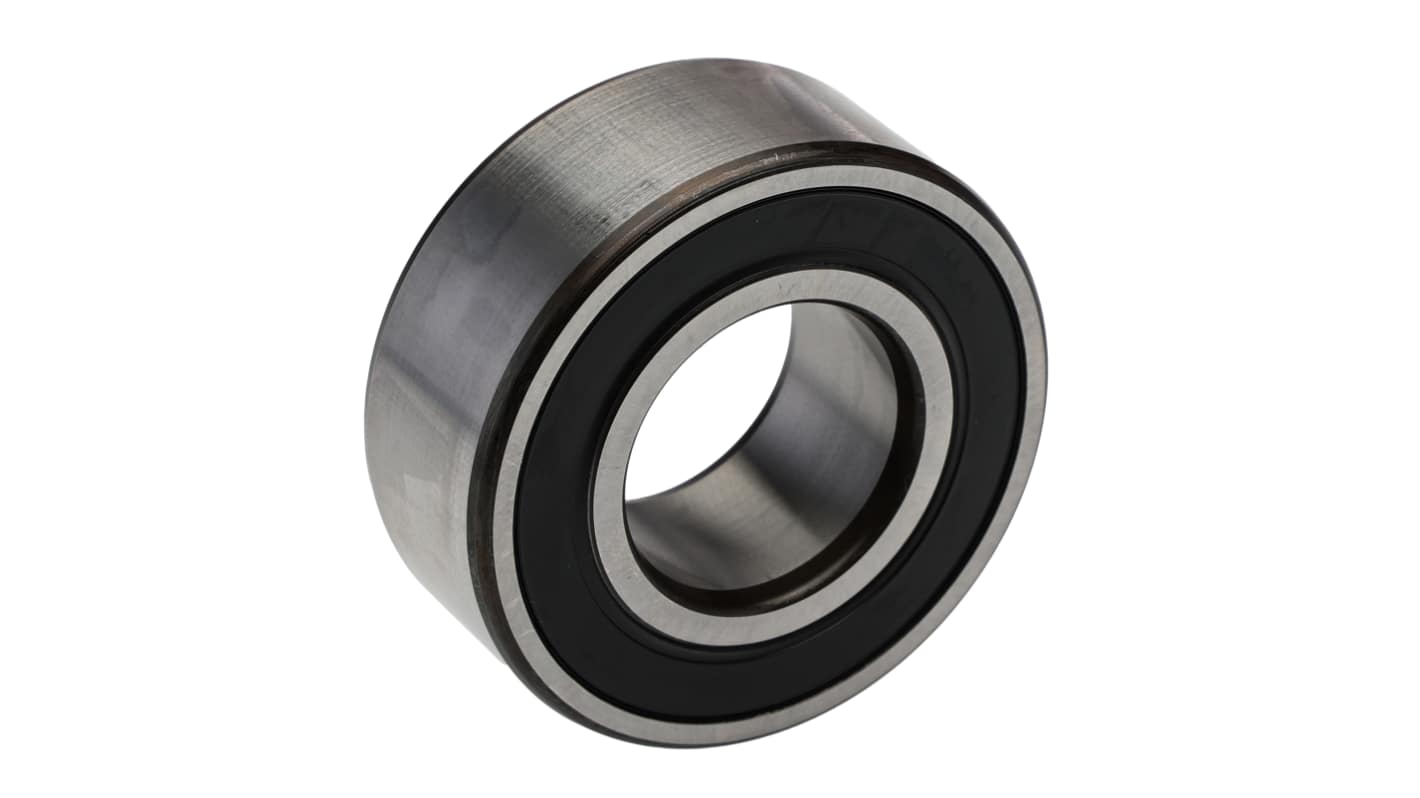

FAG 3205-BD-XL-2HRS-TVH-C3 Double Row Angular Contact Ball Bearing- Both Sides Sealed 25mm I.D, 52mm O.D
- RS Stock No.:
- 260-0760
- Mfr. Part No.:
- 3205-BD-XL-2HRS-TVH-C3
- Brand:
- FAG
Subtotal (1 unit)*
£48.06
(exc. VAT)
£57.67
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 8 unit(s) shipping from 11 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £48.06 |
*price indicative
- RS Stock No.:
- 260-0760
- Mfr. Part No.:
- 3205-BD-XL-2HRS-TVH-C3
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 25mm | |
Outside Diameter | 52mm | |
Race Width | 20.6mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Polyamide | |
Number of Rows | 2 | |
Static Load Rating | 15.2kN | |
Dynamic Load Rating | 22kN | |
Bore Type | Parallel | |
Clearance Code | C3 | |
Bearing Series | 2 Light | |
Race Type | Plain | |
Partial Bearing Code | 3205 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 25mm | ||
Outside Diameter 52mm | ||
Race Width 20.6mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Polyamide | ||
Number of Rows 2 | ||
Static Load Rating 15.2kN | ||
Dynamic Load Rating 22kN | ||
Bore Type Parallel | ||
Clearance Code C3 | ||
Bearing Series 2 Light | ||
Race Type Plain | ||
Partial Bearing Code 3205 | ||
- COO (Country of Origin):
- SK
Schaeffler Angular Contact Ball Bearing, 25mm Inside Diameter, 52mm Outside Diameter - 3205-BD-XL-2HRS-TVH-C3
This angular contact ball bearing is designed for high-performance applications, featuring a robust double row design. With an inside diameter of 25mm and an outside diameter of 52mm, this bearing provides excellent durability and reliability. The bearing is fully sealed on both sides, ensuring long-lasting operation even in challenging environments.
Features & Benefits
• Robust double row design enhances load capacity
• Sealed construction protects against contaminants
• C3 bearing clearance accommodates thermal expansion
• Made from high-quality steel for extended lifespan
• Sealed construction protects against contaminants
• C3 bearing clearance accommodates thermal expansion
• Made from high-quality steel for extended lifespan
Applications
• Used in automation systems for precise movement
• Ideal for electric motors requiring sturdy bearings
• Suitable for heavy machinery needing enhanced load support
• Can be utilised in robotics for accurate positioning
• Effective in conveyors where reliability is crucial
• Ideal for electric motors requiring sturdy bearings
• Suitable for heavy machinery needing enhanced load support
• Can be utilised in robotics for accurate positioning
• Effective in conveyors where reliability is crucial
What load ratings can one expect from this product?
The basic dynamic load rating is 22,000 N, while the static load rating is 15,200 N, providing robust support for various applications.
How does the sealing arrangement benefit its performance?
The dual-sealed construction minimises the ingress of dirt and moisture, enhancing reliability and reducing maintenance needs.
What is the operating temperature range for this bearing?
It can function effectively within a temperature range of -20°C to 100°C, making it versatile for different environmental conditions.
What type of cage material is used and why is it beneficial?
It features a polyamide cage, which reduces friction and minimises wear, contributing to improved performance and longevity.
