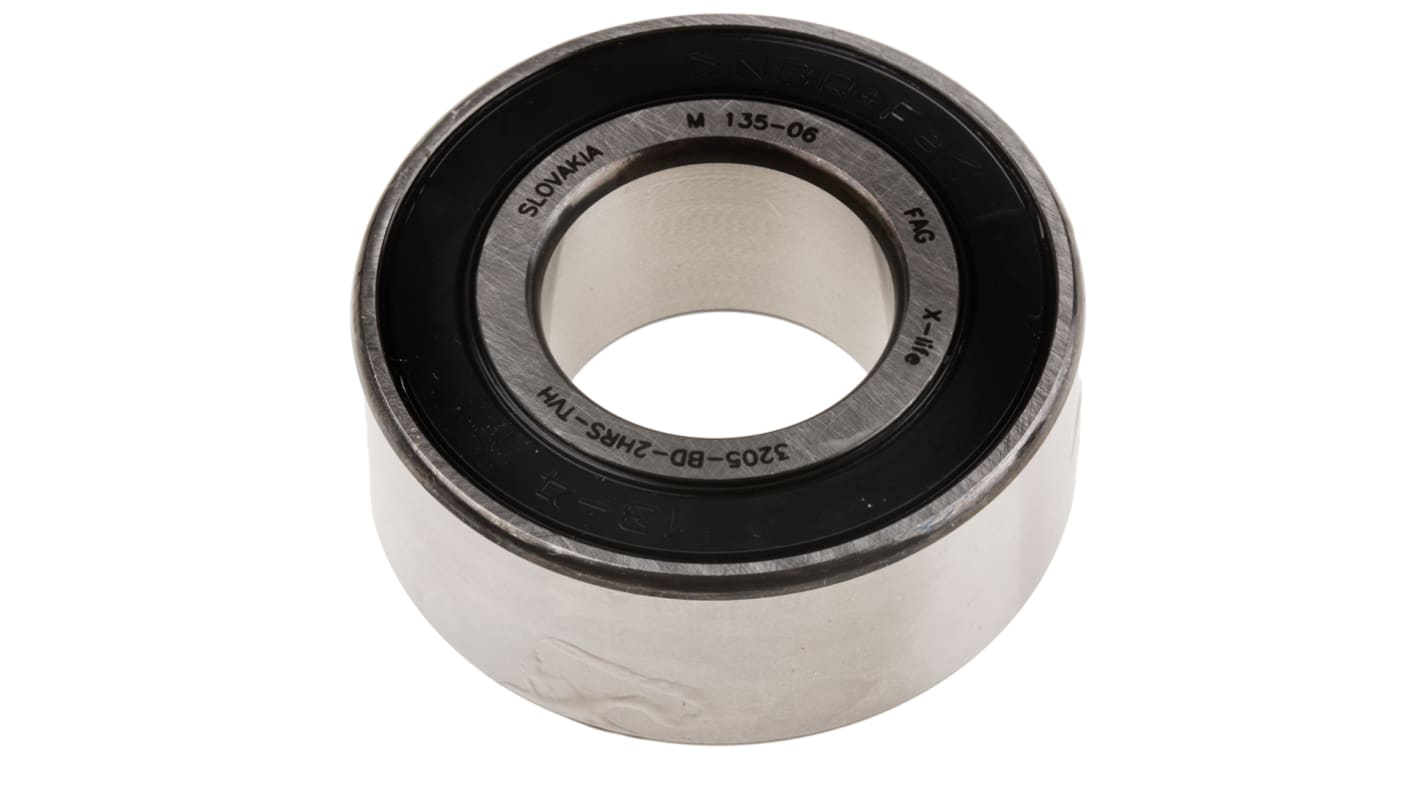

FAG 3205-BD-XL-2HRS-TVH Double Row Angular Contact Ball Bearing- Both Sides Sealed 25mm I.D, 52mm O.D
- RS Stock No.:
- 137-1504
- Mfr. Part No.:
- 3205-BD-XL-2HRS-TVH
- Brand:
- FAG
Bulk discount available
Subtotal (1 unit)*
£48.06
(exc. VAT)
£57.67
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £48.06 |
5 - 9 | £46.14 |
10 - 24 | £45.18 |
25 + | £44.21 |
*price indicative
- RS Stock No.:
- 137-1504
- Mfr. Part No.:
- 3205-BD-XL-2HRS-TVH
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | FAG | |
Inside Diameter | 25mm | |
Outside Diameter | 52mm | |
Race Width | 20.6mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Polyamide | |
Number of Rows | 2 | |
Static Load Rating | 15.2kN | |
Dynamic Load Rating | 22kN | |
Bore Type | Parallel | |
Bearing Series | 2 Light | |
Race Type | Plain | |
Partial Bearing Code | 3205 | |
Select all | ||
---|---|---|
Brand FAG | ||
Inside Diameter 25mm | ||
Outside Diameter 52mm | ||
Race Width 20.6mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Polyamide | ||
Number of Rows 2 | ||
Static Load Rating 15.2kN | ||
Dynamic Load Rating 22kN | ||
Bore Type Parallel | ||
Bearing Series 2 Light | ||
Race Type Plain | ||
Partial Bearing Code 3205 | ||
Schaeffler 2 Light Series Angular Contact Ball Bearing, 25mm Inside Diameter, 52mm Outside Diameter - 3205-BD-XL-2HRS-TVH
This angular contact ball bearing is designed for optimal performance in various applications. With an inside diameter of 25mm and an outside diameter of 52mm, it accommodates axial loads while allowing rotational movement. This steel ball bearing features a sealed design on both sides to prevent contamination and enhance longevity.
Features & Benefits
• Double row design improves axial and radial load capacity
• Sealed on both sides to protect against dirt and moisture
• Steel construction provides robust durability under high loads
• Polyamide cage reduces friction and enhances performance
• Static load rating of 15.2 kN ensures reliable operation
• Suitable for parallel bore applications for versatile installation
• Sealed on both sides to protect against dirt and moisture
• Steel construction provides robust durability under high loads
• Polyamide cage reduces friction and enhances performance
• Static load rating of 15.2 kN ensures reliable operation
• Suitable for parallel bore applications for versatile installation
Applications
• Used in automation systems for efficient motion control
• Ideal for electrical motors requiring high load capacity
• Utilised in mechanical assemblies demanding precision performance
• Effective in robotics for seamless movement and stability
• Ideal for electrical motors requiring high load capacity
• Utilised in mechanical assemblies demanding precision performance
• Effective in robotics for seamless movement and stability
What are the dynamic load characteristics of this bearing?
The dynamic load rating of this bearing is 22 kN, making it suitable for applications involving continuous movement under load.
How does the sealing arrangement enhance the reliability of this bearing?
Both sides of the bearing are sealed to prevent ingress of contaminants, thus ensuring longer service life and reduced maintenance.
What materials are used in the construction of this bearing?
The ball bearing is made of high-quality steel, while the cage is manufactured from polyamide, combining strength and weight efficiency.
