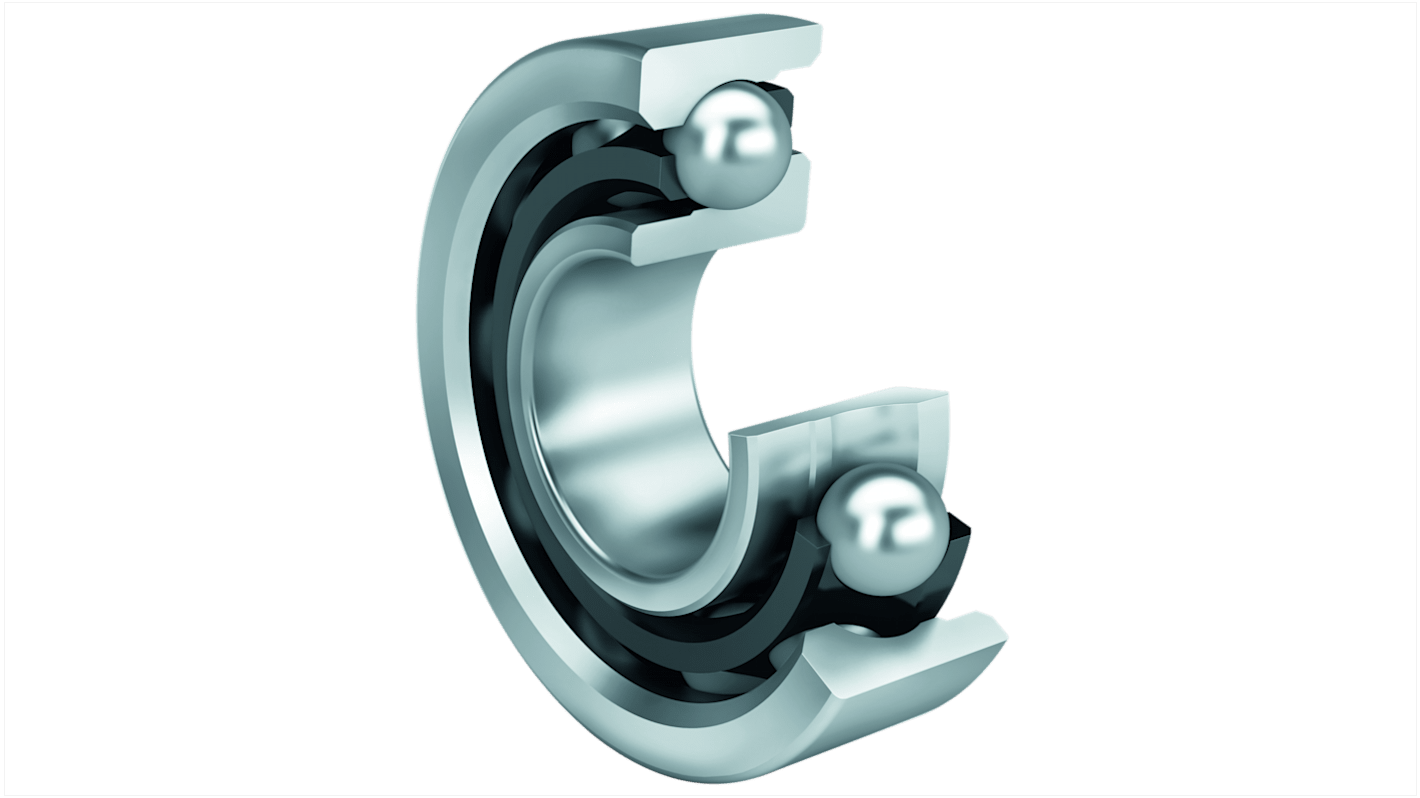

FAG 7210-B-XL-TVP-UO 1 Row Ball Bearing - 50 mm ID, 90 mm OD 20 mm Race Width
- RS Stock No.:
- 260-0496
- Mfr. Part No.:
- 7210-B-XL-TVP-UO
- Brand:
- FAG
Subtotal (1 unit)*
£97.95
(exc. VAT)
£117.54
(inc. VAT)
FREE delivery for orders over £60.00
- Plus 2 unit(s) shipping from 23 November 2026
Units | Per unit |
|---|---|
| 1 + | £97.95 |
*price indicative
Our Better World range features products that make it easy for you to make a greener product choice you can trust.
Learn more about RS Better World products
- RS Stock No.:
- 260-0496
- Mfr. Part No.:
- 7210-B-XL-TVP-UO
- Brand:
- FAG
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Product Type | Ball Bearing | |
| Inside Diameter | 50mm | |
| Outside Diameter | 90mm | |
| Race Width | 20mm | |
| Cage Material | Fibreglass Reinforced Polyamide | |
| Race Material | Steel | |
| End Type | Unsealed | |
| Number of Rows | 1 | |
| Static Load Rating | 28500N | |
| Internal Clearance | CN | |
| Contact Angle | 40° | |
| Dynamic Load Rating | 41500N | |
| Bore Type | Parallel | |
| Series | 72 | |
| Standards/Approvals | ISO 492:2023 | |
| Limiting Speed | 10300rpm | |
| Better World Product | Yes | |
| Better World Claim | Extended Product Life, Saves Energy | |
| Bearing Type | Single Row Angular Contact Ball | |
| Race Type | Plain | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Product Type Ball Bearing | ||
Inside Diameter 50mm | ||
Outside Diameter 90mm | ||
Race Width 20mm | ||
Cage Material Fibreglass Reinforced Polyamide | ||
Race Material Steel | ||
End Type Unsealed | ||
Number of Rows 1 | ||
Static Load Rating 28500N | ||
Internal Clearance CN | ||
Contact Angle 40° | ||
Dynamic Load Rating 41500N | ||
Bore Type Parallel | ||
Series 72 | ||
Standards/Approvals ISO 492:2023 | ||
Limiting Speed 10300rpm | ||
Better World Product Yes | ||
Better World Claim Extended Product Life, Saves Energy | ||
Bearing Type Single Row Angular Contact Ball | ||
Race Type Plain | ||
- COO (Country of Origin):
- DE
Schaeffler Series 72 Ball Bearing, 50mm Inside Diameter, 20mm Race Width - 7210-B-XL-TVP-UO
Features and Benefits:
• 28,500 N static load rating resists heavy static forces effectively
• 10,300 rpm limiting speed enables sustained moderate-speed rotation
• Fibreglass-reinforced polyamide cage reduces friction and wear
• CN internal clearance allows controlled axial preload arrangements
Applications
• Suitable for machine tool thrust and radial combined loading
• Ideal for gearboxes with unsealed bearing housings
• Can be used for precision rotary indexing devices
• Used with parallel-shaft arrangements demanding axial support
What bore configuration does the product use?
What materials make up the running surfaces?
How is the cage constructed and why does it matter?
What internal clearance class is specified?
