FAG 7212-B-XL-TVP-UO 1 Row Ball Bearing - 60 mm ID, 110 mm OD 22 mm Race Width
- RS Stock No.:
- 260-0497
- Mfr. Part No.:
- 7212-B-XL-TVP-UO
- Brand:
- FAG
Subtotal (1 unit)*
£98.82
(exc. VAT)
£118.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £98.82 |
*price indicative
- RS Stock No.:
- 260-0497
- Mfr. Part No.:
- 7212-B-XL-TVP-UO
- Brand:
- FAG
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FAG | |
| Inside Diameter | 60 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 110 mm | |
| Race Width | 22mm | |
| Cage Material | Polyamide | |
| Race Material | Steel | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Contact Angle | 40° | |
| Static Load Rating | 45kN | |
| Internal Clearance | 0 to 12 μm (min to max) | |
| Dynamic Load Rating | 62kN | |
| Standards/Approvals | No | |
| Bore Type | Parallel | |
| Series | X-life | |
| Limiting Speed | 8300rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Angular Contact Ball | |
| Select all | ||
|---|---|---|
Brand FAG | ||
Inside Diameter 60 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 110 mm | ||
Race Width 22mm | ||
Cage Material Polyamide | ||
Race Material Steel | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Contact Angle 40° | ||
Static Load Rating 45kN | ||
Internal Clearance 0 to 12 μm (min to max) | ||
Dynamic Load Rating 62kN | ||
Standards/Approvals No | ||
Bore Type Parallel | ||
Series X-life | ||
Limiting Speed 8300rpm | ||
Race Type Plain | ||
Bearing Type Single Row Angular Contact Ball | ||
- COO (Country of Origin):
- DE

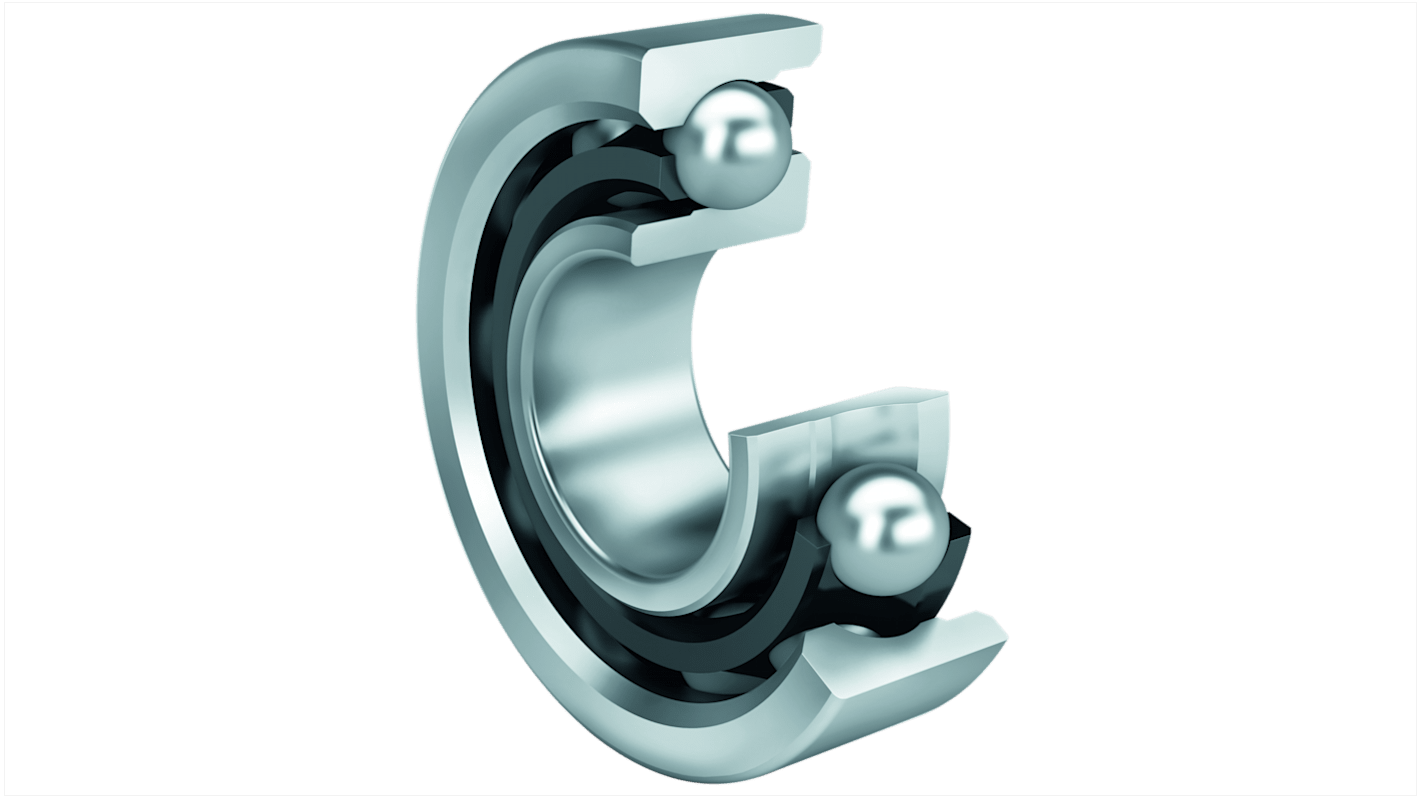

The FAG angular contact ball bearing has 60 mm bore diameter and 22 mm width with 40 degree contact angle.
Operating temperature -30 to 120 °C
