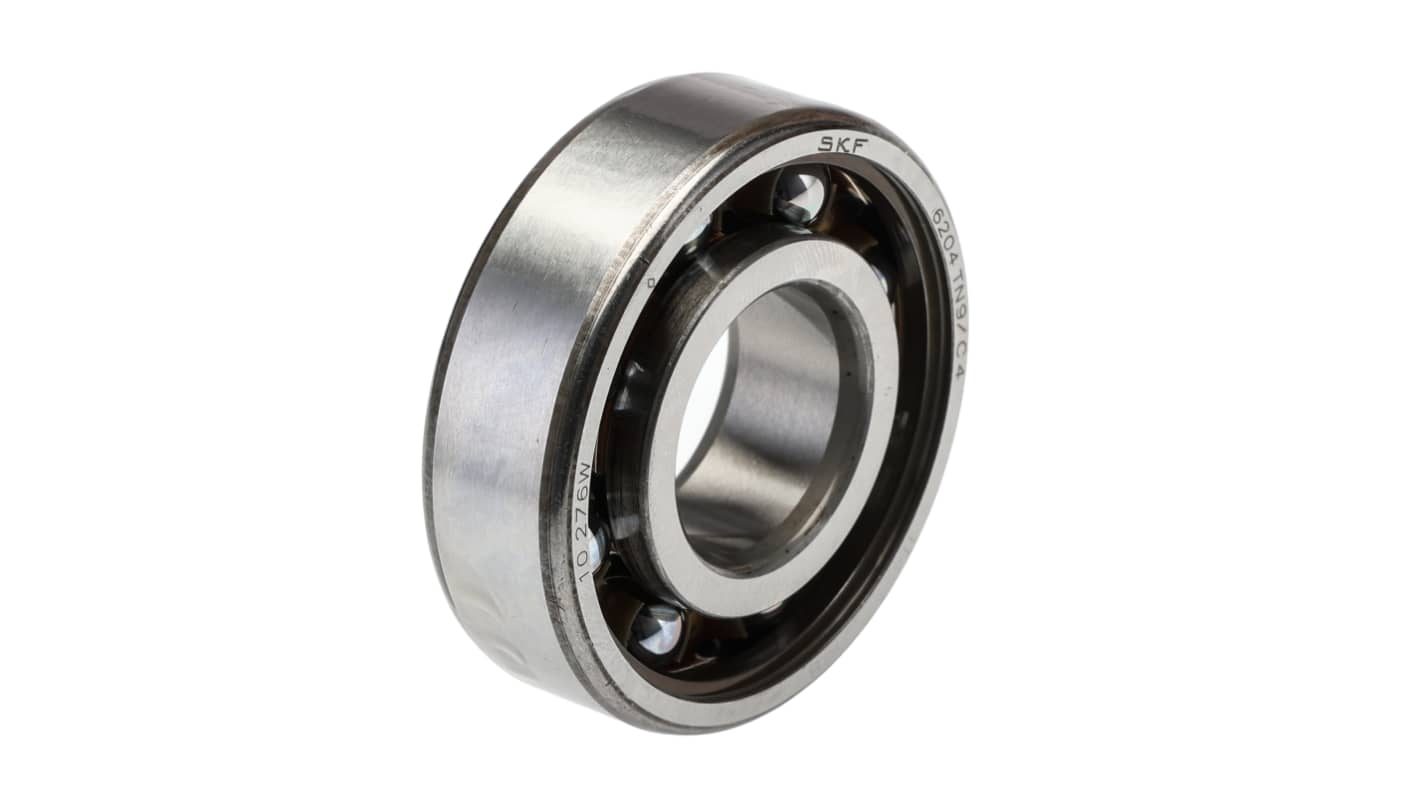

SKF 6204 TN9/C4 1 Row Ball Bearing - 20 mm ID, 47 mm OD
- RS Stock No.:
- 233-0650
- Mfr. Part No.:
- 6204 TN9/C4
- Brand:
- SKF
Subtotal (1 unit)*
£9.55
(exc. VAT)
£11.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £9.55 |
*price indicative
- RS Stock No.:
- 233-0650
- Mfr. Part No.:
- 6204 TN9/C4
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 20 mm | |
| Product Type | Ball Bearing | |
| Outside Diameter | 47 mm | |
| Race Width | 14mm | |
| Race Material | Steel | |
| Cage Material | Non-Metallic | |
| Ball Material | Steel | |
| End Type | Open | |
| Number of Rows | 1 | |
| Static Load Rating | 6.55kN | |
| Internal Clearance | C4 | |
| Dynamic Load Rating | 13.5kN | |
| Series | 6204 | |
| Bore Type | Parallel | |
| Standards/Approvals | No | |
| Limiting Speed | 20000rpm | |
| Race Type | Plain | |
| Bearing Type | Single Row Deep Groove Ball | |
| Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 20 mm | ||
Product Type Ball Bearing | ||
Outside Diameter 47 mm | ||
Race Width 14mm | ||
Race Material Steel | ||
Cage Material Non-Metallic | ||
Ball Material Steel | ||
End Type Open | ||
Number of Rows 1 | ||
Static Load Rating 6.55kN | ||
Internal Clearance C4 | ||
Dynamic Load Rating 13.5kN | ||
Series 6204 | ||
Bore Type Parallel | ||
Standards/Approvals No | ||
Limiting Speed 20000rpm | ||
Race Type Plain | ||
Bearing Type Single Row Deep Groove Ball | ||
- COO (Country of Origin):
- BG
SKF 2 Light Series Ball Bearing, 20mm Inside Diameter, 47mm Outside Diameter - 6204 TN9/C4
This ball bearing is designed for high-performance applications, featuring an inner diameter of 20mm and an outer diameter of 47mm. It is a single row deep groove ball bearing, known for its ability to accommodate both radial and axial loads. The open type design allows for easy maintenance and offers versatility for various mechanical setups.
Features & Benefits
• Designed for high load capacity handles up to 13.5kN for robust performance
• Manufactured from steel ensures durability and strength in demanding conditions
• Utilises a non-metallic cage reduces friction for smoother operation
• Suitable for parallel bore types enhances compatibility and easy integration
• Open type configuration allows for easy lubrication access and simplifies maintenance
Applications
• Used with electric motors for improved efficiency
• Ideal for automotive in wheel bearings
• Utilised in industrial machinery for smooth operation
• Applied in conveyor systems to support movement
• Effective in robotics for precision control mechanisms
What load capacities can this bearing support in operational settings?
The bearing provides a static load rating of 6.55 kN and a dynamic load rating of 13.5 kN, making it suitable for applications with demanding load requirements.
How does the open type design benefit maintenance?
The open type allows for straightforward access for lubrication, helping to prolong the bearing's service life and maintain optimal performance under various working conditions.
What materials are utilised in the construction of this bearing?
The bearing is primarily made of steel for both the races and balls, complemented by a non-metallic cage that reduces friction while enhancing performance and durability.
How does the C4 clearance specification affect the bearing’s performance?
C4 clearance allows for greater operational play, making it suitable for applications that experience thermal expansion or misalignment, ensuring smooth functioning even under variable conditions.
