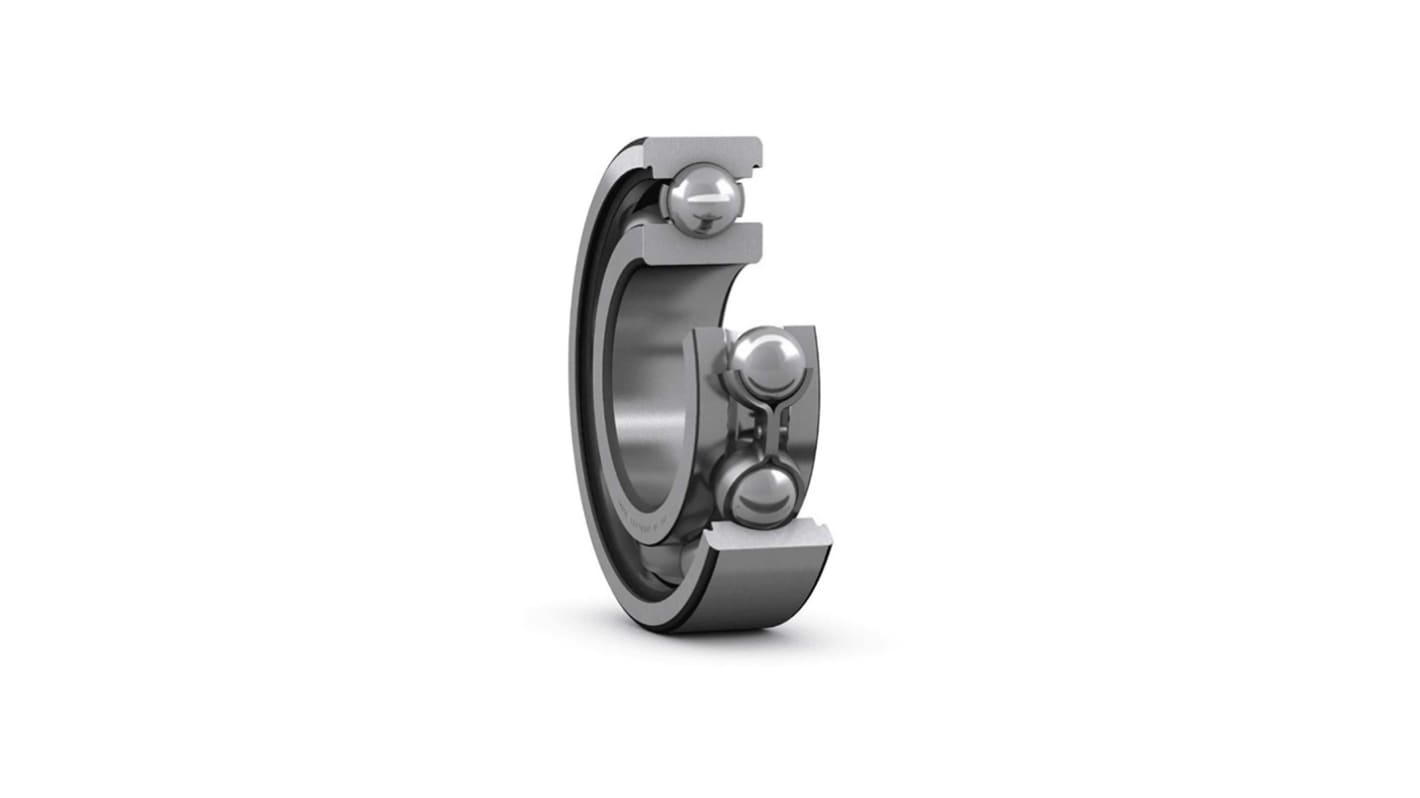

SKF 16005 Single Row Deep Groove Ball Bearing- Open Type 25mm I.D, 47mm O.D
- RS Stock No.:
- 209-1832
- Mfr. Part No.:
- 16005
- Brand:
- SKF
Subtotal (1 unit)*
£11.17
(exc. VAT)
£13.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 81 unit(s) ready to ship
- Plus 33 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £11.17 |
*price indicative
- RS Stock No.:
- 209-1832
- Mfr. Part No.:
- 16005
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 25mm | |
Outside Diameter | 47mm | |
Race Width | 8mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 4.75kN | |
Dynamic Load Rating | 8.06kN | |
Bore Type | Parallel | |
Bearing Series | 0 Extra Light | |
Partial Bearing Code | 16005 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 25mm | ||
Outside Diameter 47mm | ||
Race Width 8mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 4.75kN | ||
Dynamic Load Rating 8.06kN | ||
Bore Type Parallel | ||
Bearing Series 0 Extra Light | ||
Partial Bearing Code 16005 | ||
- COO (Country of Origin):
- IT
SKF Ball Bearing, Deep-Groove Bearing Type, 25mm ID, 47mm OD - 16005
To keep your system on a roll, fit this single-row ball bearing from SKF to your machinery. It has a deep-groove design for smoother running with minimal noise and heat generation. It can support radial and axial loads in both directions and handles super-fast rotation thanks to a limiting speed of 20,000rpm. This means you can rely on it to take the strain of high-performance setups. A precision-engineered cylindrical bore means it slips easily onto a shaft to make installation a breeze. Dimensions of 25mm (inside diameter) and 47mm (outside diameter) mean it's small enough to fit into electric appliances, fans and crankshafts.
Features & Benefits
• Strong steel bearing is durable and low-maintenance
• Open-ended design makes it a piece of cake to lubricate
• Dynamic rating of 8.06kN indicates it can cope with heavy loads for long periods
• Open-ended design makes it a piece of cake to lubricate
• Dynamic rating of 8.06kN indicates it can cope with heavy loads for long periods
Applications
• Electric motors and generators
• Agricultural machines
• Material handling
• Industrial transmissions
• Pumps and fans
• Agricultural machines
• Material handling
• Industrial transmissions
• Pumps and fans
What's the internal clearance of this ball bearing?
This ball bearing has a standard CN radial clearance, ensuring it moves easily and evenly with every turn when it's used in normal operating conditions.
