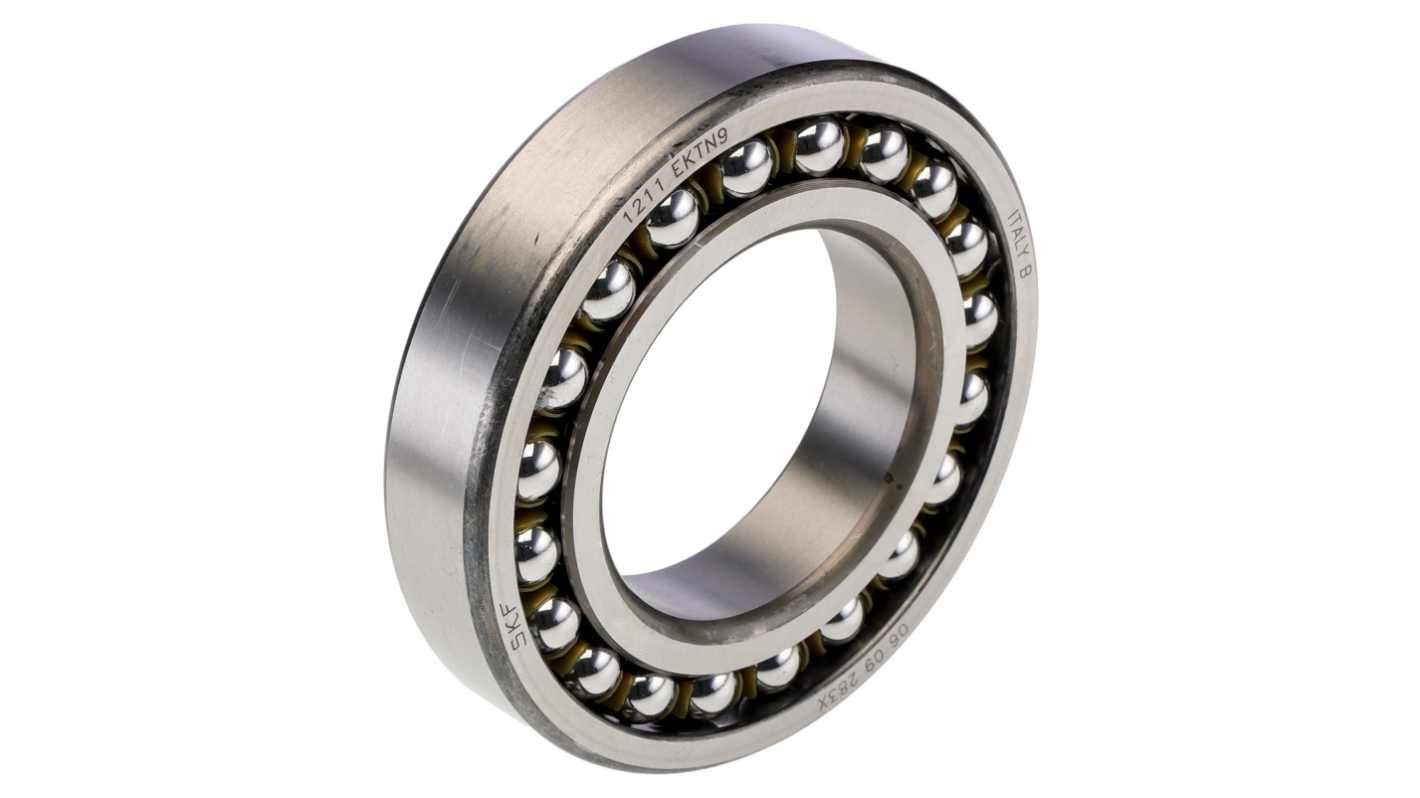

SKF 1211 EKTN9 Self Aligning Ball Bearing- Open Type 55mm I.D, 100mm O.D
- RS Stock No.:
- 209-1760
- Mfr. Part No.:
- 1211 EKTN9
- Brand:
- SKF
Subtotal (1 unit)*
£64.29
(exc. VAT)
£77.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £64.29 |
*price indicative
- RS Stock No.:
- 209-1760
- Mfr. Part No.:
- 1211 EKTN9
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 55mm | |
Outside Diameter | 100mm | |
Race Width | 21mm | |
Ball Bearing Type | Self Aligning Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 2 | |
Static Load Rating | 10.6kN | |
Dynamic Load Rating | 27.6kN | |
Clearance Code | CN | |
Bore Type | Tapered | |
Bearing Series | 2 Light | |
Model Number p | 1211 | |
Partial Bearing Code | 1211 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 55mm | ||
Outside Diameter 100mm | ||
Race Width 21mm | ||
Ball Bearing Type Self Aligning Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 2 | ||
Static Load Rating 10.6kN | ||
Dynamic Load Rating 27.6kN | ||
Clearance Code CN | ||
Bore Type Tapered | ||
Bearing Series 2 Light | ||
Model Number p 1211 | ||
Partial Bearing Code 1211 | ||
SKF Ball Bearing, 55mm Inside Diameter, 100mm Outside Diameter - 1211 EKTN9
This ball bearing is a self-aligning type specifically designed to enhance mechanical stability in applications requiring robust support. With an inside diameter of 55mm and an outside diameter of 100mm, it features a tapered bore that optimally accommodates axial loads. The 1211 EKTN9 series utilises steel for both the bearing and balls, ensuring durability and efficiency in a variety of industrial applications.
Features & Benefits
• Designed for dual-row operation, allowing for enhanced load distribution
• Equipped with an open type sealing arrangement for easy maintenance
• Tapered bore design supports improved alignment capabilities
• Features a static load rating of 10.6 kN for reliable performance
• Dynamic load rating up to 27.6 kN ensures dependable operation
• Constructed from high-quality steel for greater longevity
• Equipped with an open type sealing arrangement for easy maintenance
• Tapered bore design supports improved alignment capabilities
• Features a static load rating of 10.6 kN for reliable performance
• Dynamic load rating up to 27.6 kN ensures dependable operation
• Constructed from high-quality steel for greater longevity
Applications
• Used in automatic machinery for precise motion control
• Ideal for electric motors needing dependable rotation
• Perfect for mechanical systems with varying axial loads
• Utilised in assembly lines requiring continuous operation
• Ideal for electric motors needing dependable rotation
• Perfect for mechanical systems with varying axial loads
• Utilised in assembly lines requiring continuous operation
What are the benefits of the tapered bore design in this bearing?
The tapered bore promotes effective alignment during operation, allowing for greater flexibility in radial positioning. This reduces the risk of misalignment that can lead to premature wear or failure.
How does the load rating affect the performance of this bearing?
Load ratings indicate the maximum conditions under which the bearing can run efficiently. A higher dynamic load rating means it can withstand greater forces during operation, which is critical in high-impact environments.
What considerations should be taken when installing this type of bearing?
Ensure that the mounting surfaces are clean and free from debris. It's important to follow specific tolerances and fitting guidelines to avoid misalignment and to optimise performance.
Is routine maintenance necessary for this type of bearing?
Regular inspection is recommended to monitor wear and tear. The open type design facilitates easy lubrication, ensuring its long-term operational efficiency and reliability.
