SKF W 61906-2RS1 Single Row Deep Groove Ball Bearing- Both Sides Sealed 30mm I.D, 47mm O.D
- RS Stock No.:
- 208-0469
- Mfr. Part No.:
- W 61906-2RS1
- Brand:
- SKF
Subtotal (1 unit)*
£96.37
(exc. VAT)
£115.64
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £96.37 |
*price indicative
- RS Stock No.:
- 208-0469
- Mfr. Part No.:
- W 61906-2RS1
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 30mm | |
Outside Diameter | 47mm | |
Race Width | 9mm | |
Ball Bearing Type | Single Row Deep Groove Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Stainless Steel | |
Ball Material | Stainless Steel | |
Cage Material | Sheet Metal | |
Number of Rows | 1 | |
Static Load Rating | 5kN | |
Dynamic Load Rating | 6.24kN | |
Bore Type | Parallel | |
Bearing Series | 1 Extra Light Thrust | |
Partial Bearing Code | 61906 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 30mm | ||
Outside Diameter 47mm | ||
Race Width 9mm | ||
Ball Bearing Type Single Row Deep Groove Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Stainless Steel | ||
Ball Material Stainless Steel | ||
Cage Material Sheet Metal | ||
Number of Rows 1 | ||
Static Load Rating 5kN | ||
Dynamic Load Rating 6.24kN | ||
Bore Type Parallel | ||
Bearing Series 1 Extra Light Thrust | ||
Partial Bearing Code 61906 | ||
- COO (Country of Origin):
- JP

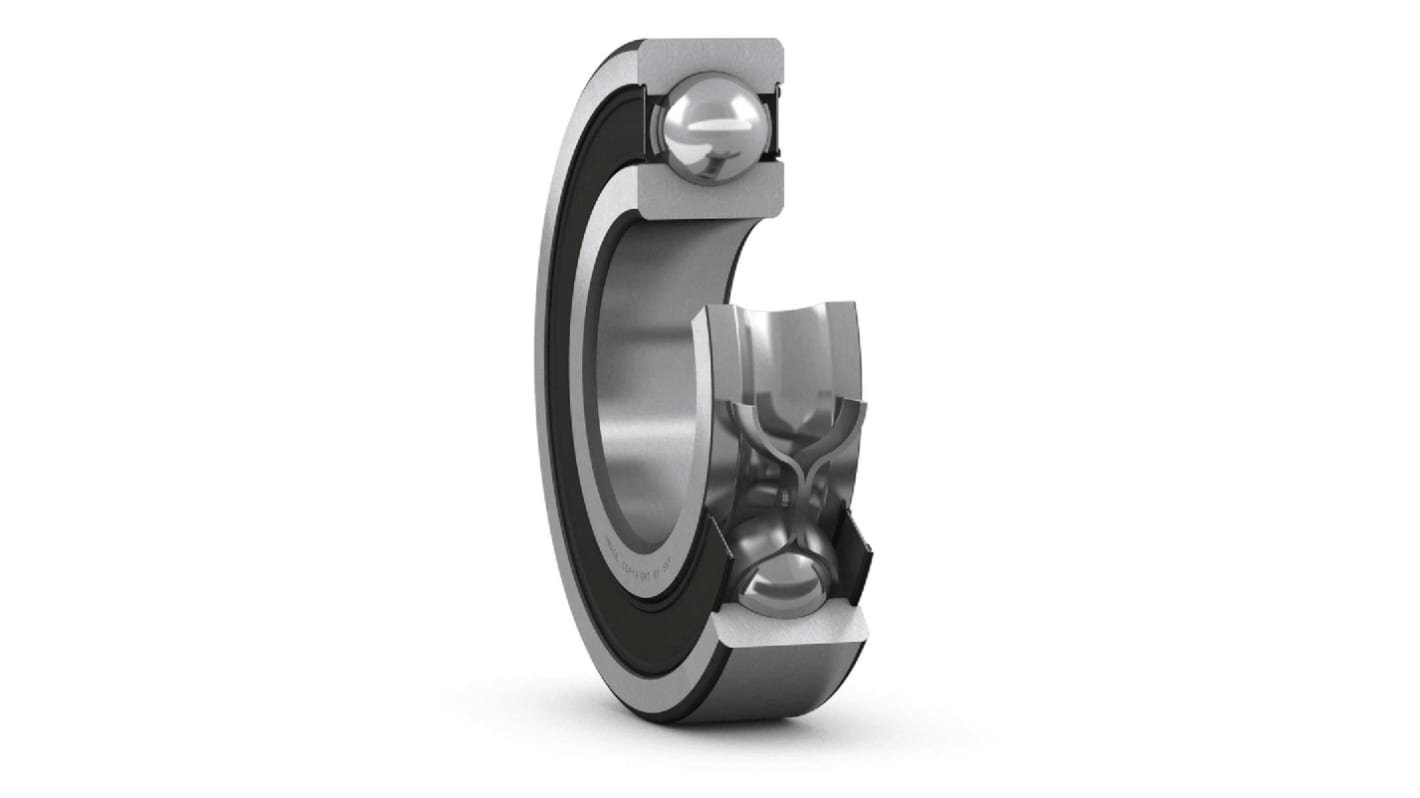

The SKF Deep groove ball bearing is particularly versatile. It has 30mm bore diameter and 47mm outside diameter. This is suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes.
Single row design
Cylindrical bore type
Steel bearing
Cylindrical bore type
Steel bearing
