SKF 1311 ETN9/C3 Self Aligning Ball Bearing- Open Type 55mm I.D, 120mm O.D
- RS Stock No.:
- 207-9973
- Mfr. Part No.:
- 1311 ETN9/C3
- Brand:
- SKF
Subtotal (1 unit)*
£119.00
(exc. VAT)
£142.80
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £119.00 |
*price indicative
- RS Stock No.:
- 207-9973
- Mfr. Part No.:
- 1311 ETN9/C3
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 55mm | |
Outside Diameter | 120mm | |
Race Width | 29mm | |
Ball Bearing Type | Self Aligning Ball Bearing | |
Sealing Arrangement | Open Type | |
Bearing Clearance | C3 | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 2 | |
Static Load Rating | 18kN | |
Dynamic Load Rating | 50.7kN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 1311 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 55mm | ||
Outside Diameter 120mm | ||
Race Width 29mm | ||
Ball Bearing Type Self Aligning Ball Bearing | ||
Sealing Arrangement Open Type | ||
Bearing Clearance C3 | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 2 | ||
Static Load Rating 18kN | ||
Dynamic Load Rating 50.7kN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 1311 | ||
- COO (Country of Origin):
- MY

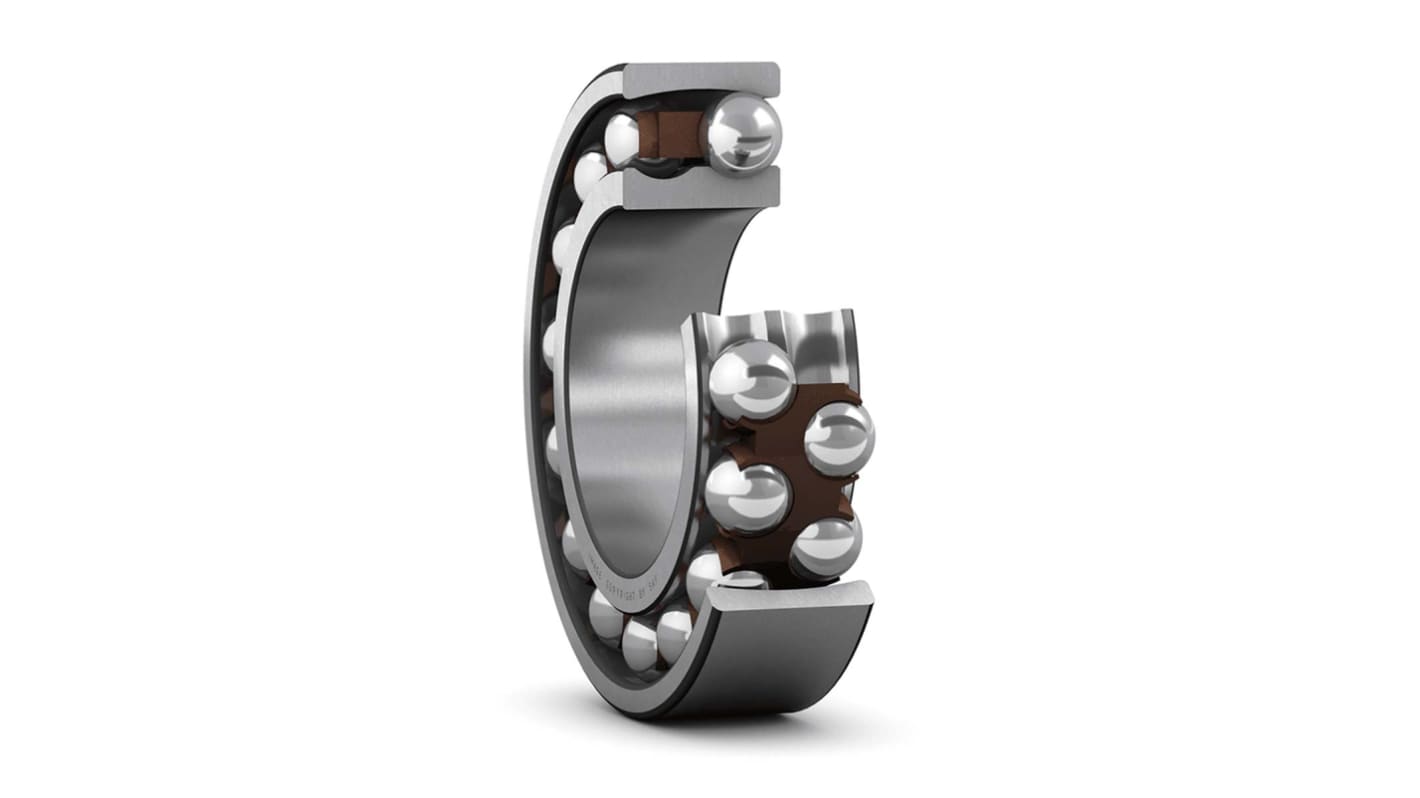

The SKF self-aligning ball bearings with two rows of balls having bore diameter 55mm and outside diameter 120mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.
Cylindrical type bore
Steel bearing
Steel bearing
