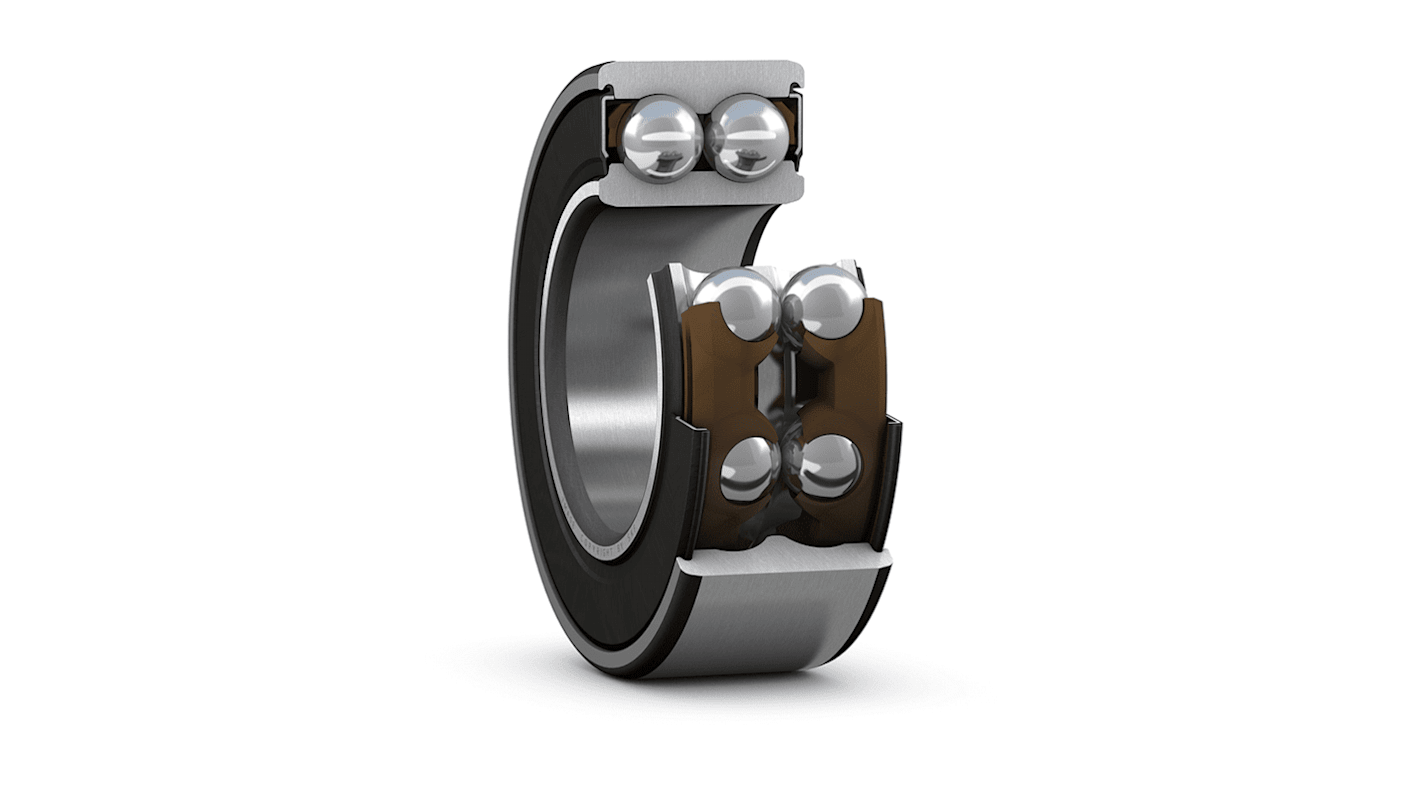

SKF 3305 A-2RS1TN9/MT33 Double Row Angular Contact Ball Bearing- Both Sides Sealed 25mm I.D, 62mm O.D
- RS Stock No.:
- 207-9921
- Mfr. Part No.:
- 3305 A-2RS1TN9/MT33
- Brand:
- SKF
Subtotal (1 unit)*
£79.63
(exc. VAT)
£95.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 13 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £79.63 |
*price indicative
- RS Stock No.:
- 207-9921
- Mfr. Part No.:
- 3305 A-2RS1TN9/MT33
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Inside Diameter | 25mm | |
Outside Diameter | 62mm | |
Race Width | 25.4mm | |
Ball Bearing Type | Double Row Angular Contact Ball Bearing | |
Sealing Arrangement | Both Sides Sealed | |
Bearing Clearance | CN | |
Material | Steel | |
Ball Material | Steel | |
Cage Material | Non-metallic | |
Number of Rows | 2 | |
Static Load Rating | 22kN | |
Dynamic Load Rating | 32.5kN | |
Clearance Code | CN | |
Bore Type | Parallel | |
Bearing Series | 3 Medium | |
Partial Bearing Code | 3305 | |
Select all | ||
---|---|---|
Brand SKF | ||
Inside Diameter 25mm | ||
Outside Diameter 62mm | ||
Race Width 25.4mm | ||
Ball Bearing Type Double Row Angular Contact Ball Bearing | ||
Sealing Arrangement Both Sides Sealed | ||
Bearing Clearance CN | ||
Material Steel | ||
Ball Material Steel | ||
Cage Material Non-metallic | ||
Number of Rows 2 | ||
Static Load Rating 22kN | ||
Dynamic Load Rating 32.5kN | ||
Clearance Code CN | ||
Bore Type Parallel | ||
Bearing Series 3 Medium | ||
Partial Bearing Code 3305 | ||
SKF 3 Medium Series Angular Contact Ball Bearing, 25mm Inside Diameter, 62mm Outside Diameter - 3305 A-2RS1TN9/MT33
This angular contact ball bearing provides reliable performance for various applications, ensuring precision and efficiency. Featuring a double row design, this sealed angular contact bearing effectively handles both radial and axial loads. With an inside diameter of 25mm and an outside diameter of 62mm, it is constructed from durable steel, making it suitable for heavy-duty industries.
Features & Benefits
• Double row design ensures higher load capacity and reduced wear
• Sealed design prevents contamination and enhances lifespan
• Parallel bore configuration facilitates easy installation
• High dynamic load rating of 32.5kN supports demanding requirements
• Non-metallic cage reduces friction for improved performance
• Standard tolerances ensure compatibility with various machinery
• Sealed design prevents contamination and enhances lifespan
• Parallel bore configuration facilitates easy installation
• High dynamic load rating of 32.5kN supports demanding requirements
• Non-metallic cage reduces friction for improved performance
• Standard tolerances ensure compatibility with various machinery
Applications
• Used for automation equipment for smooth rotational movement
• Ideal for electric motors to manage complex load conditions
• Suitable for mechanical assemblies requiring precise locking mechanisms
• Recommended for robotics to maintain operational reliability under varying loads
• Ideal for electric motors to manage complex load conditions
• Suitable for mechanical assemblies requiring precise locking mechanisms
• Recommended for robotics to maintain operational reliability under varying loads
What sealing arrangement does this bearing feature for durability?
The bearing is sealed on both sides, protecting it from contamination and extending its operational life in harsh environments.
How does the dynamic load rating affect performance?
With a dynamic load rating of 32.5kN, it can efficiently manage high-speed applications, providing reliable performance under significant stress.
What is the significance of the non-metallic cage material?
The non-metallic cage helps reduce friction and weight, enhancing the overall efficiency of the bearing while ensuring smooth operation at higher speeds.
