SKF 2306 K Self Aligning Ball Bearing- Open Type 30mm I.D, 72mm O.D
- RS Stock No.:
- 207-9789
- Mfr. Part No.:
- 2306 K
- Brand:
- SKF
10 In stock - FREE next working day delivery available
Added
Price Each
£34.22
(exc. VAT)
£41.06
(inc. VAT)
| Units | Per unit |
| 1 + | £34.22 |
- RS Stock No.:
- 207-9789
- Mfr. Part No.:
- 2306 K
- Brand:
- SKF
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details

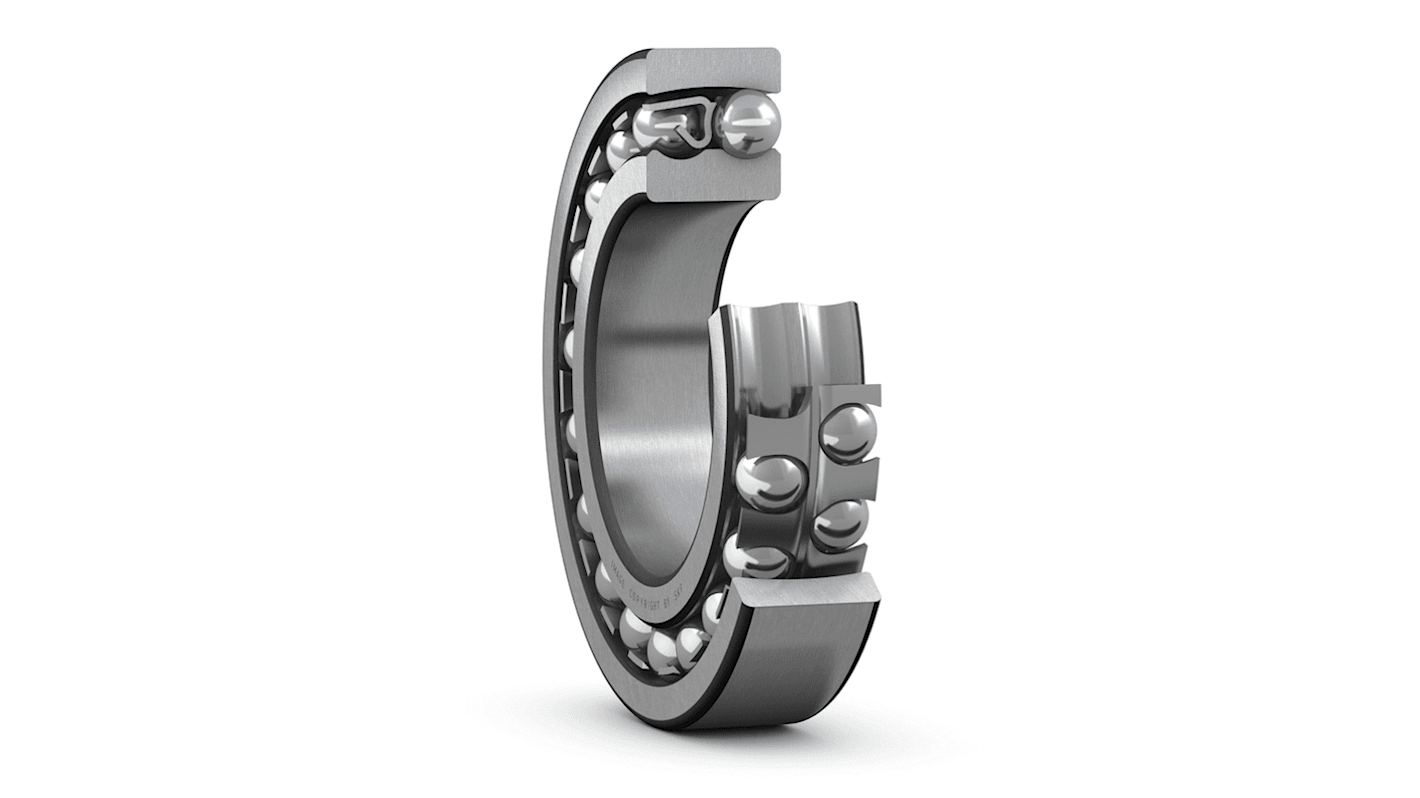

The SKF self-aligning ball bearings with two rows of balls having bore diameter 30mm and outside diameter 72mm. It has a common sphered raceway in the outer ring and two deep uninterrupted raceway grooves in the inner ring. The bearings are insensitive to angular misalignment of the shaft relative to the housing which can be caused by shaft deflection.
Tapered type bore
Steel bearing
Steel bearing
Specifications
Attribute | Value |
|---|---|
| Inside Diameter | 30mm |
| Outside Diameter | 72mm |
| Race Width | 27mm |
| Ball Bearing Type | Self Aligning Ball Bearing |
| Sealing Arrangement | Open Type |
| Bearing Clearance | CN |
| Material | Steel |
| Ball Material | Steel |
| Cage Material | Sheet Metal |
| Number of Rows | 2 |
| Static Load Rating | 8.8kN |
| Dynamic Load Rating | 31.2kN |
| Bore Type | Tapered |
| Bearing Series | 3 Medium |
| Partial Bearing Code | 2306 |
